5-10t Internal Combustion Counterbalance Forklift Truck Operation & Maintenance Manual
5.5 Parking Brake
The parking brake is in an expanding and shoe type, installed at the output end of one intermediate
shaft at the rear side of transmission (Refer to Fig 3-1 Sequence 9). Refer to Fig 5-12 for detailed
structure.
Refer to Fig 5-11 for operation of parking brake. Under the running status with standard load, for
forklift truck to perform parking brake on a ramp, its hand operating force shall not be larger than
300N. The size of pulling force is adjusted in the direction as indicated in the drawing, and B is the
point for measurement of force.

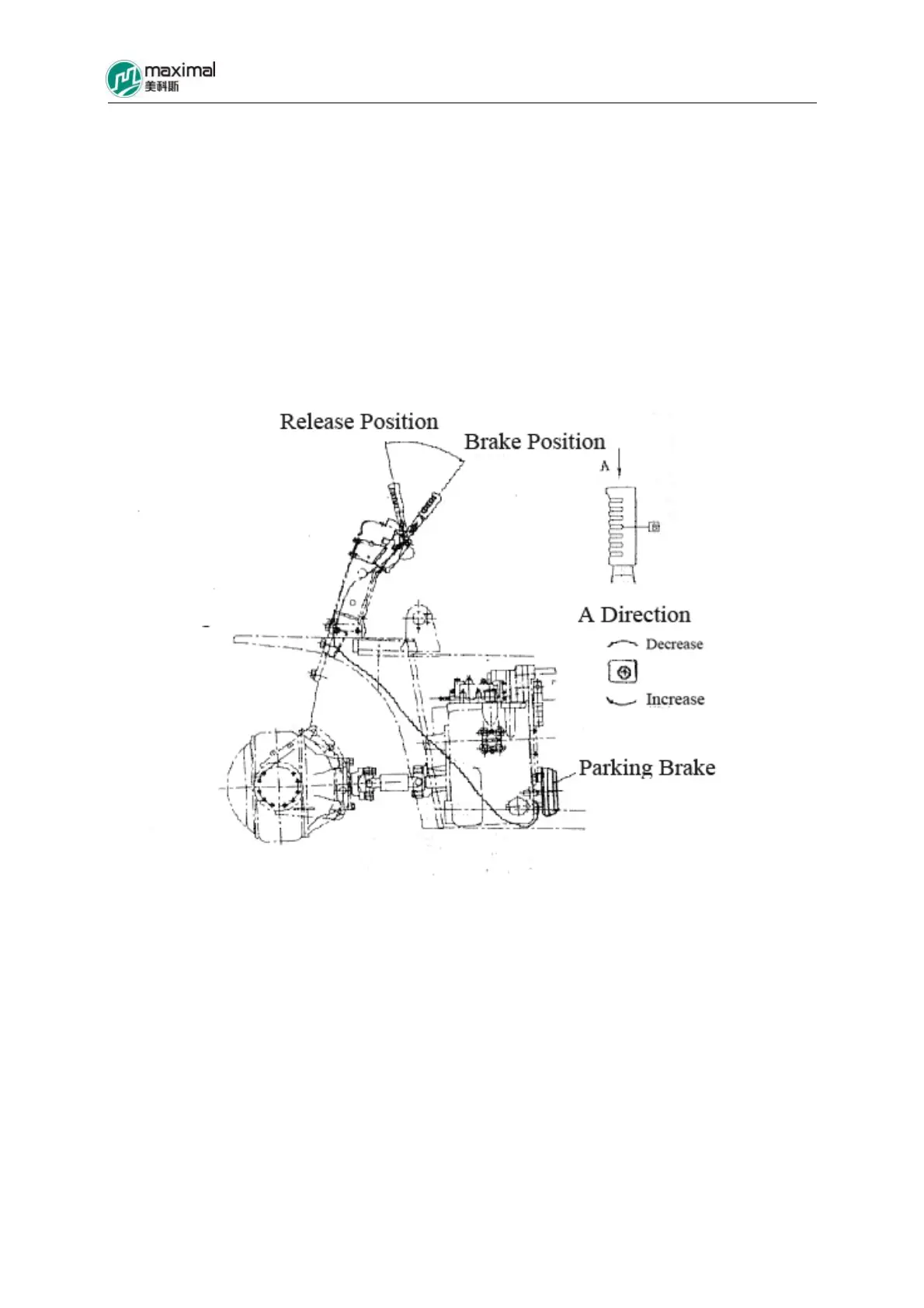

Fig 5-10 Parking Brake Control Device
