5-10t Internal Combustion Counterbalance Forklift Truck Operation & Maintenance Manual

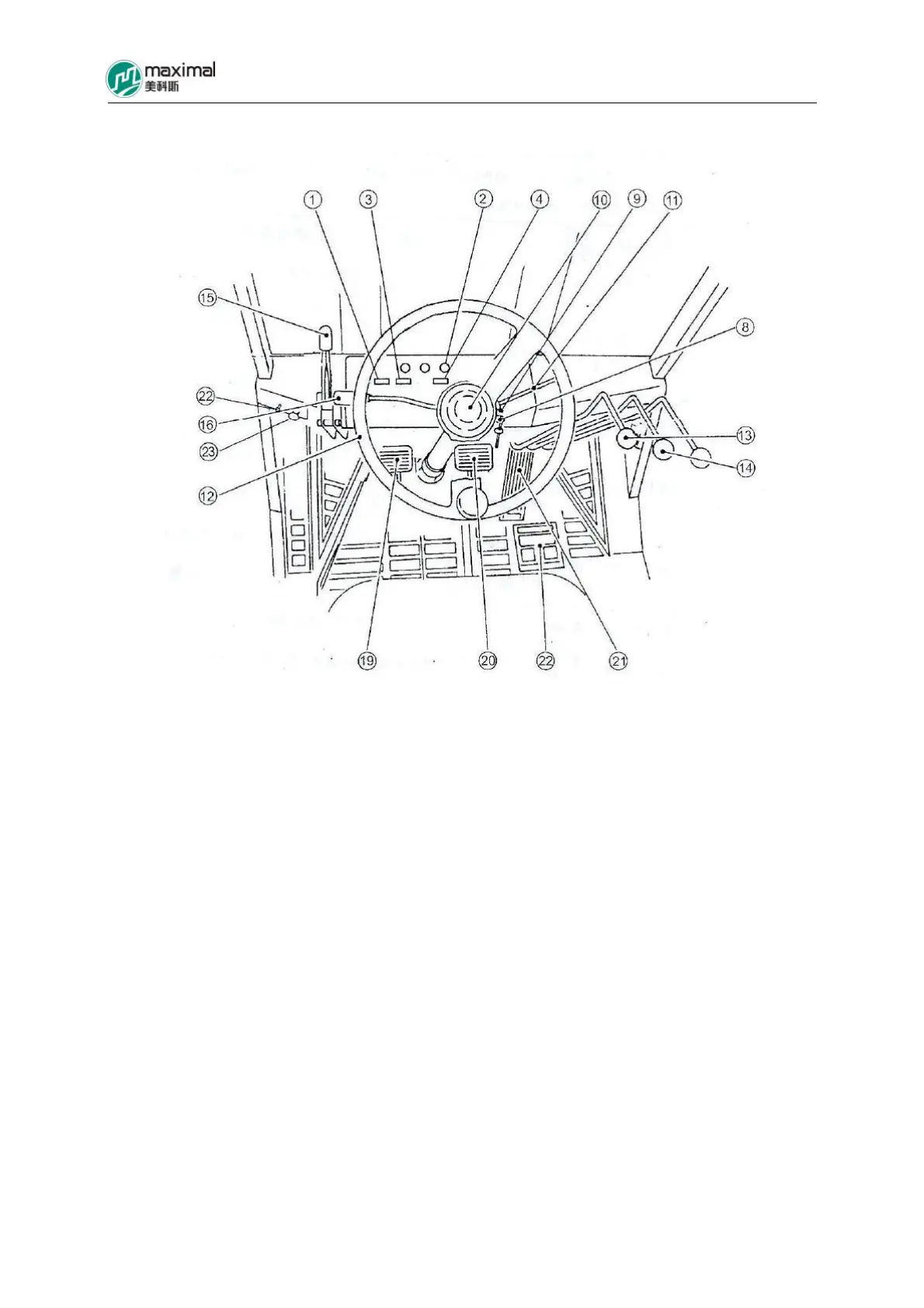

VI. Schematic Drawing of Instruments and Control Layout for Forklift Truck
1. Fuel Gage 13. Lift Handle
2. Indicator Light 14. Tilt Handle
3. Water Temperature Gauge 15. Parking Brake Handle
4. Hour Meter 16. Front-Rear-Gear Handle
8. Ignition Switch 19. Inching Pedal
9. Light Switch 20. Brake Pedal
10. Horn Pushbutton 21. Throttle Accelerator Pedal
11. Steering Light Switch 22. Engine Hood Stay Cable
12. Steering Wheel 23. Engine Stop Stay Cable
