Maxon BMR-CS Series - PUMP BOX CONTROLS; MASTER SELECT SWITCH OPERATION

10
MASTER SELECT
SWITCH
(OFF)
FIG. 10-2C
MASTER SELECT SWITCH

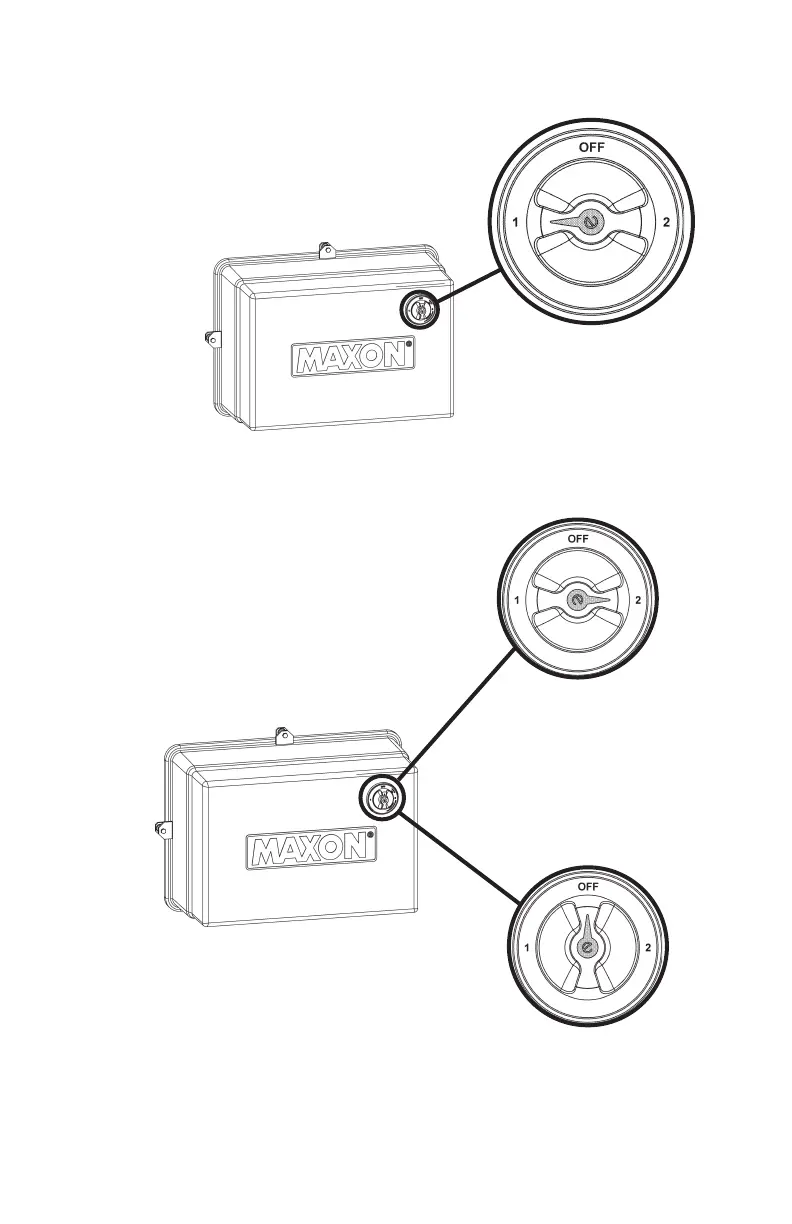

The master select switch (FIGS. 10-1B,
10-2B and 10-2C) applies or removes
battery power from the pump(s). For a single
pump box (FIGS. 10-1A and 10-1B), turn the
MASTER SELECT SWITCH to 1 to operate
Liftgate.
PUMP BOX CONTROLS
SINGLE PUMP BOX
FIG. 10-1A
If the Liftgate is equipped with a dual
pump box (FIG. 10-2A), the MASTER
SELECT SWITCH (FIG. 10-2B) can be
used to connect battery power to either
PUMP 1 or PUMP 2 to power Liftgate. To
remove battery power from PUMPS 1 and
2, turn switch OFF (FIG. 10-2C),
DUAL PUMP BOX
FIG. 10-2A
MASTER SELECT
SWITCH
(PUMP 2 SELECTED)
FIG. 10-2B
MASTER SELECT
SWITCH
(PUMP 1 SELECTED)
FIG. 10-1B
