18

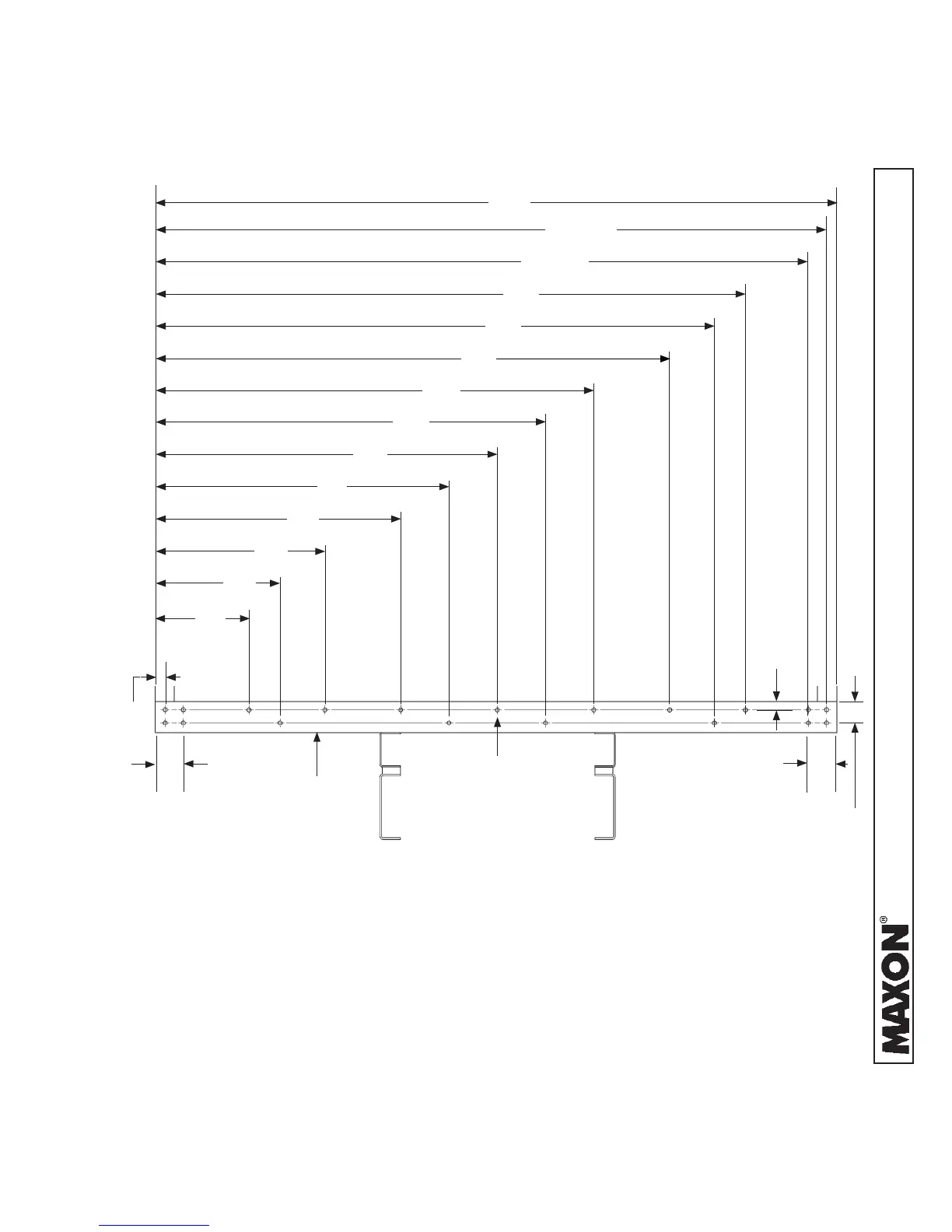

REAR SILL - HOLE LOCATIONS FOR 102” WIDE VEHICLE
FIG. 18-1
STEP 1 - ATTACH EXTENSION PLATE TO VEHICLE -
Continued
1-1/4”
1-1/2”
27”
37”
44”
51”
58”
65”
75”
80”
85”
95-1/2”
100-1/2”
102”
22”
17”
REAR
SILL
USE 9/16” DRILL
(19 PLACES)
6-1/2”
6-1/2”
3-1/8”
