68
PUMP & MOTOR SOLENOID OPERATION (GRAVITY DOWN)
SYSTEM DIAGRAMS

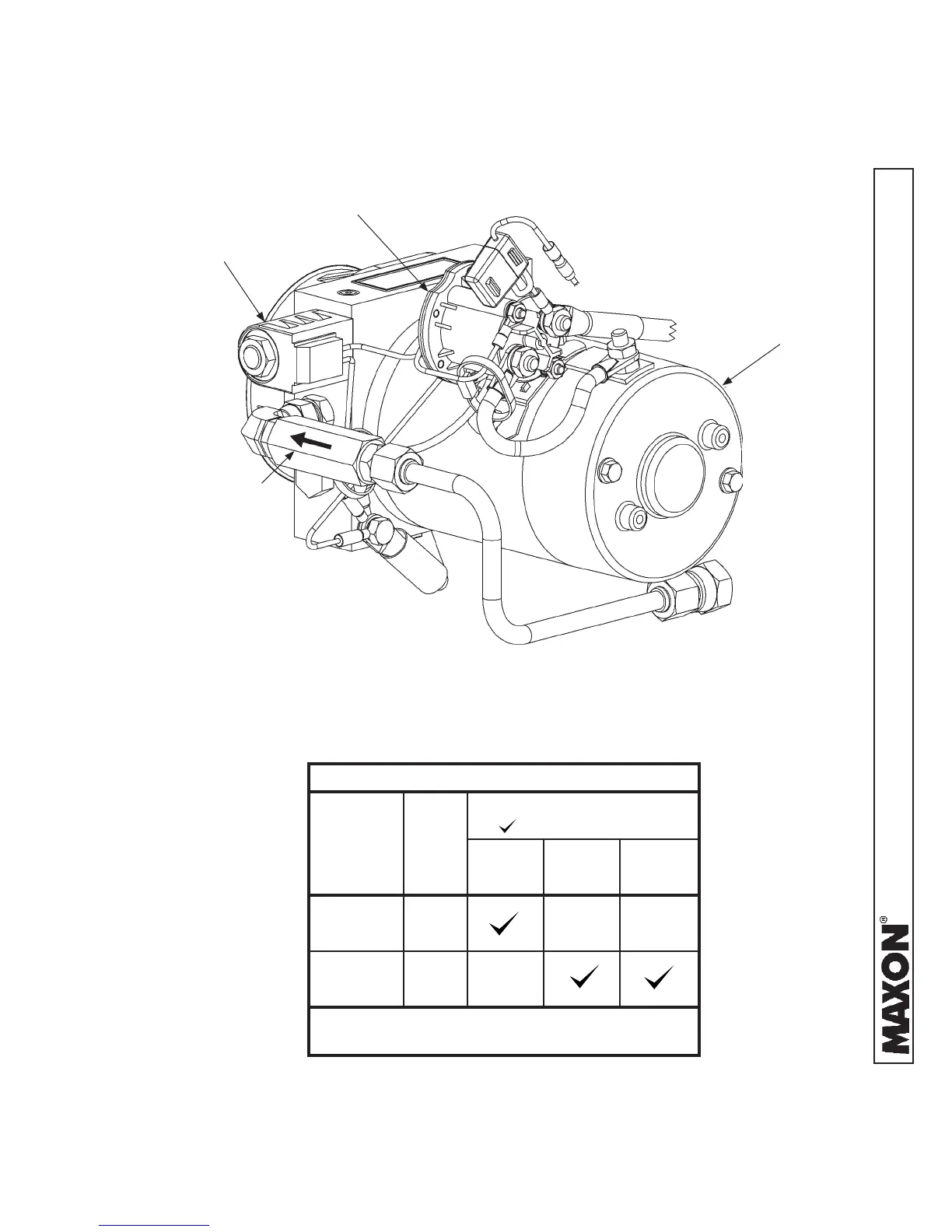

GRAVITY DOWN POWER UNIT
FIG. 68-1
TABLE 68-1
POWER UNIT MOTOR & SOLENOID OPERATION
LIFTGATE
FUNCTION
PORT
SOLENOID OPERATION
( MEANS ENERGIZED)
MOTOR
VALVE
“S2”
LOCK
VALVE
RAISE A - -
LOWER VENT -
REFER TO VALVES SHOWN ON
HYDRAULIC SCHEMATIC
STARTER
SOLENOID
MOTOR
DIRECTION OF
CONTROLLED
FLOW
“S2” VALVE
