Maxon TE-33 - Hydraulic Schematic (Gravity Down)

11921 Slauson Ave. Santa Fe Springs, CA. 90670 (800) 227-4116 FAX (888) 771-7713
69
HYDRAULIC SYSTEM DIAGRAMS

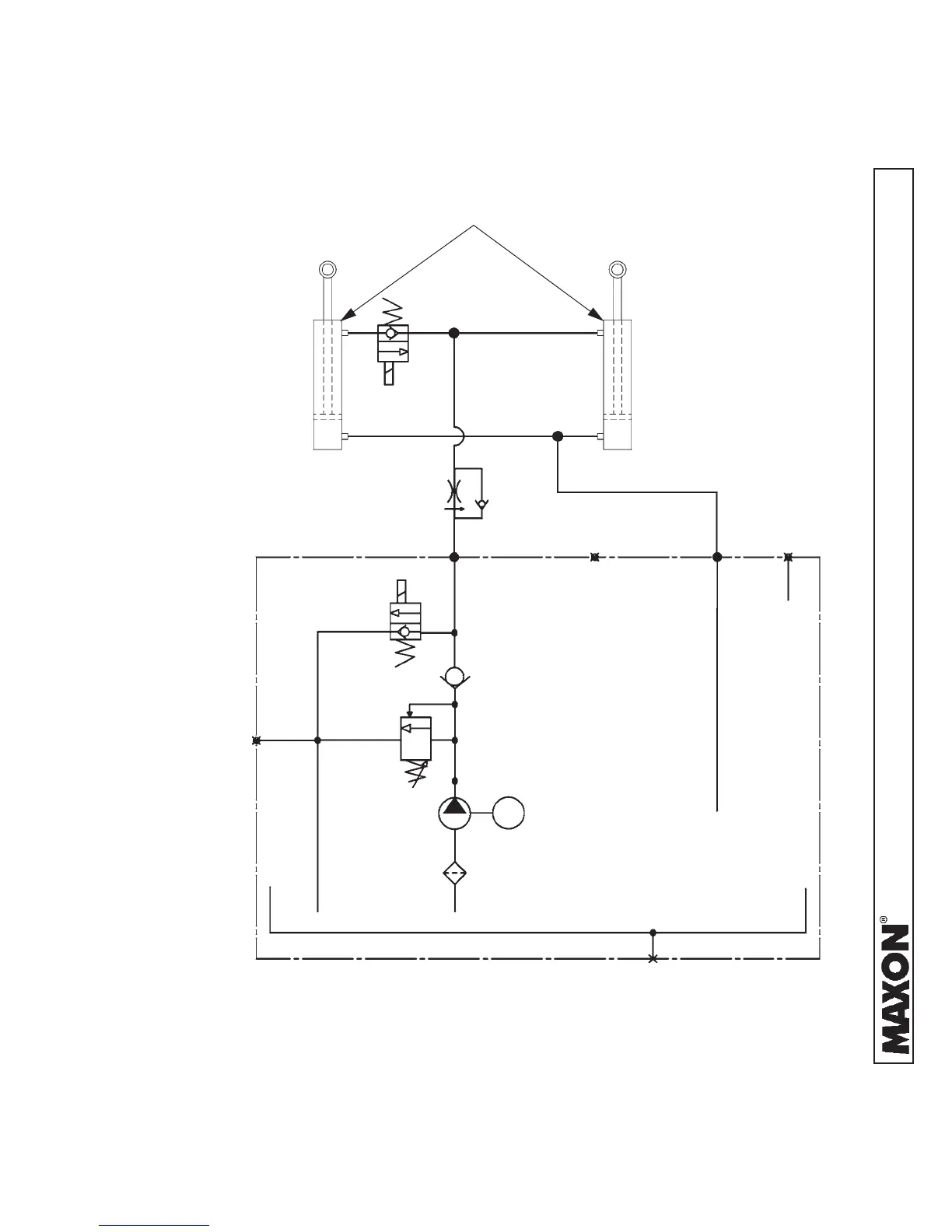

HYDRAULIC SCHEMATIC (GRAVITY DOWN)
FIG. 69-1
M
3 GPM FLOW
CONTROL VALVE
RELIEF VALVE
(SET AT 3250 PSI)
PUMP
MOTOR
(REF)
RESERVOIR
CHECK VALVE
FILTER
DRAIN HOLE (PLUGGED)
HYDRAULIC CYLINDERS
FILL HOLE
(PLUGGED)
HYDRAULIC
LOCK VALVE
VENT
PORT
AUX. HAND
PUMP PORT
(PLUGGED)
PORT B - RETURN
(PLUGGED)
PORT A - RAISE
VALVE “S2”
