Maxon TE-33 - Step 11 - Adjust Platform Opener

11921 Slauson Ave. Santa Fe Springs, CA. 90670 (800) 227-4116 FAX (888) 771-7713
51
HOLE #6
HOLE #5
HOLE #4
HOLE #3
HOLE #2
HOLE #1
42”- 54” OR
38”- 44”
TRUCK BED HEIGHT HOLE NUMBER
52” - 54” HOLE #6
51” - 53” HOLE #5
50” - 52” HOLE #4
49” - 51” HOLE #3
48” - 50” HOLE #2
42” - 49” HOLE #1
40” - 44”
(26”+26” PLATFORM)
HOLE #3
38” - 40”
(24”+24” PLATFORM)
HOLE #1
OPENER
ASSEMBLY
CAP
SCREW
HEX
NUT

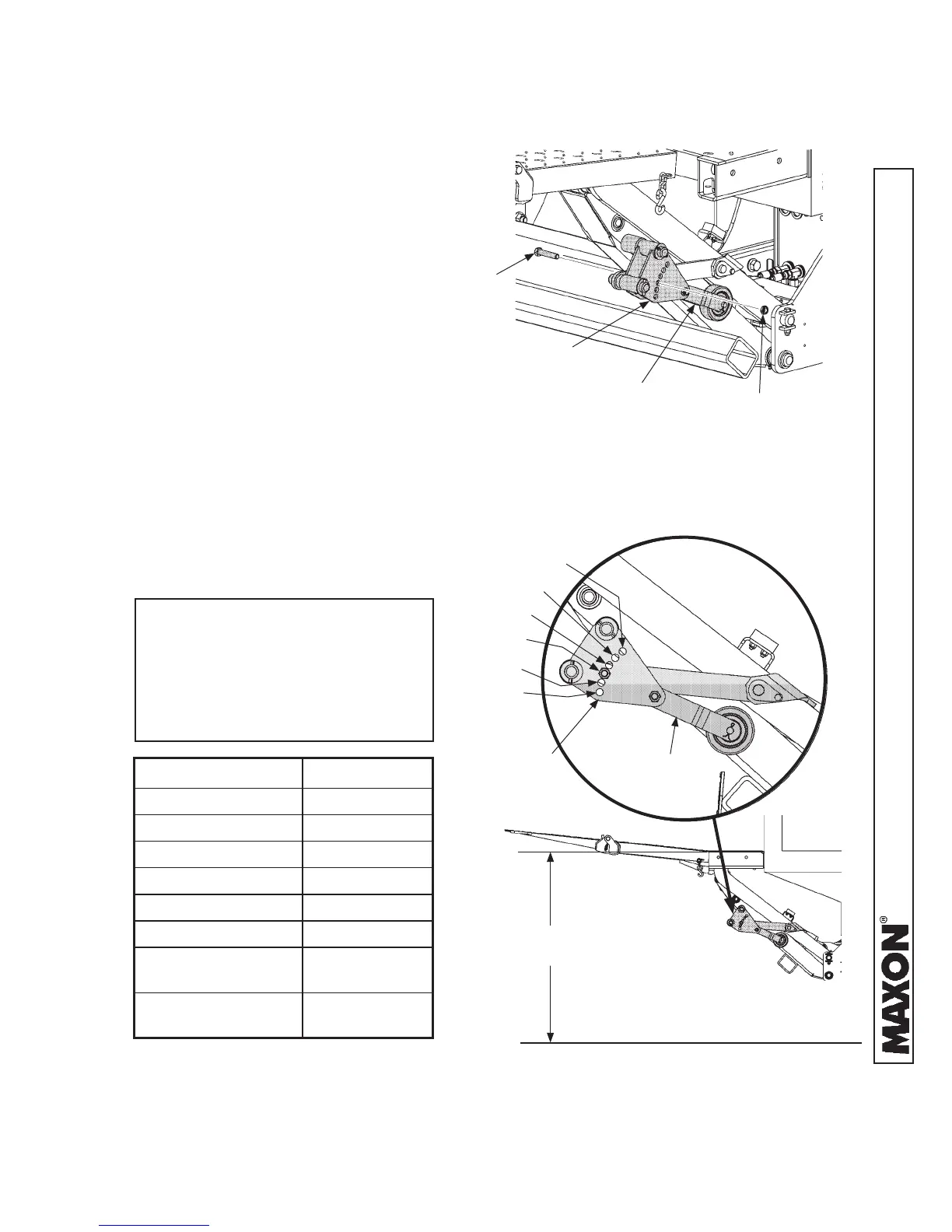

To adjust openers, remove cap screw and
hex nut from opener bracket (FIG. 51-1).
Rotate opener assembly to the correct
hole position (FIG. 51-2 and TABLE 51-1,
FIG. 52-1, and TABLE 52-1). Reinstall cap
screw and nut.
REMOVING BOLT FROM OPENER BRACKET
FIG. 51-1
POSITIONING OPENER FOR
38”- 44” LOW BED HEIGHT OR
42”- 54” HIGH BED HEIGHT
FIG. 51-2
BOLT HOLE CHART FOR 42”- 54”
& 38”- 44” BED HEIGHTS
(ALL PLATFORMS UNLESS NOTED)
TABLE 51-1
OPENER
ASSEMBLY
OPENER
BRACKET
OPENER
BRACKET
STEP 11 - ADJUST PLATFORM OPENER
NOTE: Hole positions are ap-
proximate and may have
to be adjusted up 1 hole
or down 1 hole for best
opener function on your
vehicle.
