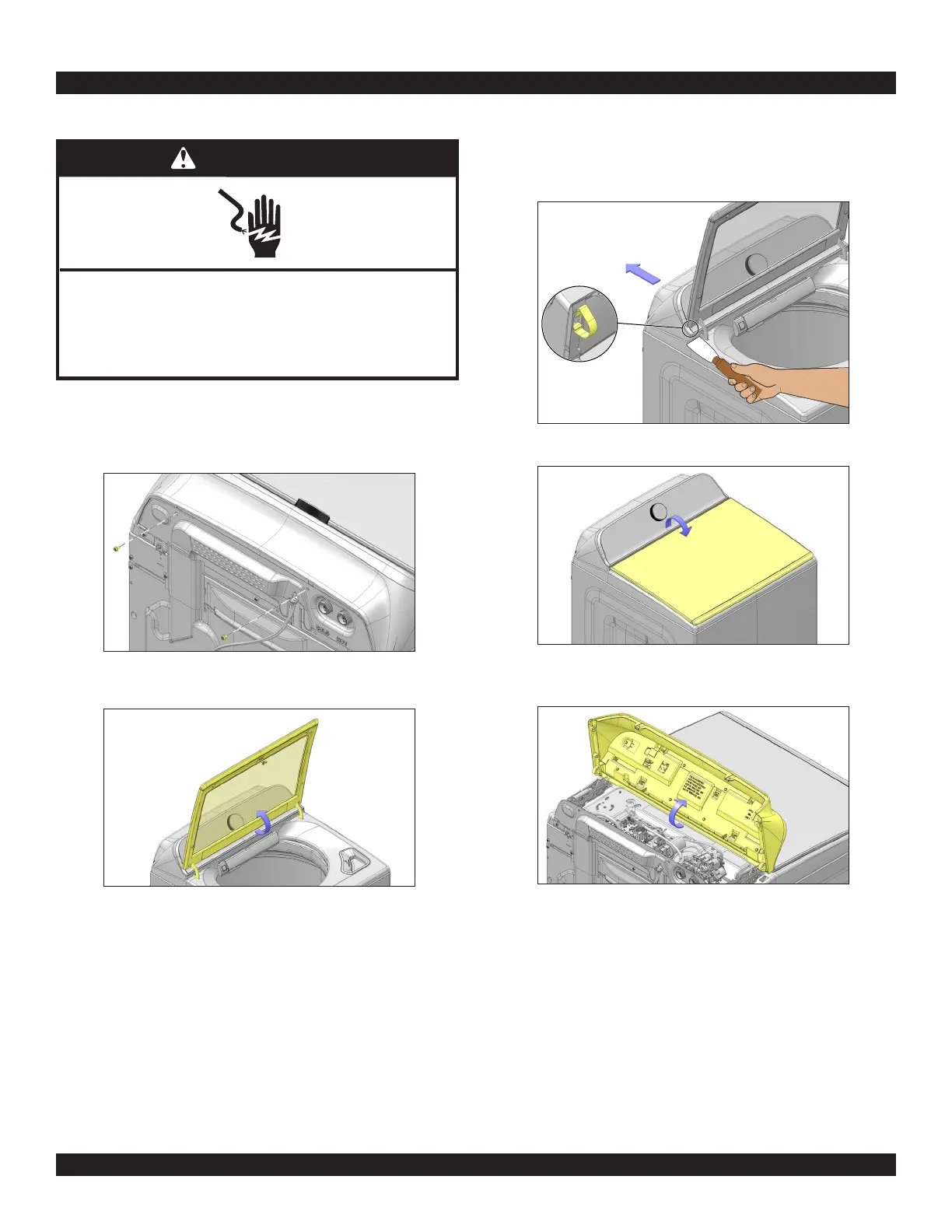

Removing the Console
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
1. Unplug washer or disconnect power.
2. Turn off the water supply to the washer.
3. Remove two (2) 1/4" (6 mm) hex-head/TORX
†®
T20
®
screws from the
rear of the console.
4. Raise the Lid.
5. While pushing back and up on the console, slide thin plastic putty knife
(or thin plastic cake knife) between the console and Top Panel. Depress
the console clip by pushing straight back with the putty knife while
lifting the console to separate from the Top Panel.
6. Close the Lid.
7. Tilt console forward to access.
Push back andPush back and
up on the consoleup on the console
