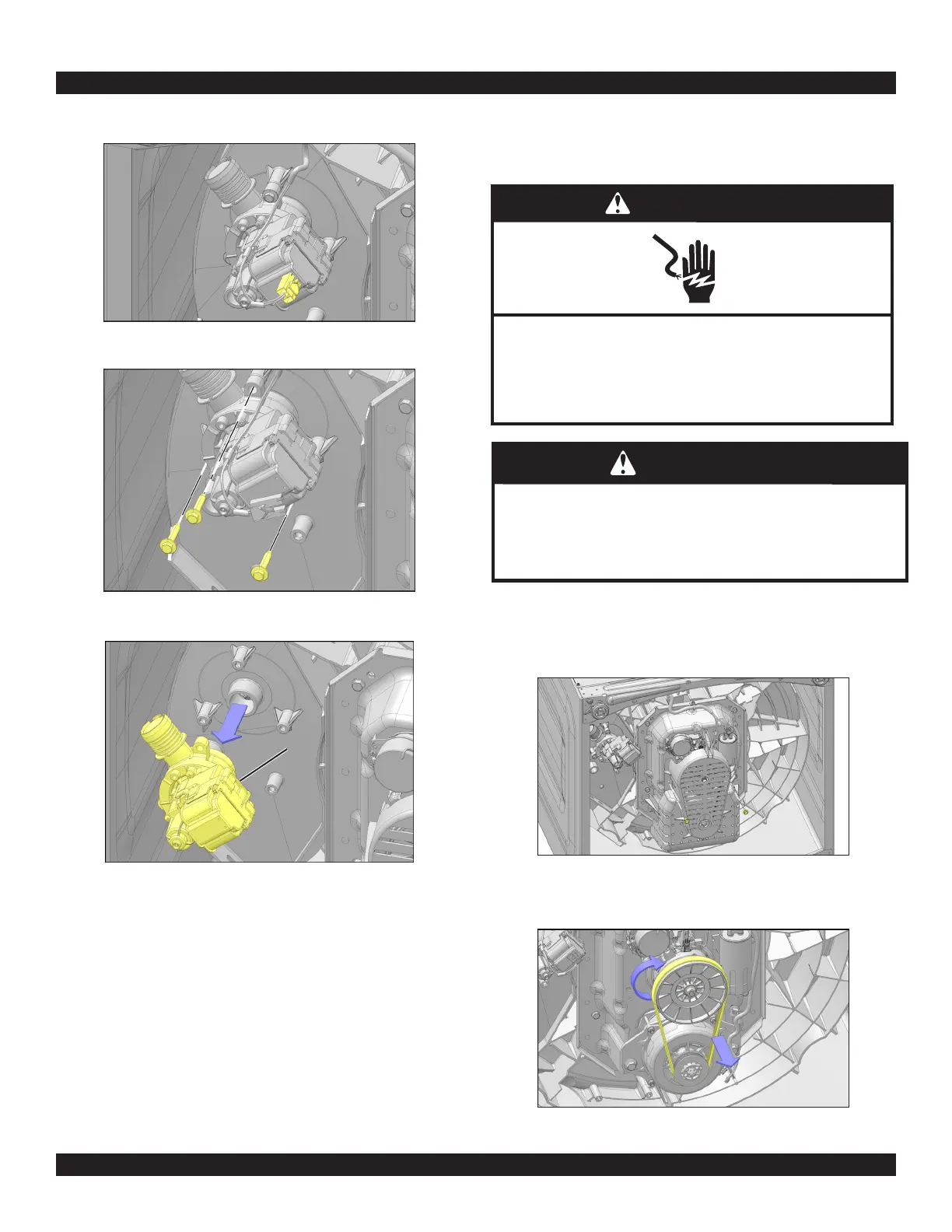

5. Remove the harness from the pump motor.
6. Remove three (3) mounting screws.
7. Remove pump assembly by lifting up and away from the tub.
Removing the Drive Belt and
Motor
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
1. Unplug washer or disconnect power.
2. Turn off the water supply to the washer.
3. Use cardboard or padding to lay washer on the front cabinet.
4. Remove the two (2) mounting screws followed by pulley cover.
5. To remove the belt, pull out on the belt and turn the splutch pulley until
the belt slides off.
AA
A. Drain Pump
WARNING
Excessive Weight Hazard
Use two or more people to move and install washer.
Failure to do so can result in back or other injury.
