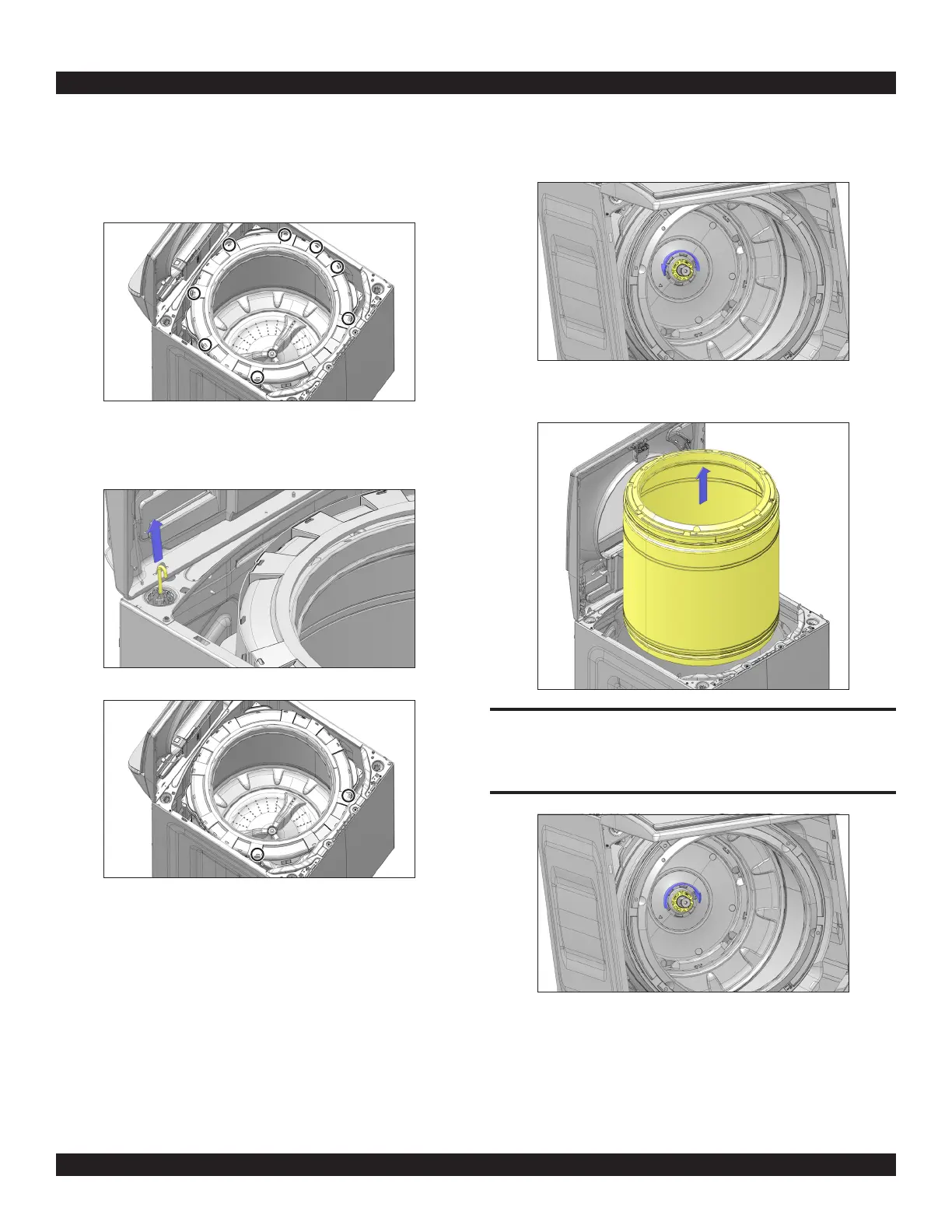

Removing the Tub Ring
NOTE: Due to the increase in size and depth of the tub ring, the working space
between the tub ring and side panel is very limited.
1. Locate the eight tub ring clips as shown in below figure. Unclip each
clip with a “stubby” flat blade screwdriver.
2. Lift the left-rear suspension rod and disconnect it from the rear brace.
This will allow more room to access the two clips located on both sides
of the bleach well. Remove tub ring from washer.
Removing the Basket
1. Using a spanner/wrench and hammer, tap wrench with hammer until nut
becomes loose. Remove spanner nut.
2. Lift the basket out of the washer.
REASSEMBLY NOTE: When re-installing the basket, screw on spanner nut
until it is finger tight. Then, using a mallet or hammer, tighten an additional
3/4 turn (see below figure). Do not apply Loctite® to spanner nut. Applying
Loctite® to the spanner nut will make it virtually impossible to remove
again.
