Maytronics M600 User Manual

5
M600 / ZENIT 60 / ACTIVE X6 / ACTIVE ULTIMATE Robotic Pool Cleaner | User Instructions

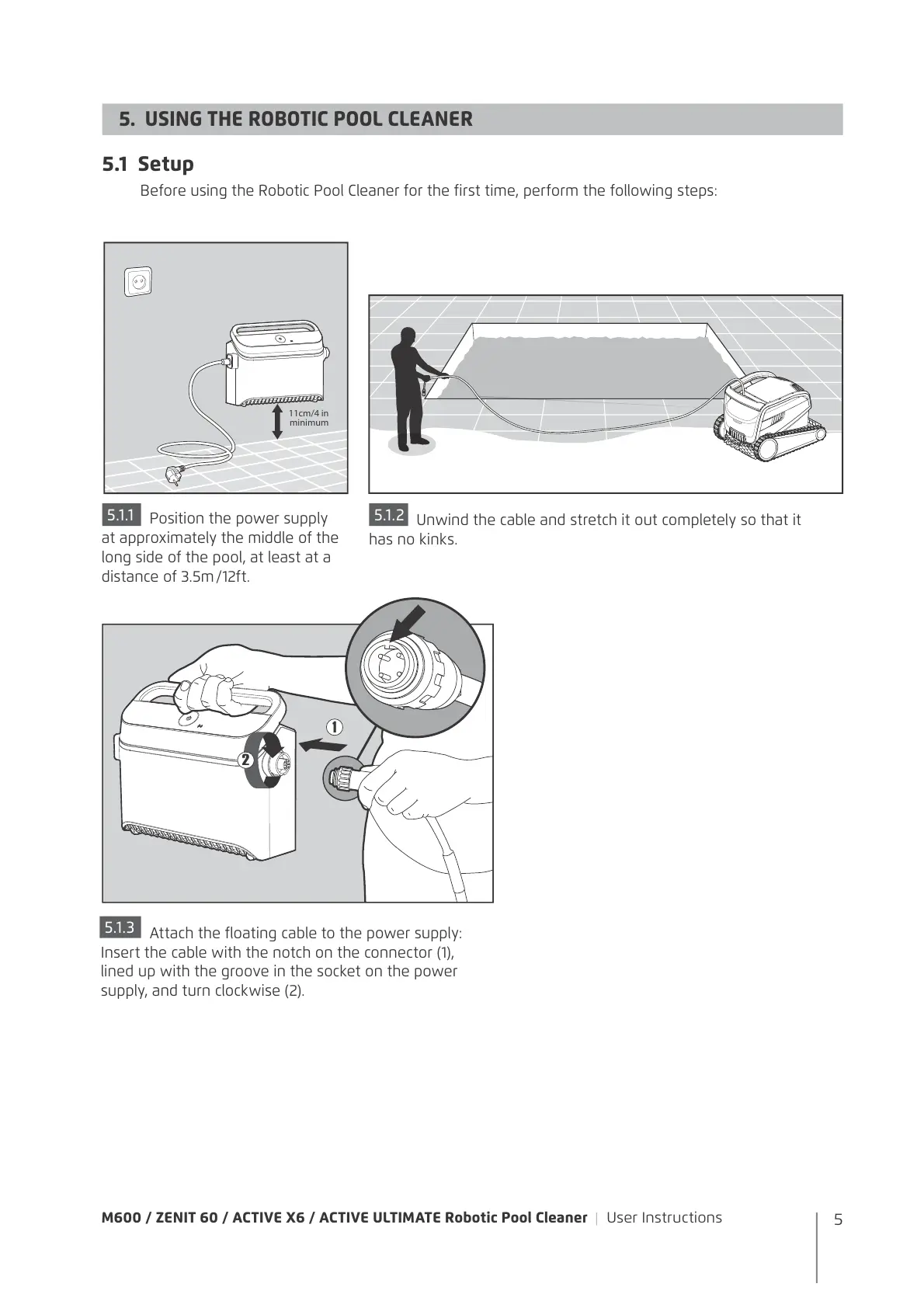

5. USING THE ROBOTIC POOL CLEANER
5.1 Setup
Before using the Robotic Pool Cleaner for the first time, perform the following steps:
Position the power supply
at approximately the middle of the
long side of the pool, at least at a
distance of 3.5m /12ft.
Unwind the cable and stretch it out completely so that it
has no kinks.
Attach the floating cable to the power supply:
Insert the cable with the notch on the connector (1),
lined up with the groove in the socket on the power
supply, and turn clockwise (2).
11cm/4 in
minimum
5.1.25.1.1
5.1.3
1
2

Maytronics M600 Specifications

General

Weight	11.5 kg
App Control	Yes
Caddy Included	Yes
Pool Type	In-ground
Type	Robotic
Warranty	2 years
Cleaning Coverage	Floor, Walls
Cleaning Cycle Time	1.5 / 2 / 2.5 hours
Cable Length	18 meters
Pool Size	Up to 15m
Remote Control	Yes
Filter Type	Multi-layer filtration with fine and ultra-fine filters
