MECHANICAL
01–10-6–1
01–10
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C)
Revised 6/2008 (Ref. No. R108/08)

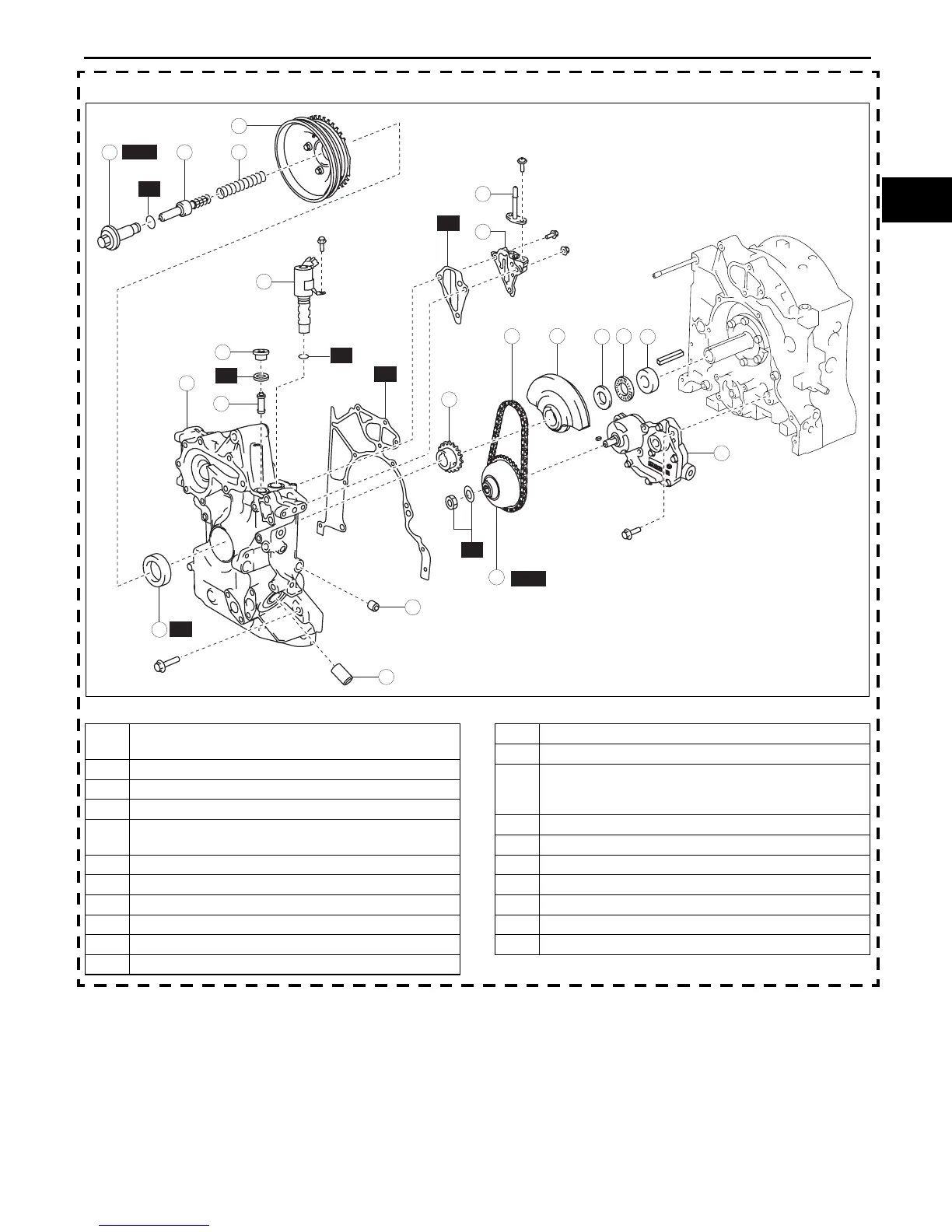

01–10-6 MECHANICAL
CHU011002000E04
Type B
.
End Of Sie
R
R
R
R
R
R
R
14
13
12
6
1
43
2
5
10
11
16
15 18 19
20
21
17
7
8
9
SST
SST
BHJ0110F003
1 Pulley lockbolt
(See 01–10–7 Pulley Lockbolt Disassembly Note.)
2 Pulley component
3 Eccentric shaft bypass valve
4Spring
5 Front cover
(See 01–10–7 Front Cover Disassembly Note.)
6 Front oil seal
7OCV
8 Oil pipe
9 OCV case
10 Plug
11 OCV oil filter
12 Oil filter joint
13 Plug
14 Oil pump sprocket wheel
(See 01–10–7 Oil Pump Sprocket Disassembly
Note.)
15 Oil pump chain
16 Oil pump drive gear
17 Oil pump component
18 Balance weight
19 Thrust plate
20 Needle bearing
21 Spacer
