MECHANICAL
01–10–6
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C)
Revised 6/2008 (Ref. No. R108/08)

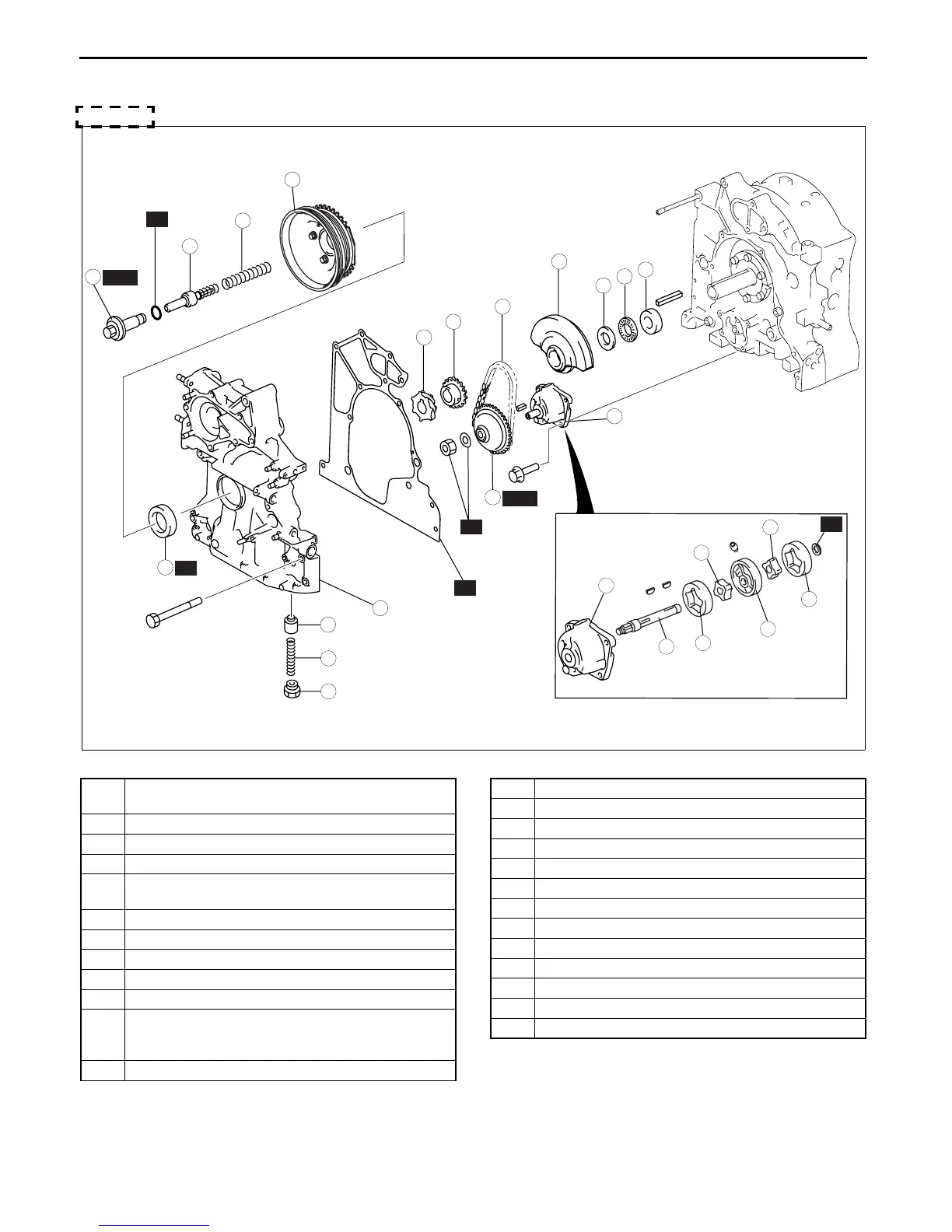

HOUSING DISASSEMBLY II
CHU011002000E05
1. Disassemble in the order indicated in the table.
Type A
.
9
8
7
5
4
3
1
2
10
19
18
17
15
16
14
13
11
12
20
6
R
R
21
22
23
24
R
R
R
SST
25
SST
BHJ0110E008
1 Pulley lockbolt
(See 01–10–7 Pulley Lockbolt Disassembly Note.)
2 Pulley component
3 Eccentric shaft bypass valve
4Spring
5 Front cover
(See 01–10–7 Front Cover Disassembly Note.)
6 Front oil seal
7Plug
8 Control valve spring
9 Control valve
10 Metering oil pump drive gear
11 Oil pump sprocket wheel
(See 01–10–7 Oil Pump Sprocket Disassembly
Note.)
12 Oil pump chain
13 Oil pump drive gear
14 Oil pump component
15 Balance weight
16 Thrust plate
17 Needle bearing
18 Spacer
19 Rear outer rotor
20 Rear inner rotor
21 Middle plate
22 Front outer rotor
23 Front inner rotor
24 Shaft
25 Oil pump body
