MECHANICAL
01–10–24
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C)
PILOT BEARING INSPECTION/REPLACEMENT [MT]
CHU011011D01E03
Inspection
Caution
• Inspect the pilot bearing when it is installed to the eccentric shaft.
1. Before removing the pilot bearing, inspect it for damage, wear, and proper rotation.
• If there is any malfunction, replace the pilot bearing.
Replacement
Removal

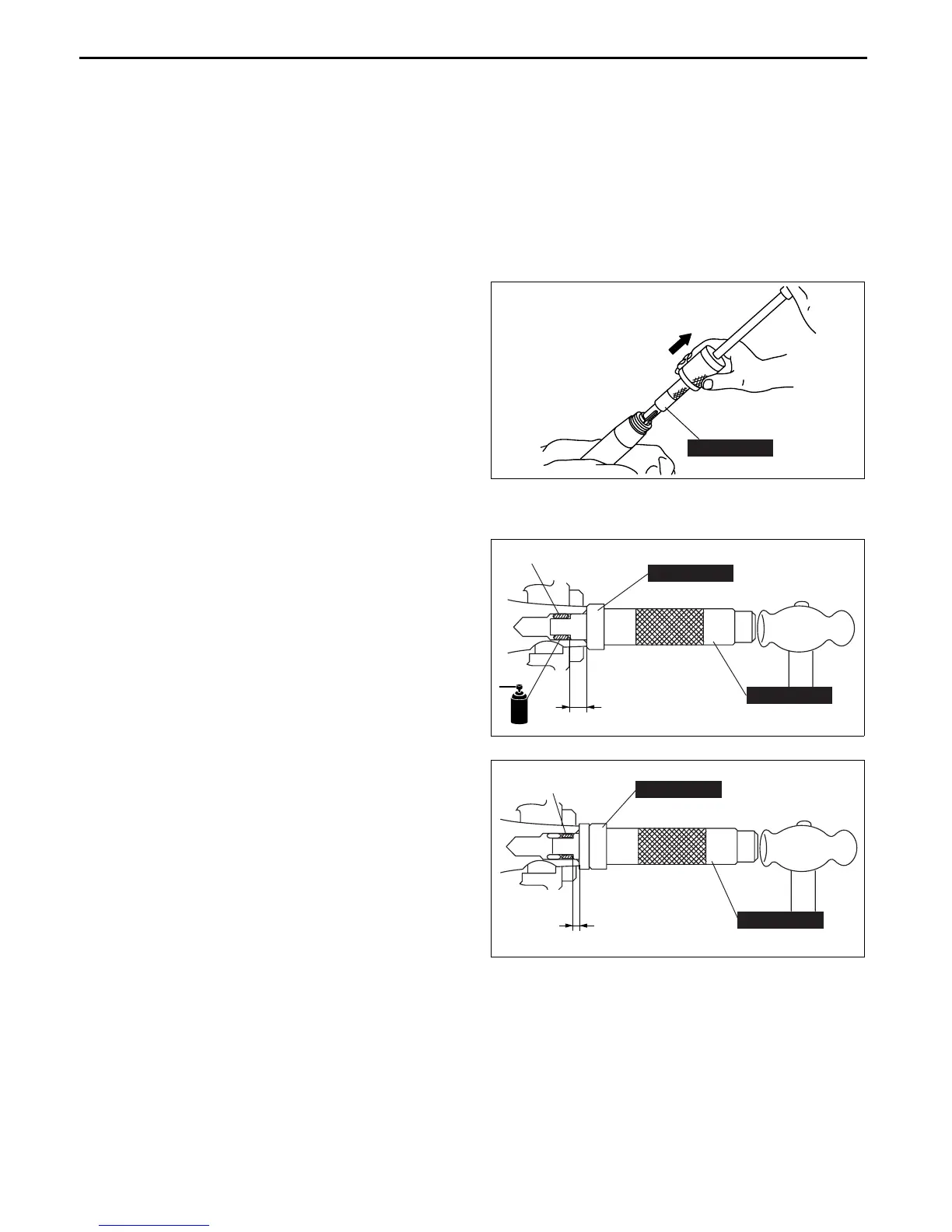

1. Fix the eccentric shaft on a vice.
2. Remove the pilot bearing and the oil seal together
using the SST.
Installation
1. Install a new pilot bearing using the SSTs.
2. Apply grease to the pilot bearing.
3. Install a new oil seal using the SSTs.
End Of Sie
49 1285 071
BHJ0110E070
49 G030 797
49 F011 1A1
PILOT BEARING
11.5—12.25 mm {0.4528—0.4822 in}
CHU0110E020
49 G030 797
49 F011 1A1
OIL SEAL
5.5—6.3 mm {0.217—0.248 in}
CHU0110E021
To Next Page
