GENERAL INFORMATION
00–00–8

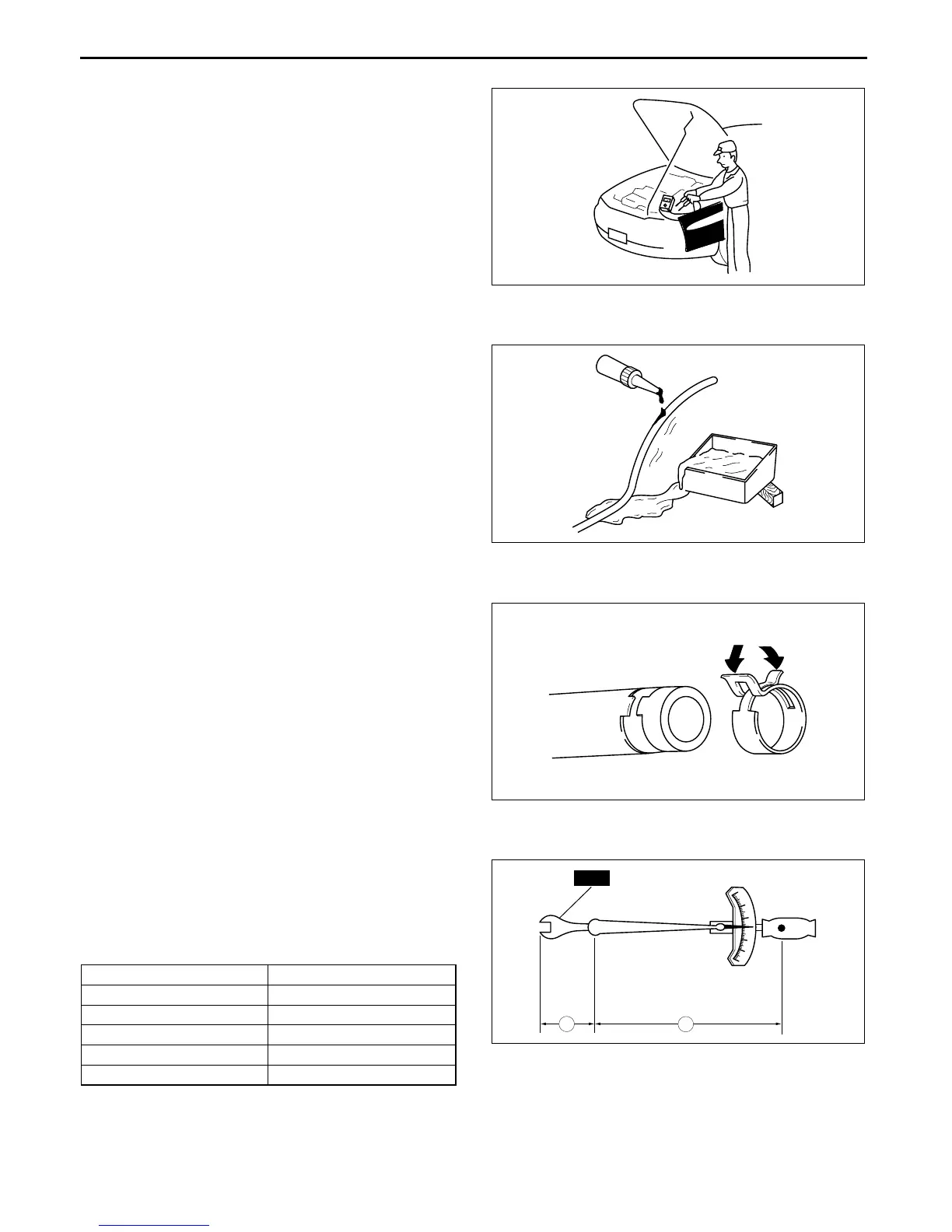

Adjustment
• Use suitable gauges and testers when making
adjustments.
Rubber Parts and Tubing
• Prevent gasoline or oil from getting on rubber
parts or tubing.
Hose Clamps
• When reinstalling, position the hose clamp in the
original location on the hose and squeeze the
clamp lightly with large pliers to ensure a good fit.
Torque Formulas
• When using a torque wrench-SST or equivalent
combination, the written torque must be
recalculated due to the extra length that the SST
or equivalent adds to the torque wrench.
Recalculate the torque by using the following
formulas. Choose the formula that applies to you.
A : The length of the SST past the torque wrench drive.
L : The length of the torque wrench.
CHU0014W005
WGIWXX0034E
WGIWXX0035E
Torque Unit Formula
N·mN·m
×
[L/(L+A)]
kgf·mkgf·m × [L/(L+A)]
kgf·cm kgf·cm × [L/(L+A)]
ft·lbf ft·lbf × [L/(L+A)]
in·lbf in·lbf × [L/(L+A)]
0
1
1
2
2
3
3
SST
A
L
WGIWXX0036E
