MECHANICAL
01–10–48
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C)
Revised 6/2008 (Ref. No. R108/08)
Type B
Caution
• Apply the silicon sealant in a single, unbroken line around the whole perimeter.
• Install the oil pan within 5 min after applying the silicone sealant.

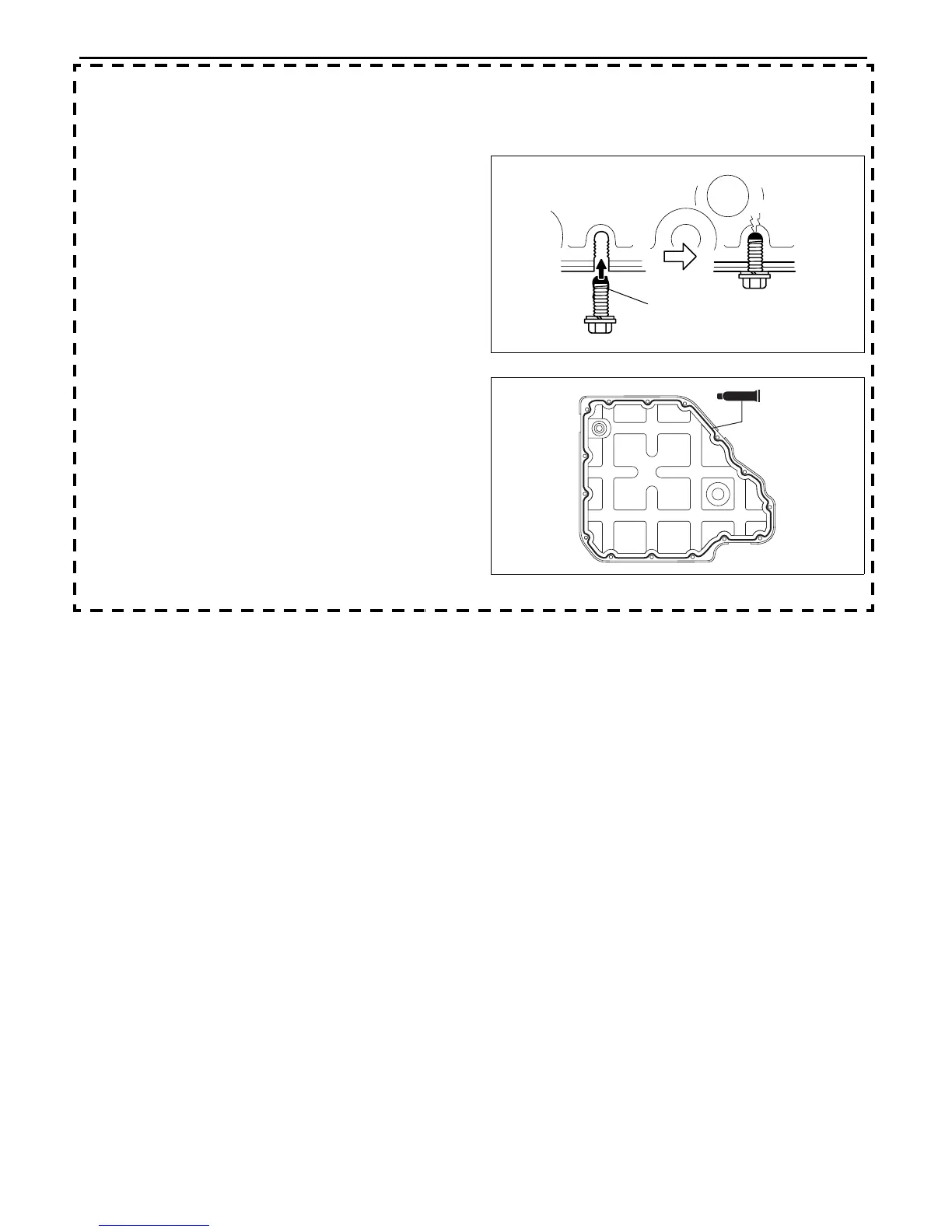

• Using bolts with the old seal adhering
could cause cracks in the housing.
1. Completely clean and remove any oil, dirt, sealant
or other foreign material that may be adhering to
the oil pan upper block and oil pan.
2. When reusing the oil pan installation bolts, clean
any old sealant from the bolts.
3. Apply silicone sealant to the areas as shown in
the figure.
Thickness
2.5—6.5 mm {0.10—0.26 in}
4. Install the oil pan to the oil pan upper block.
5. Tighten the oil pan installation bolts.
Tightening torque
7.8—10.8 N·m {80—110 kgf·cm, 69.0—95.5
in·lbf}
End Of Sie
OLD SEALANT
DAMAGE
CHU0111W004
SEALANT
AR8WZW000007
To Next Page
