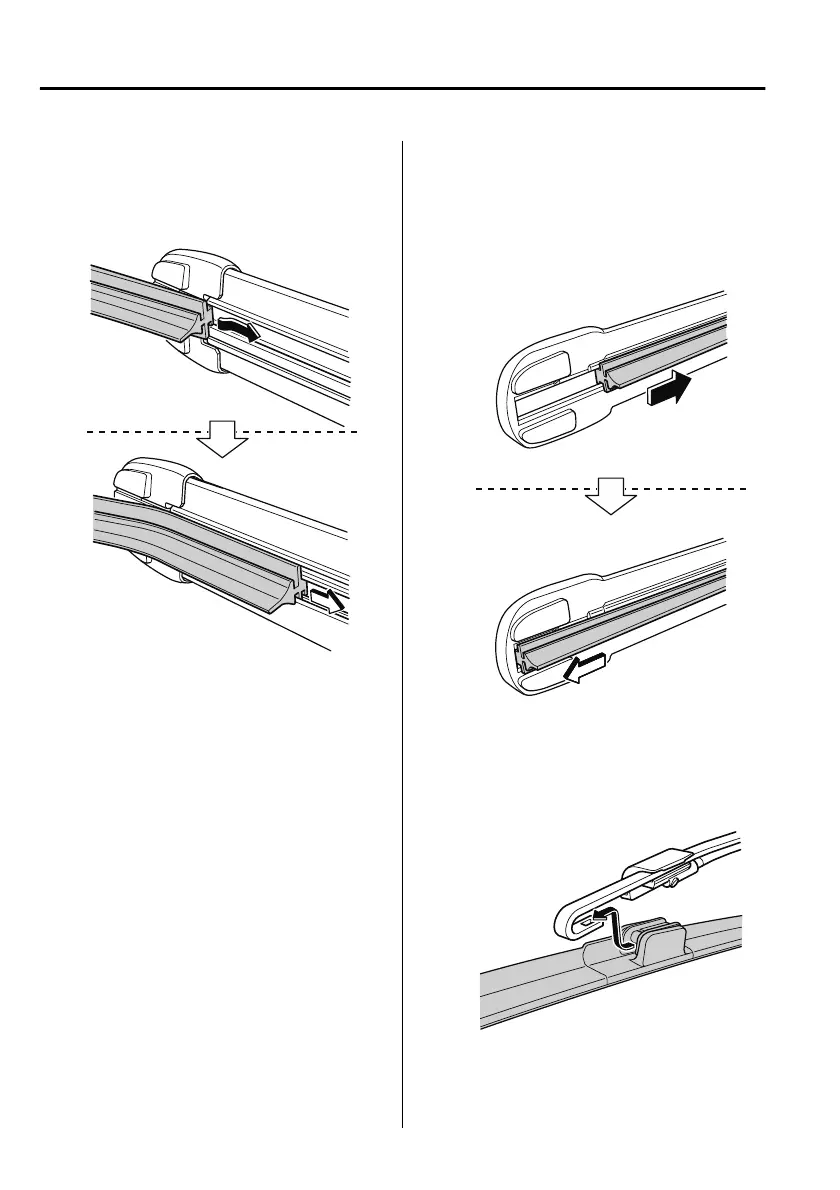

6. Insert the end of the new blade
rubber into the groove of the blade
holder until it contacts the end of
the blade holder.
7. After pulling the blade rubber in the
direction of the arrow and sliding
the blade rubber to a position to
check the blade holder groove,
slide the blade rubber end in the
opposite direction.
8. Make sure that the blade rubber is
correctly installed to the blade
holder.
9. Slide the blade component and
install it to the wiper arm.
10.Slowly lower the wiper arms onto
the windscreen.
Maintenance and Care
Owner Maintenance
6-36
