McConnel RoboCut - Fluid Level Checks and Filter Service

31

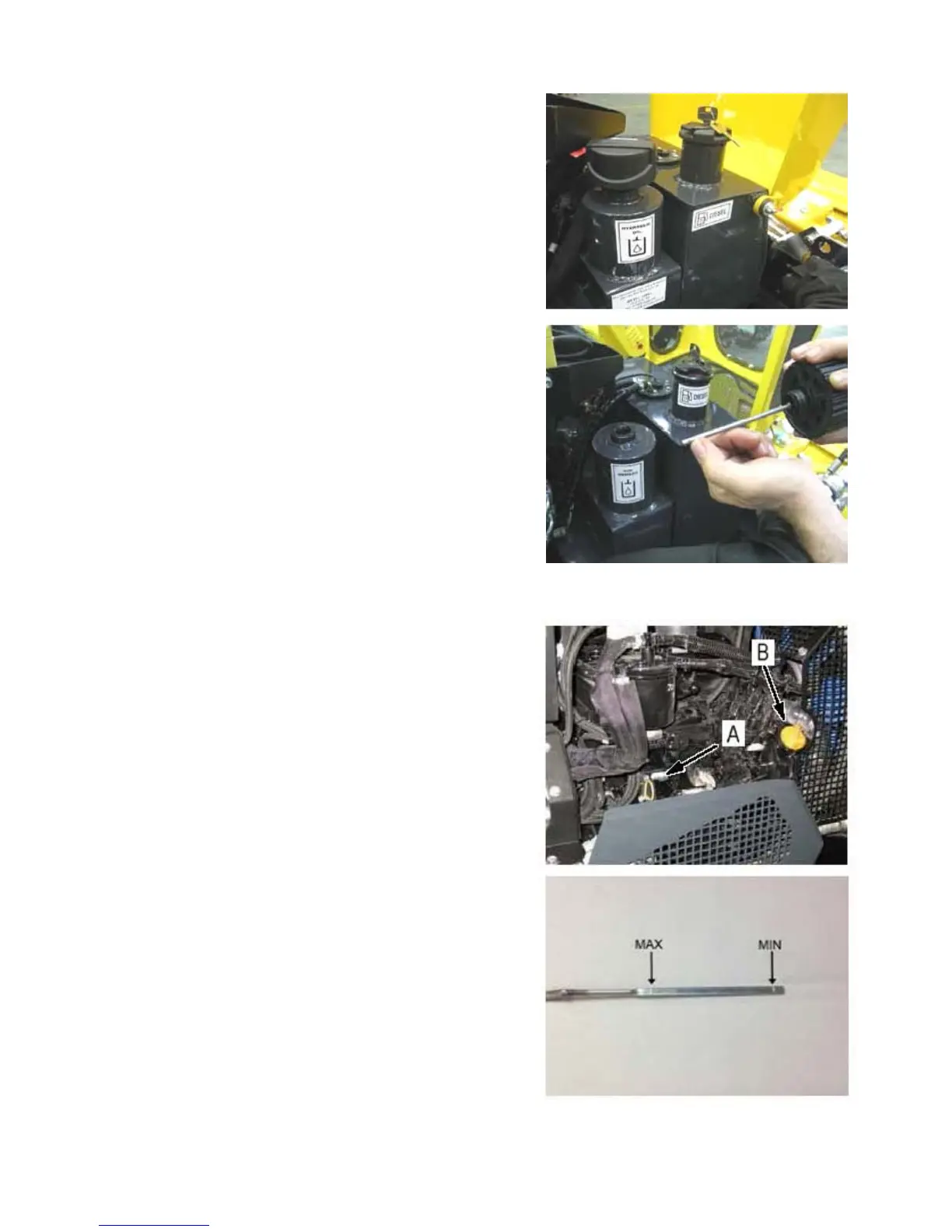

Checking Hydraulic Oil Level
The procedure for checking and replenishing the
machines hydraulic oil is as follows;
 Park the machine on a firm level site.
 Ensure engine is switch off and the key removed
and pocketed.
 Release rubber hooks and raise the front engine
cover.
 Unscrew the dipstick (located under the filler cap),
remove and wipe with a clean rag.
 Replace dipstick without screwing in, then remove
again and check the level – oil level is correct if the
oil reaches the marker on the dipstick.
 If oil level is too low, top up using the correct
recommended oil. Do not overfill beyond MAX level.
 When oil level is correct, screw the dipstick back in,
close and secure the engine cover.
CAUTION! Always use the same type and brand of oil for
‘topping up’ of the hydraulic system; never mix different types
and brands of oil.
Checking Engine Oil Level
The procedure for checking and replenishing the
machines engine oil is as follows;
 Park the machine on a firm level site.
 Ensure engine is switch off and the key removed
and pocketed.
 Undo the 4 knurled head screws and remove the
cover.
 Remove dipstick (A) and wipe with a clean rag.
 Replace dipstick then remove again and check the
level – oil level is correct when the oil level is
between lower and upper marks on the dipstick.
 If oil level is too low, top up using recommended
engine oil. The engine oil filler location is indicated
‘B’ opposite.
When topping up oil always clean the surrounding
area of the filler cap before removal to avoid the
risk of dirt contaminating the oil.
 When oil level is correct, replace dipstick before
replacing and securing the cover.
