Overview

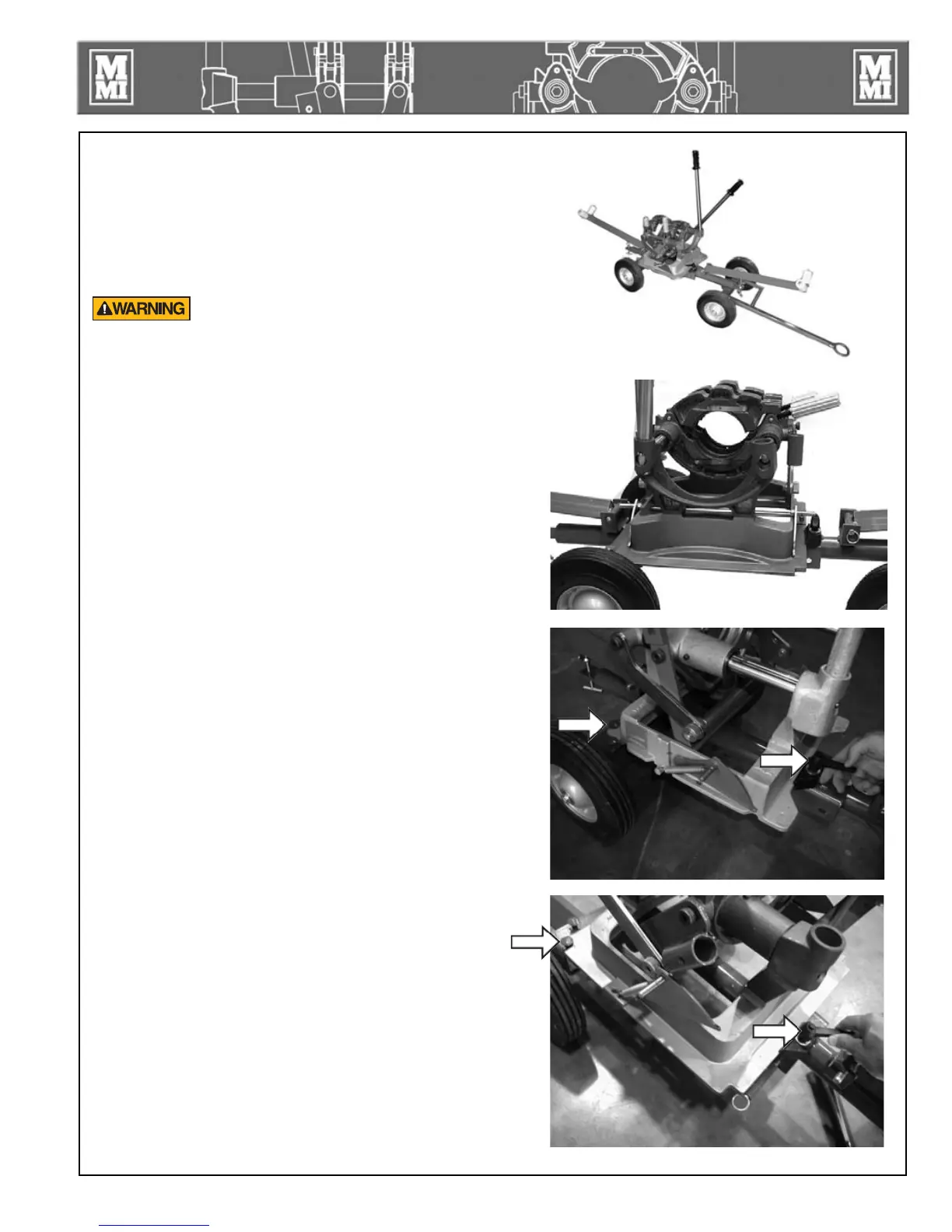

PitBull No.14 Cart
The PitBull No.14 fusion machine can be mounted on a No.14
four wheel cart for mobility and movement along the pipe line.
There is a clamping wheel lock on the left rear wheel to prevent
rolling.
The cart is not designed for over-road towing.
Towing at speeds greater than 5 mph can
result in machine damage as well as injury.
Always transport the machine by flatbed truck
or similar means.
The tongue on the tow bar has a ring to slip over a ball hitch so
the machine can be conveniently maneuvered at the job site.
The cart has outrigger pipe supports that conveniently stow
under the cart when not in use.
The PitBull No.14 Fusion Machine can be mounted on the cart
in any one of three orientations. Older No.14 Fusion Machines
can be mounted in one orientation. The machine is secured
by two mounting posts and a sliding clamp block with an
adjustable clamping lever.
To mount the fusion machine on the cartslide the mounting block
toward the tow bar. Insert one edge of the fusion machine base
under the mounting posts. Slide the clamp block up against the
other edge and secure it with the adjustable clamping lever. To
disengage and swivel the adjustable clamping lever handle pull
up on it by pressing the button with a thumb.
Please note the mounting position for older style No.14 Fusion
Machine. Use the two inboard mounting posts.
Please note mounting position for newer style PitBull No.14
Fusion Machine. Use the two outboard mounting posts.
TX01843-7-25-00
PH01876-7-25-00
PH01891-7-25-00
2 - 2
PH01867-7-25-00
PH01872-7-25-00
