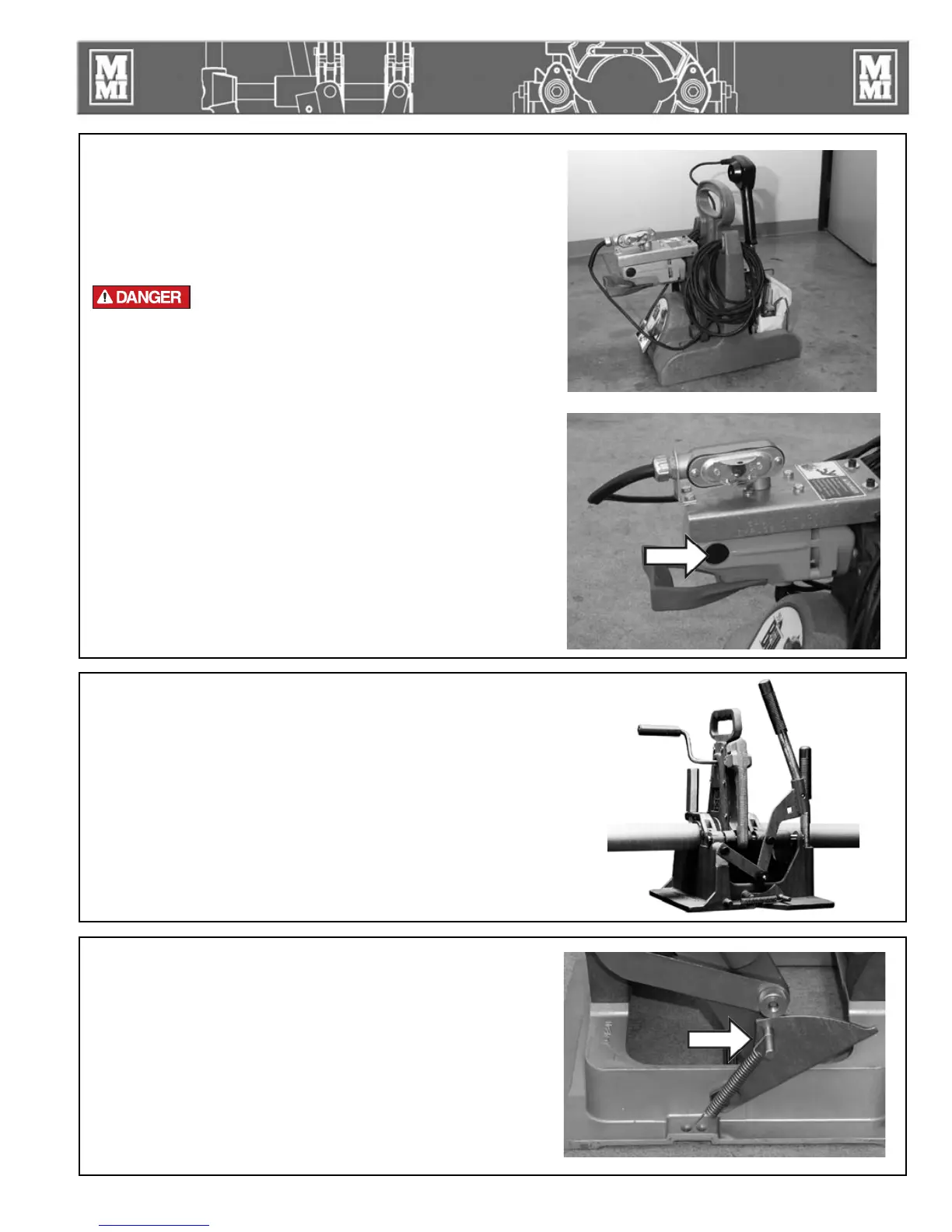

Overview
Electric Facer
The facer is a McElroy Rotating Planer Block Design. The blade
holders each contain two cutter blades. The block rotates on ball
bearings and is chain driven (enclosed in lubricant) by a heavy
duty electric motor. When operating in a hazardous environment,
operate the facer manually.
Electric motors are not explosion proof.
Operation of these components in a hazardous
environment will result in explosion and death.
The armature brushes must be removed from the electric motor
when manually operating in a hazardous condition. Unscrew
the brushes from both sides of the motor. (Both brushes must
be removed). A 7/8" hex shaft allows for manual operation in
hazardous conditions.
The facer has a handle that latches into place on a guide bar.
The handle must be pulled out to unlatch and remove facer.
The electric facer is symmetrical and can be inserted from either
side.
The facer should be stored in the stand when not in use.
NOTICE: Never extend the blade beyond the inner or outer
circumference of the facer.
TX02472-03-29-05
PH02330-4-29-02
Manual Facer
The manually operated facer has a hand powered crank. Turn the
crank counterclockwise for facing.
TX00836-1-5-96
Cam Lock
A semi-automatic cam locking system locks the movable jaw
during the cooling cycle.
TX00837-1-5-96
PH00657-1-4-96
PH01846-7-25-00
PH01847-7-25-00
2 - 4
