Operation

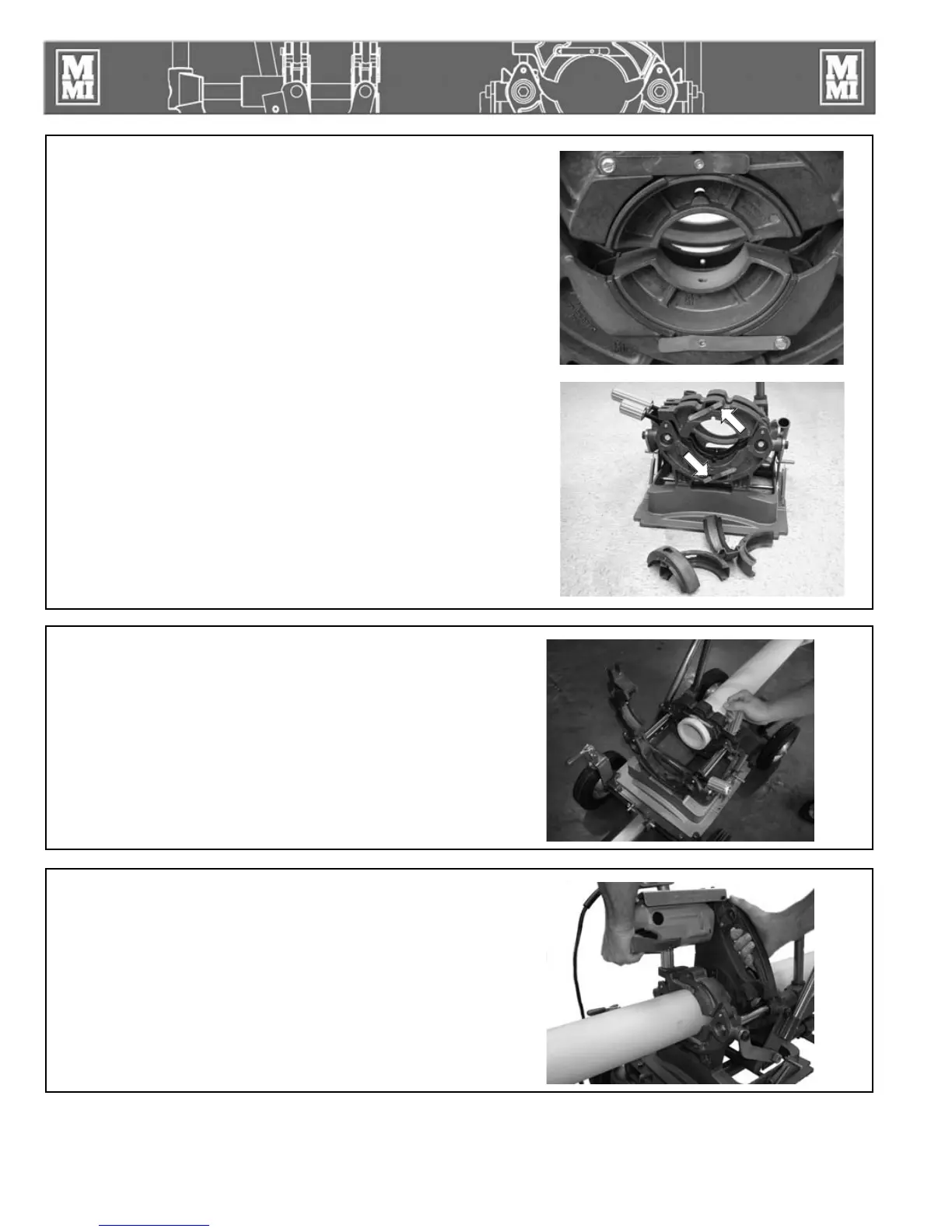

Install Clamping Inserts
Select and install appropriate clamping inserts for the pipe that is
being fused.
For use with 4" DIPS pipe the 4" IPS masters inserts must be
removed. Pull the spring pins out of their hole and rotate them
outward putting the pin in the jaw pockets. Loosen the insert
attachment screw with the furnished 5/32" hex screwdriver then
rotate the insert in the jaw so the keyhole lines up with the screw
head and pull out the insert.
X01846-7-25-00
PH011856-7-25-00
3 - 2
PH01883 -7-25-00
Loading Pipe Into Machine
Clean the inside and outside of pipe ends that are to be fused.
Open the upper jaws and insert pipe in each pair of jaws with
applicable inserts installed. Let the ends of the pipe protrude
about 1" past the face of the jaws. Close upper jaws but do not
clamp tight.
TX01847-7-25-00
PH01871-7-25-00
Inserting Facer
Place the end opposite the handle onto the far guide rod, then
lower the facer handle end down onto the near guide rod and
latch.
TX01851-7-25-00
PH01888-7-25-00
