Overview

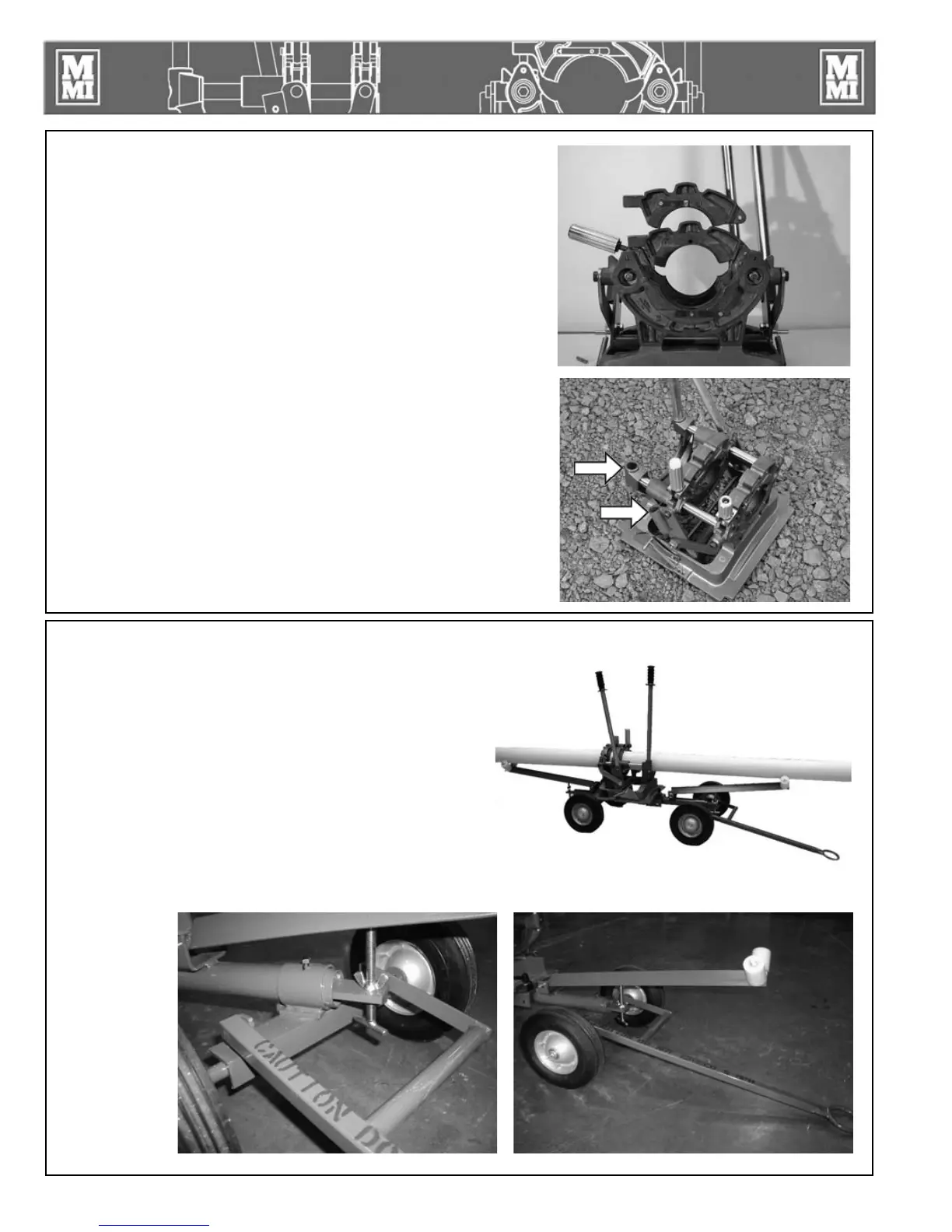

Outrigger Pipe Supports
The PitBull No.14 cart comes equipped with two outrigger
pipe supports that can be used to help line up the pipe in the
machine. When not in use they are fastened with pins under
the cart.
To use the outriggers, simply remove attaching pins, pull
outriggers out and reinstall on the top front and back of the
cart with attaching pins.
The outriggers rest on adjusting screws that can be adjusted
up or down for proper pipe alignment. A wing nut on each
adjusting screw locks the screw setting in place.
TX01844-7-25-00
PH01890-7-25-00
PH01873-7-25-00
2 - 3
PH01874-7-25-00
Reversible Jaws & Levers
The No. 14 PitBull upper jaws and control levers are reversible
from one side to the other. This allow the machine to be operated
from either side. The jaws and clamp knobs can be removed by
using a pair of snap ring pliers to release the hinge pins.
The lever handles can be moved from one side to the other by
depressing their spring pins and pulling them out. Put the lever
in the desired socket and make sure its pin engages the hole. The
levers should be on the side opposite the clamp knobs.
Notice: When the top jaws are reversed they should be switched
between lower jaws so that the spring pins are both on the
outboard sides away from the facer blades.
TX02060-9-20-02
PH01880-7-25-00
PH01881-7-25-00
