Overview

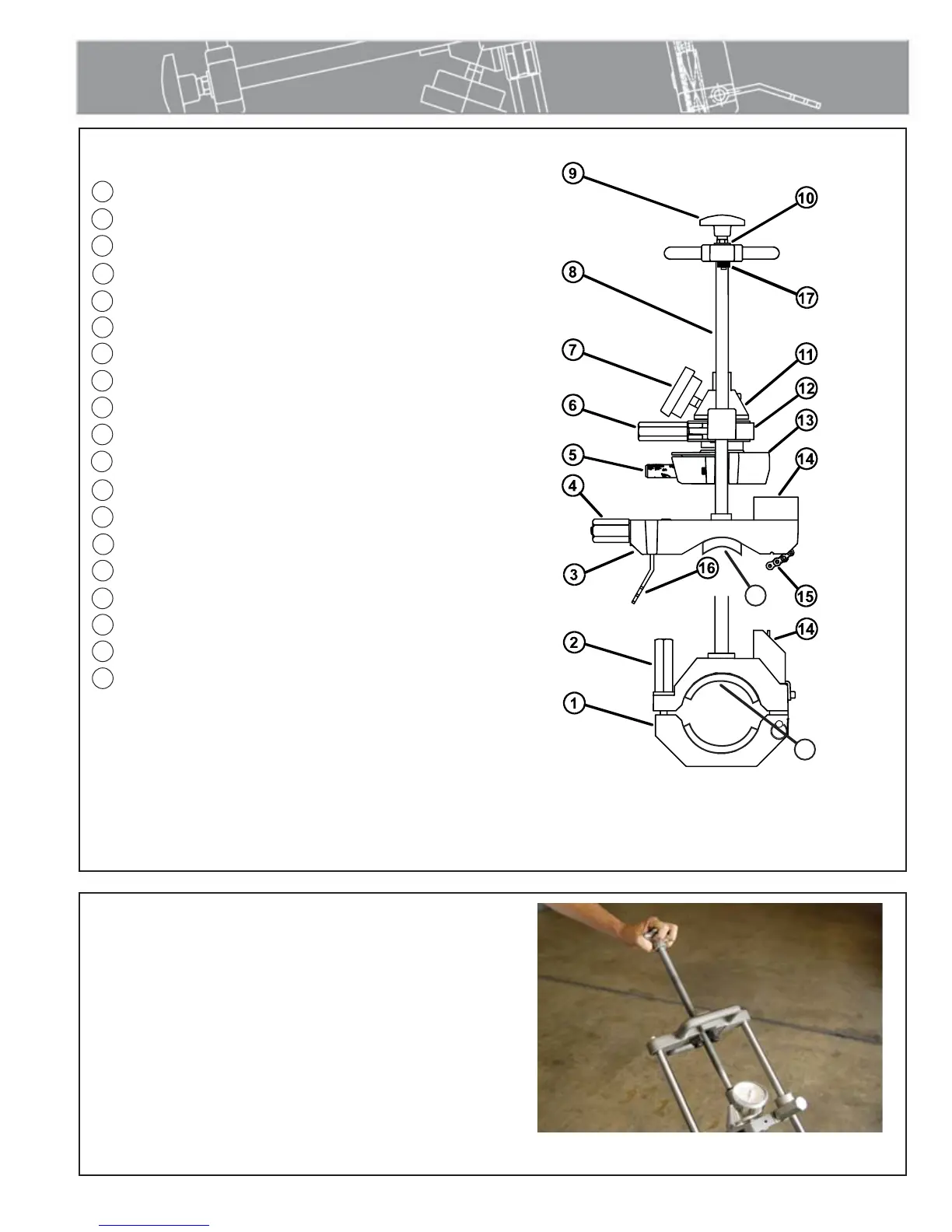

Nomenclature
1 Jaw clamp assembly
2 Jaw clamp Knob
3 Chain clamp assembly
4 Chain vice clamp knob
5 Pivot release master clamp knob
6 Moveable jaw clamp knob
7 Load cell pressure gauge
8 Guide rods
9 Drive screw knob
10 Reaction spring
11 Load Cell
12 Moveable jaw
13 Pivot release master insert assembly
14 Heater guide
15 Tailstock chain
16 Chain hook
17 Split Nut Assembly
18 Sidewall insert
19 Line pipe insert
Drive Screw
The drive screw is used to apply pressure. Turning the drive screw
knob clockwise will apply pressure.
To release pressure, turn the drive screw knob counterclockwise
until the gauge reads zero.
To disengage and move the drive screw, pull the drive screw out
against the reaction spring until it clears the split nut assembly.
CD00197-7-30-10
PH03045-5-27-05
TX00904-3-17-99
TX00903-4-2-96
18
19
