Reel Disk from McFarlane Mfg. 20 800-627-8569

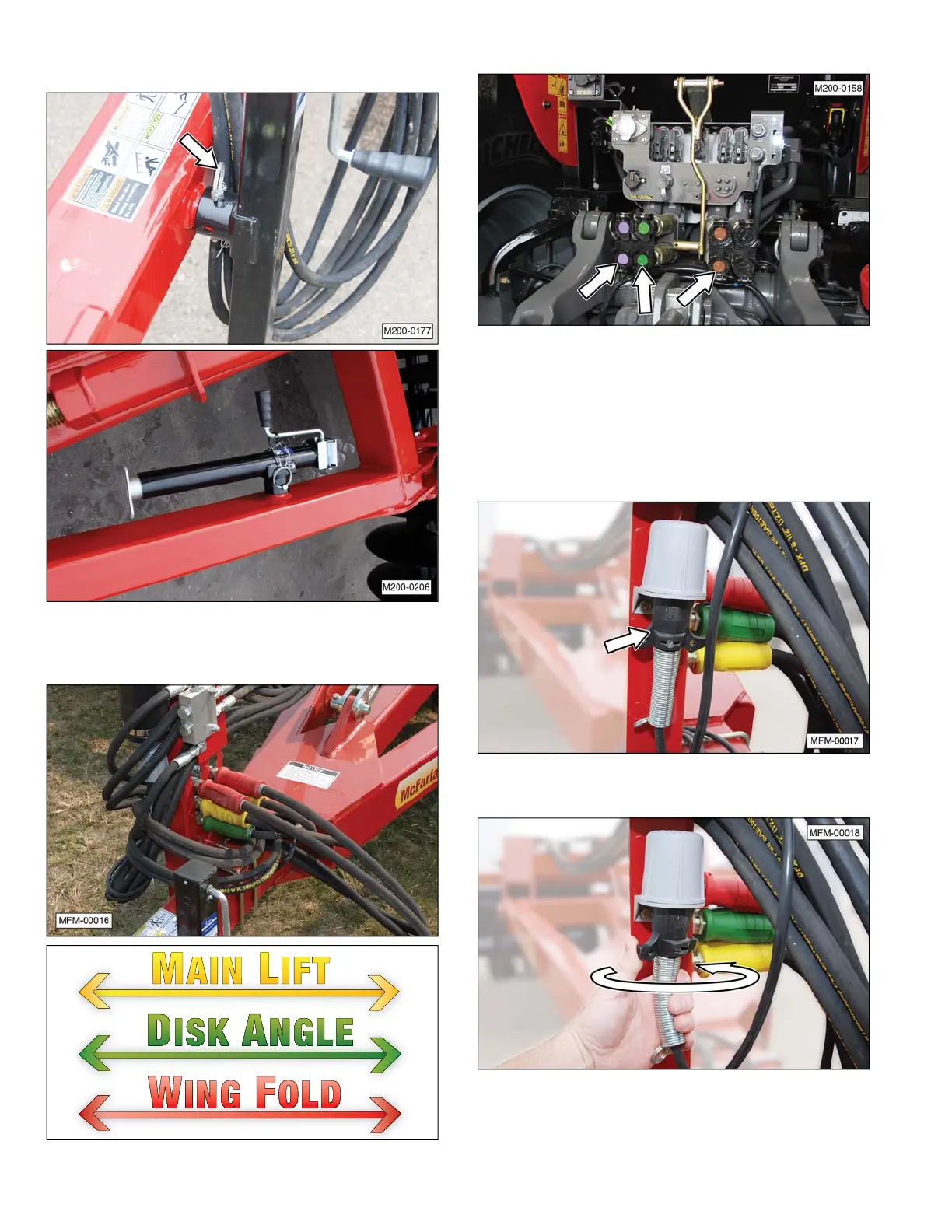

3. Remove the jack stand and place it in its storage
position inside the frame, as shown.
4. Remove the six hydraulic hoses from their storage
position.
5. Connect the hydraulic hoses to the tractor.
Note: The most commonly used function of the unit is
the “main lift” cylinders, which raises and lowers
the wheels. Connect the hydraulic hoses for this
function into the port (control lever) used most
commonly.
6. Disconnect the electrical connection for the rear lights
from the storage socket.
a. Rotate the plug.
