McFarlane RD-4125 - Rolling Basket for RD-4100 Series

800-627-8569 69 Reel Disk from McFarlane Mfg.

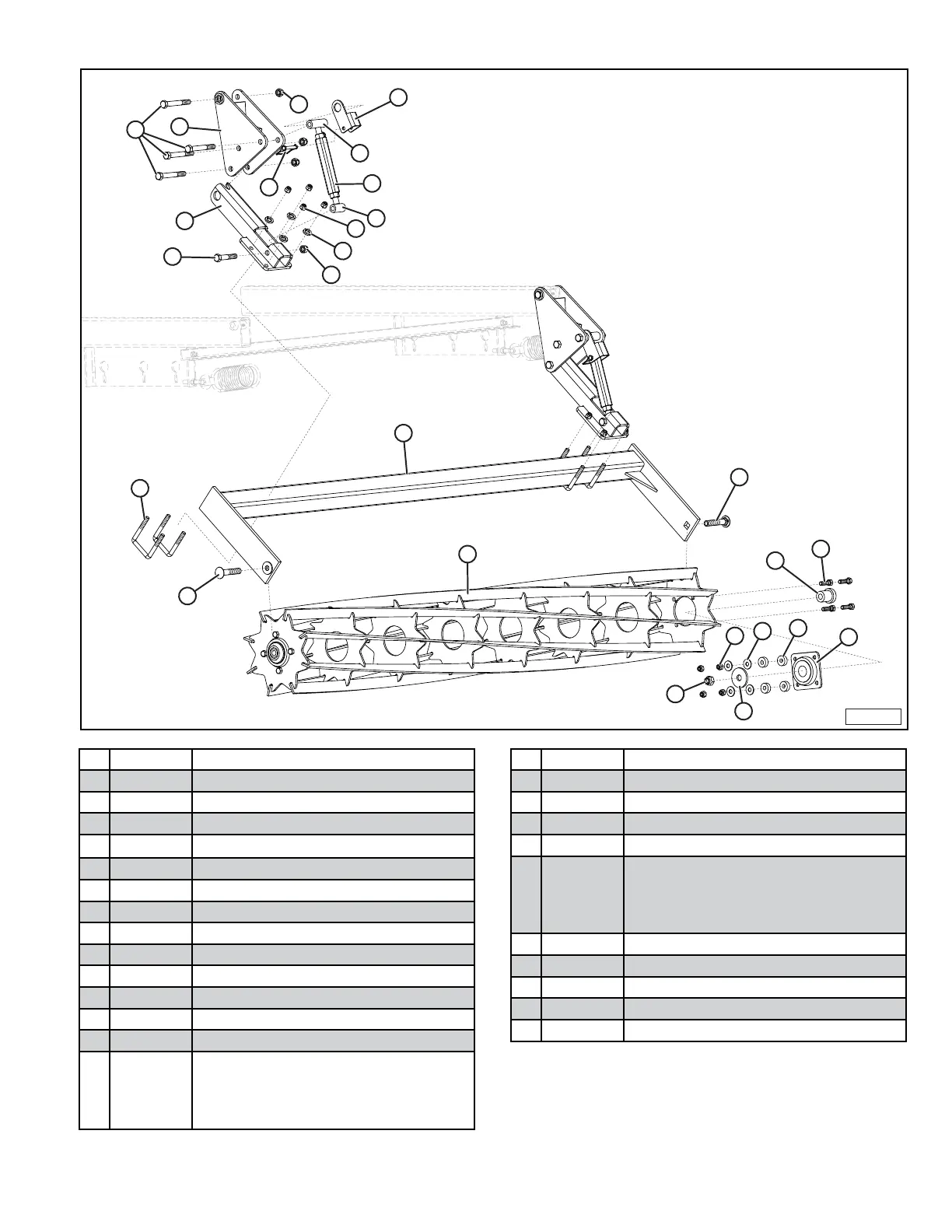

Rolling Basket for RD-4100 Series
1
2
5
4
6
7
8
3
12
13
9
10
15
14
15
11
17
18
20
21
22
23
24
19
16
3
MFM-00102
Item Part Number Description
1 RD-5065 PIVOT PLATE
2 RD-5066 RB PIVOT CARRIAGE BOLT
3 NLT-6311 5/8-11 TOP LOCK NUT
4
LP-3825 3/8 X 2-1/2 LYNCH PIN
5 RD-5070 TURNBUCKLE LOCK
6 RT-2411 PIVOT END TURNBUCKLE
7 RD-5068 TURNBUCKLE TUBE
8 RT-2413 ANGLE END TURNBUCKLE
9 RD-4899 ROLLING BASKET SWING ARM
10 BH-6340 5/8-11 X4 GRADE 5 HEX BOLT
11 BU-1234 1/2-13 x 3 x 4 U-BOLT
12 LW-0050 1/2 LOCK WASHER
13 NH-5013 1/2-13 NUT
14
RD-5080
RD-5079
RD-5078
RD-5077
RD-5081
BASKET MOUNT TUBE – 52”
BASKET MOUNT TUBE – 63”
BASKET MOUNT TUBE – 74”
BASKET MOUNT TUBE – 85”
BASKET MOUNT TUBE – 96”
Item Part Number Description
15 BC-7540 3/4 X 4 CARRIAGE BOLT
16 BH-5018 1/2 – 13 X 1-3/4 GRADE 5 HEX BOLT
17 SRB-1408 BASKET BEARING INSERT – 2.125”
18 DRB-3826 BASKET BEARING, RIVETED, 1-1/2 ROUND
19
SRB-1552
SRB-1563
SRB-1574
SRB-1585
SRB-1596
ROLLING BASKET – 52”
ROLLING BASKET – 63”
ROLLING BASKET – 74”
ROLLING BASKET – 85”
ROLLING BASKET – 96”
20 DRB-3828 BASKET BEARING RUBBER WASHER
21 FW-0050 1/2 FLAT WASHER
22 NLT-5013 1/2-13 TOP LOCK NUT
23 SRB-1406 BEARING WASHER, 2 ¾ OD X 13/16 ID X ¼
24 NLT-7510 3/4-10 TOP LOCK NUT
