McFarlane RD-4125 - Gauge Wheel Frame for RD-4100 Series

800-627-8569 47 Reel Disk from McFarlane Mfg.

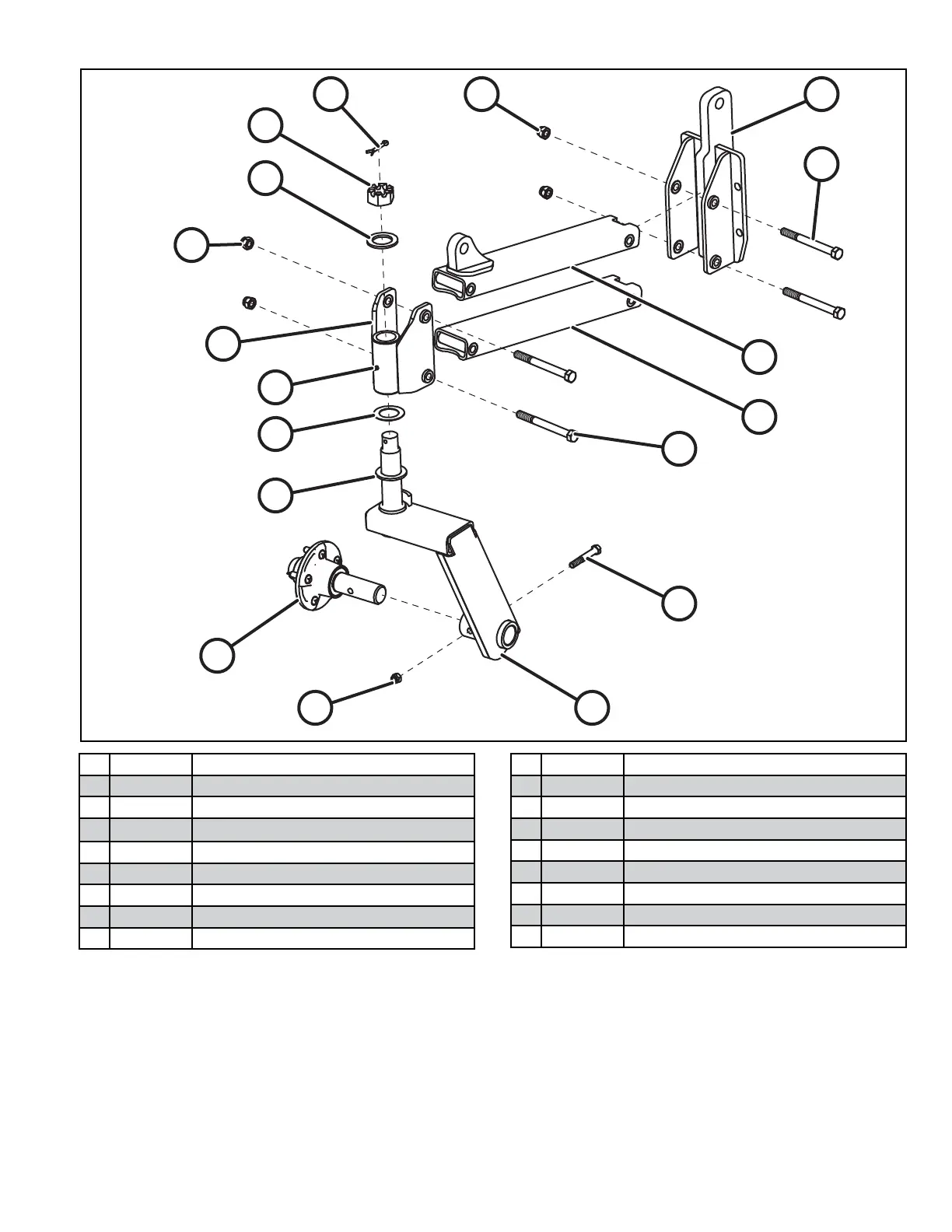

Gauge Wheel Frame for RD-4100 Series
3 4
4
5
6
7
8
6
9
1011
12
13
14
15
16
2
1
Item Part Number Description
1 RD-4876 CASTER WASHER
2 NC-1406 1-3/8 CASTLE NUT
3 CP-3620 COTTER PIN
4 NLT-6311 5/8-11 TOP LOCK NUT
5 RD-4870 CASTER TO GANG MOUNT
6 BH-6365 5/8-11 x 6-1/2 HHCS GD 5
7 RD-4869 TOP LINK
8 RD-4873 BOTTOM LINK
Item Part Number Description
9 BH-5035 1/2-13 x 3-1/2 HHCS GD 5
10 RD-4872 CASTER ARM ASSY
11 NLT-5013 1/2-13 TOP LOCK NUT
12 RD-4877 HUB & SPINDLE
13 RD-4867 CASTER THRUST WASHER
14 RD-4876 CASTER WASHER
15 GZ-2528 GREASE FITTING
16 RD-4871 CASTER VERTICAL PIVOT
