McFarlane RD-4125 - Wheel Lift Hydraulics for RD-4145

Reel Disk from McFarlane Mfg. 76 800-627-8569

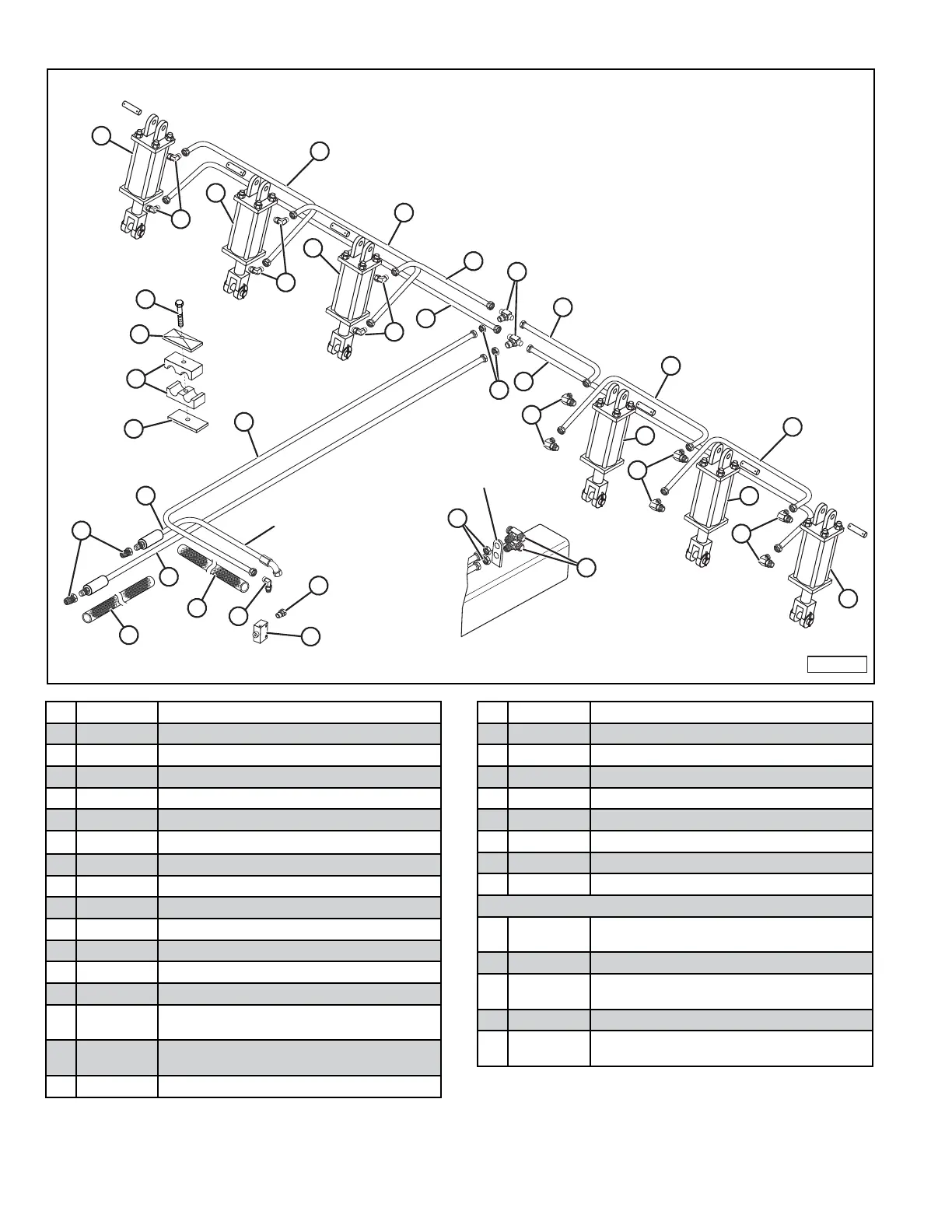

Wheel Lift Hydraulics for RD-4145
MFM-0110
3
1
18
23
17
24
11
24
17
7
9
9
12
20
22
19
16
16
14
14
15
15
6
13
8
8
10
10
10
10
10
10
21
10
2
FRAME
BRACKET
LINE FROM TRACTOR
GOES INTO THE BACK
OF THE STOP VALVE
5
4
Item Part Number Description
1 HYH-3236 1/2” X 236” HYDRAULIC HOSE (w/one ½” pipe end)
2 HYH-1030 1/2” X 214” HYDRAULIC HOSE (w/one ½” pipe end)
3 HYH-2074 1/2” X 74” HYDRAULIC HOSE
4 HYS-2001 HYDRAULIC HOSE COVER, 110”
5 HYS-2004 HYDRAULIC HOSE COVER, 12”
6
HYH-2255 1/2” X 255” HYDRAULIC HOSE
7 HYH-2030 1/2” X 30” HYDRAULIC HOSE
8 HYF-2128 1/2” X 128” HYDRAULIC HOSE
9 HYH-2104 1/2” X 104” HYDRAULIC HOSE
10 HYF-2220 ELBOW (1/2”m – 1/2” O-RING)
11 HYF-3220 ADAPTER (1/2”m – 1/2” O-RING)
12 HYH-2287 1/2” X 287” HYDRAULIC HOSE
13 HYH-2065 1/2” X 65” HYDRAULIC HOSE
14
HYR-4208
DHR 425-8-150
4-1/4” X 8” REPHASING CYLINDER (MONARCH)
4-1/4” X 8” REPHASING CYLINDER (MIDWAY)
15
HYR-4008
DHR-400-8-138
4” X 8” REPHASING CYLINDER (MONARCH)
4” X 8” REPHASING CYLINDER (MIDWAY)
16 HYR-3808 3-3/4” X 8” REPHASING CYLINDER
Item Part Number Description
17 HYF-1222 TEE (1/2”m – 1/2”m – 1/2”m)
18 HYO-3021 HYDRAULIC STOP VALVE
19* HYO-1206 HYDRAULIC CLAMP WELD PLATE, 1/2
20* HYO-1202 HYDRAULIC CLAMP BODY, 1/2 (3/4” O.D.)
21* HYO-1204 HYDRAULIC CLAMP COVER, 1/2
22* HYO-1208 HYDRAULIC CLAMP BOLT, 1/2 (1-3/4)
23 HYF-4002 HYDRAULIC DISCONNECT
24 HYO-4002 1/2” TEE NUT
HYDRAULIC CYLINDER SEAL KITS
639567 SEAL KIT FOR HYR-4208 CYLINDER
(MONARCH)
4A6104 SEAL KIT FOR DHR 425-8-150 EBCS (MIDWAY)
639564 SEAL KIT FOR HYR-4008 CYLINDER
(MONARCH)
4A5103 SEAL KIT FOR DHR 400-8-138 EBCS (MIDWAY)
639563
SEAL KIT FOR HYR-3808 CYLINDER
(MONARCH)
* HYO-1201, CONSISTS OF 19, 20, 21, AND 22
