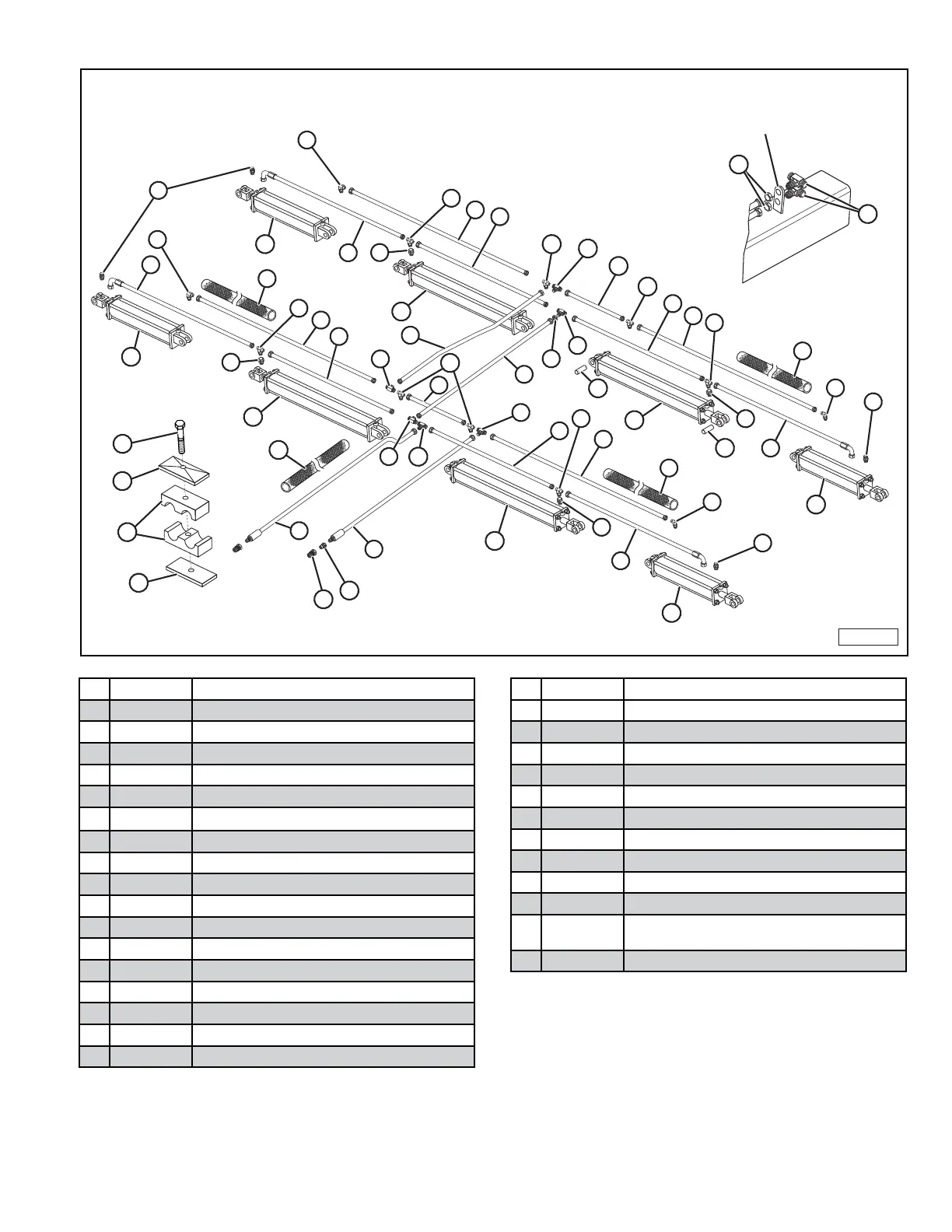

Wing Fold Hydraulics for RD-4145
MFM-0113
1
27
19
12
16
15
17
11
10
18
5
5
5
5
9
9
9
9
6
6
6
6
8
8
8
29
7
7
7
8
7
7
7
7
3
3
3
2
13
14
14
14
14
13
13
13
11
17
11
4
3
4
4
25
27
20
20
FRAME
BRACKET
22
23
21
24
28
29
29
26
Item Part Number Description
1 HYH-3194 1/2” X 194” HYDRAULIC HOSE (w/one ½” pipe end)
2 HYH-3216 1/2” X 216” HYDRAULIC HOSE (w/one ½” pipe end)
3 HYF-1223 TEE (1/2”m – 1/2”m – 1/2”f)
4 HYF-1202 TEE (1/2”m – 1/2” O-RING – 1/2”m)
5 HYH-2128 1/2” x 128” HYDRAULIC HOSE
6
HYF-1232 TEE (1/2”m – 1/2”f – 1/2”m)
7 HY-1304 HYDRAULIC RESTRICTOR, 1/8”
8 HYF-2220 ELBOW (1/2”m – 1/2” O-RING)
9 HYH-1029 1/2” x 115” HYDRAULIC HOSE
10 HYH-2074 1/2” x 74” HYDRAULIC HOSE
11 HYF-1222 TEE (1/2”m – 1/2”m – 1/2”m)
12 HYH-2055 1/2” x 55” HYDRAULIC HOSE
13 HYC-4036 4” X 36” HYDRAULIC CYLINDER
14 HYC-40 24 4” X 24” HYDRAULIC CYLINDER
15 HYH-2060 1/2” x 60” HYDRAULIC HOSE
16 HYH-2065 1/2” x 65” HYDRAULIC HOSE
17 HYO-4002 1/2” TEE NUT
Item Part Number Description
18 HYH-2050 1/2” x 50” HYDRAULIC HOSE
19 HYH-2084 1/2” x 84” HYDRAULIC HOSE
20 HYO-2123 CYLINDER CLEVIS PIN, 1-1/4 X 3-1/2
21* HYO-1206 HYDRAULIC CLAMP WELD PLATE, 1/2
22* HYO-1202 HYDRAULIC CLAMP BODY, 1/2 (3/4” O.D.)
23* HYO-1204 HYDRAULIC CLAMP COVER, 1/2
24* HYO-1208 HYDRAULIC CLAMP BOLT, 1/2 (1-3/4)
25 HYF-4002 HYDRAULIC DISCONNECT
26 HYS-2001 HYDRAULIC HOSE COVER, 110”
27 HYH-2052 1/2” x 52” HYDRAULIC HOSE
28
HY-1303 HYDRAULIC RESTRICTOR, PIPE THREADS,
1/8”
29 HYS-2002 HYDRAULIC HOSE COVER, 85”
* HYO-1201, CONSISTS OF 21, 22, 23, AND 24
