McFarlane RD-4125 - Wing Rest for RD-4125, 4130 and 4135

Reel Disk from McFarlane Mfg. 56 800-627-8569
Wing Rest for RD-4125, 4130 and 4135
6
1
1
5
4
7
2
2
3
9
9
8
2
3
3
2
3
5
6
MFM-00087

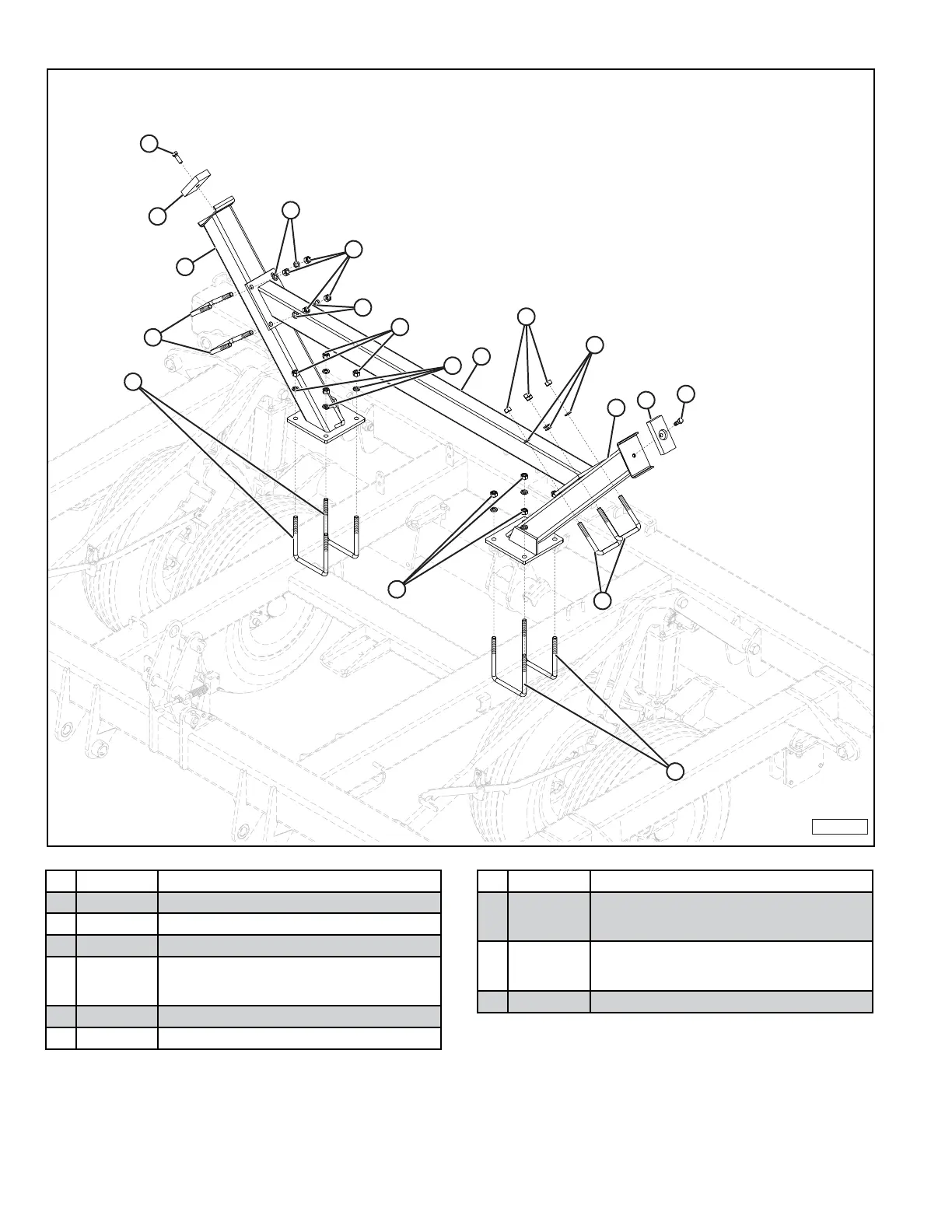

Item Part Number Description
1 BU-5867 5/8-11 X 6 X 7-1/2 U-BOLT
2 LW-0063 5/8 LOCK WASHER
3 NH-6311 5/8-11 HEX NUT
4
RD-4620
RT-3434
RD-4621
WING REST ASSEMBLY, RIGHT (4125)
WING REST ASSEMBLY, RIGHT (4130)
WING REST ASSEMBLY, RIGHT (4135)
5 RT-3415 WING REST BUMPER
6 BH-5015 1/2-13X 1-1/2 GRADE 5 HEX BOLT
Item Part Number Description
7
RD-4483
RT-3433
RD-4487
WING REST BRACE (4125)
WING REST BRACE (4130)
WING REST BRACE (4135)
8
RD-4482
RT-3432
RD-4486
WING REST ASSEMBLY, LEFT (4125)
WING REST ASSEMBLY, LEFT (4130)
WING REST ASSEMBLY, LEFT (4135)
9 BU-5845 5/8-11 X 4 X 5-1/2 U-BOLT
