Spiral Reel Blades

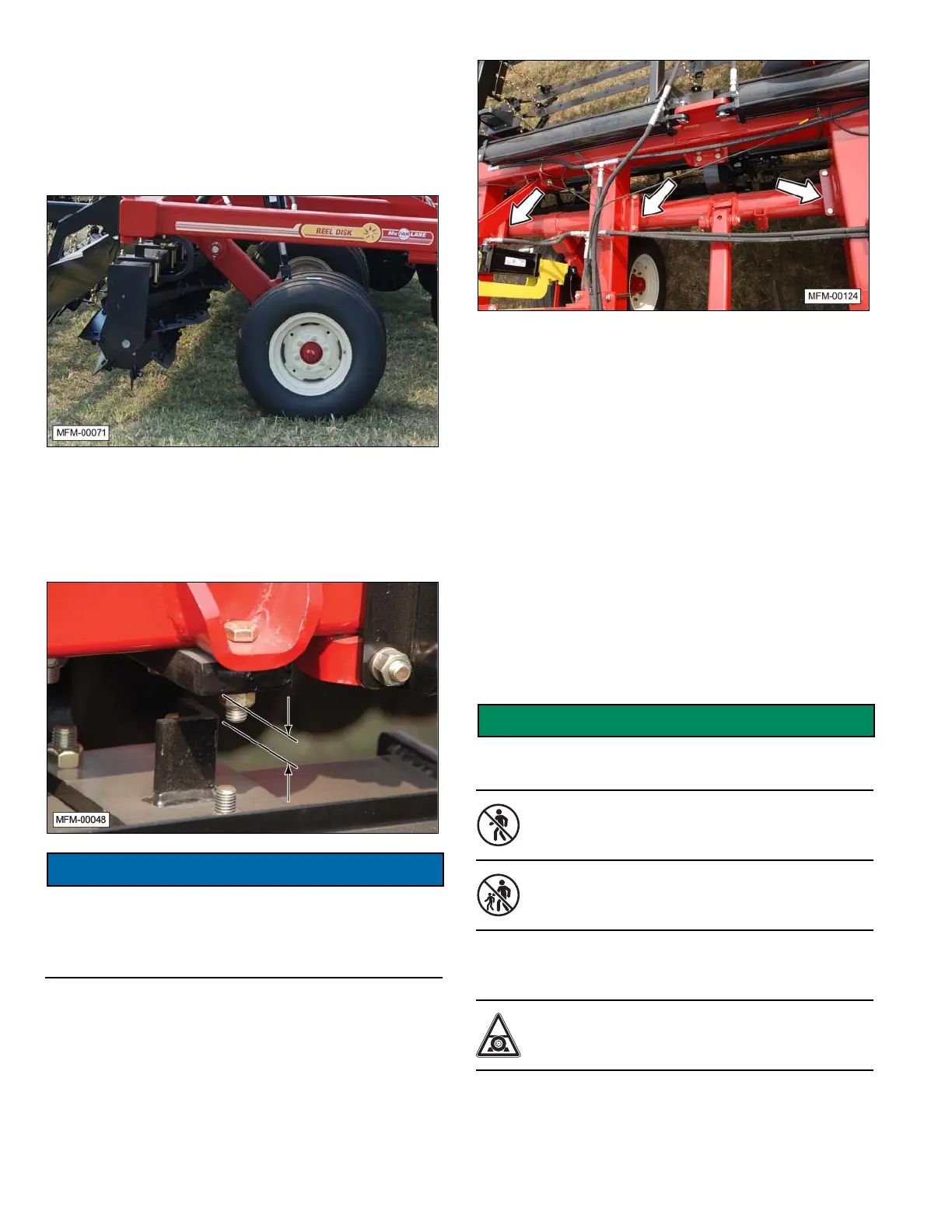

To replace a spiral reel blade:
1. Remove the bolts that secure the blade to the center
plate.
2. Install a new blade with 5/8-11 x 2-1/4” bolts and lock
nuts. Tighten the nut 160 ft.lbs. (215 N·m).
Note: Make sure the blades are positioned with the
beveled edge of the blade closest to the tab on
the center plate, as shown in the photo. Install the
bolts from the blade side.
NOTICE
Make sure the stop plate is not in constant contact
with the C-spring during normal operation. Reduce
the depth setting of the spiral reel to reduce the
constant contact.
Axle Assembly Wear Sleeves
No maintenance is required on the four axle mounting
bearings. Check for excessive wear annually. To replace
the bearings:
1. Support the main frame.
2. Support the wheel assembly and wheel lift cylinders to
relieve the pressure on the bearings.
3. Remove the bearing retainer caps (center bearings)
and end caps (outer bearings).
4. Insert four new bearing wear sleeves. Do not replace
just one sleeve.
5. Reinstall the retainers and caps.
Storage
Safety
SAFETY
INSTRUCTIONS
Follow all operating and safety instructions found in
this manual when storing this equipment.
Store the unit in an area away from human
activity.
Do not permit children to play on or around
the stored unit at any time.
Make sure the unit is stored in an area with a fi rm and
level base to prevent it from tipping or sinking into
the ground.
Block the wheels to prevent the unit from
rolling.
Placing Into Storage (Disk Coatings)
Apply a thin layer of grease to all exposed metal surfaces
of the disks, reel, and reels blades.
