McFarlane RD-4125 - Wing Frame, Inside for RD-4145

800-627-8569 59 Reel Disk from McFarlane Mfg.

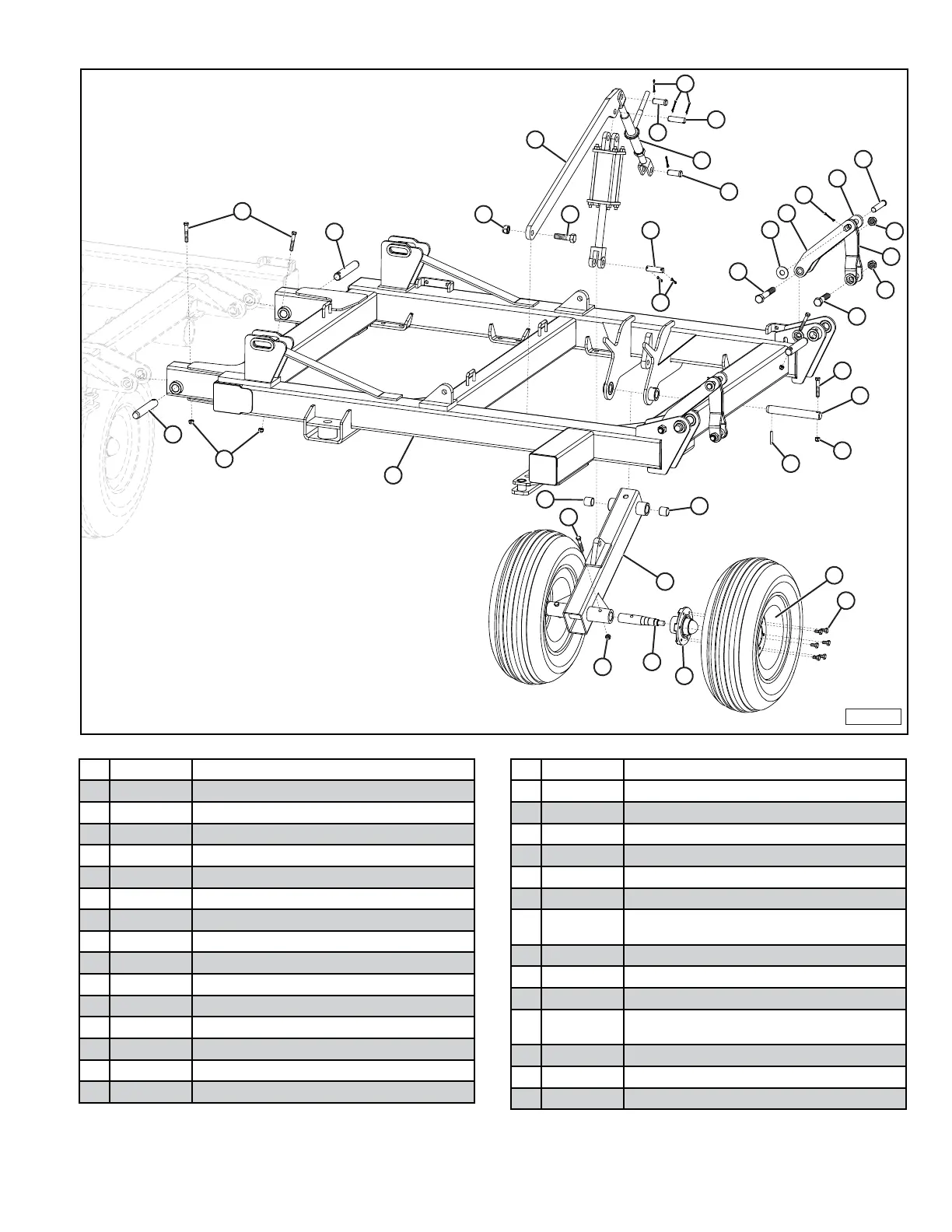

Wing Frame, Inside for RD-4145
16
7
16
16
9
7
10
11
29
24
24
5
26
27
28
1
22
20
2
5
6
8
3
3
9
10
4
18
17
13
14
21
23
19
15
25
11
12
MFM-00099
Item Part Number Description
1 BHY-5635 9/16-12 X 3-1/2 GRADE 8 BOLT
2 NLT-5612 9/16-12 TOP LOCK NUT
3 RT-2107 WING HINGE PIN, 1-1/2 X 9-5/8
4 BHY-1033 1-8 X 3-1/4 GRADE 8 HEX BOLT
5 NLT-1008 1-8 TOP LOCK NUT
6 RD-4624 WING AXLE CYLINDER ARM
7 HYO-2103 CYLINDER CLEVIS PIN, 1 X 3
8 HYO-2008 RATCHET JACK, 8” STROKE
9 HD-1149 1 X 2-1/2 CLEVIS PIN
10 BHY-5635 9/16-12 X 3-1/2 GRADE 8 BOLT
11 NLT-5612 9/16-12 TOP LOCK NUT
12 RD-5061 WING AXLE PIVOT PIN
13 CL-1005 PIN, CLEVIS, 1 X 5
14 RD-4423 WING LINKAGE ASSEMBLY
15 FWP-0100 1” PLAIN FLAT WASHER
Item Part Number Description
16 CP-3620 3/16 X 2 COTTER PIN
17 BHY-1065 1-8 X 6-1/2 GRADE 8 HEX BOLT
18 RD-4888 WING AXLE, DUAL
19 WDL-2505 WING AXLE SPINDLE
20 HD-1371 6-HOLE HUB ASSEMBLY
21 HD-1368 RIM, 15X8, 6 BOLT, 2900 LB.
22
RD-4996
RD-4997
WING FRAME ASSEMBLY, LEFT INSIDE
WING FRAME ASSEMBLY, RIGHT INSIDE
23 WB-5010 WHEEL BOLTS, 1/2-20 X 1-3/4
24 RD-4889 BUSHING
25 RD-4423 ARM
26
RD-4425
RD-4426
LEVER, LH
LEVER, RH
27 NLT-1008 1-8 TOP LOCK NUT
28 BHY-1065 1-8 X 6-1/2 GRADE 8 HEX BOLT
29 RD-5062 ROLL PIN, 1/2 X 2-1/2
