McFarlane RD-4125 - Page 58

Reel Disk from McFarlane Mfg. 58 800-627-8569

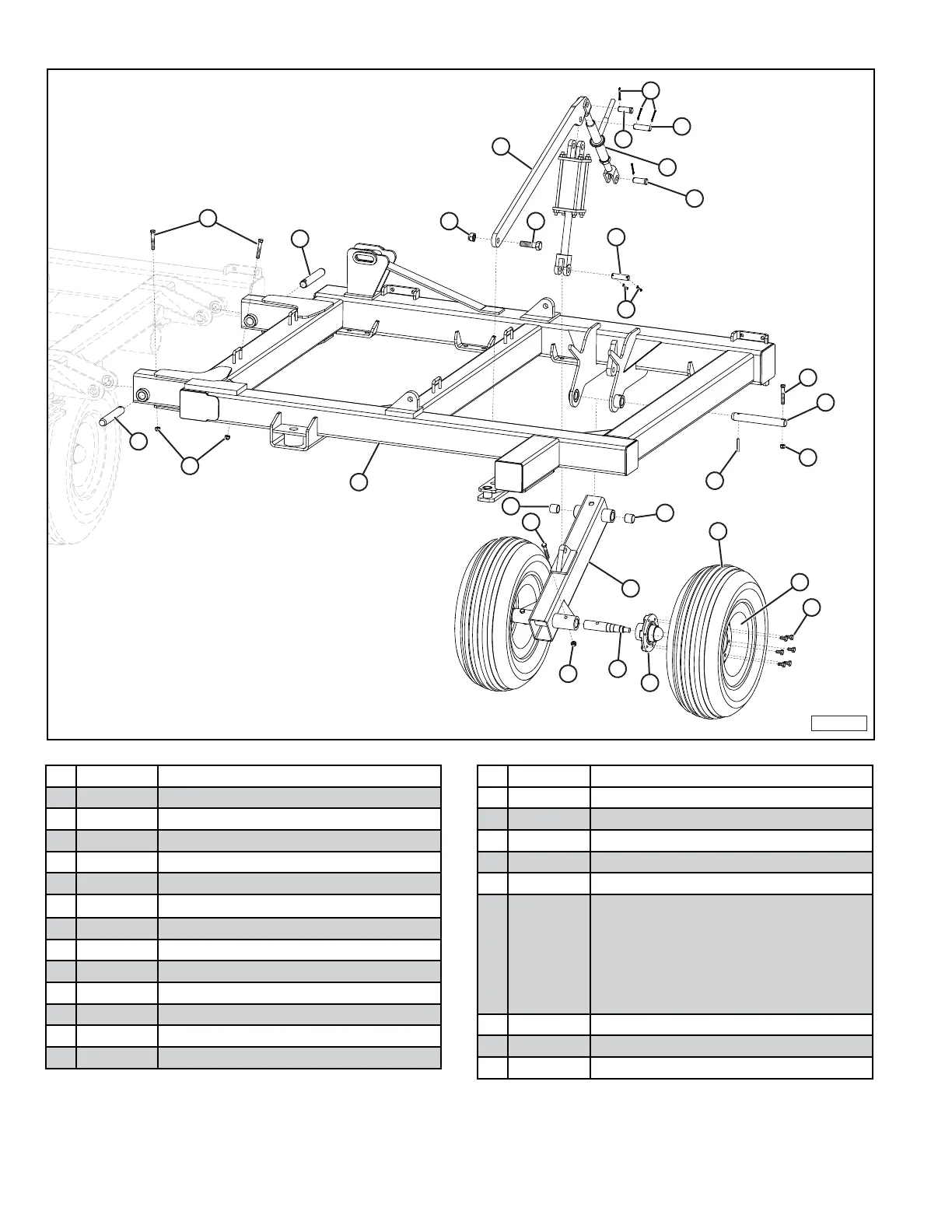

Wing Frame for RD-4120, 4125, 4130 and 4135
7
17
8
8
10
7
11
12
21
11
21
22
1
19
16
2
5
6
9
3
3
10
4
14
18
20
15
12
13
MFM-00098
Item Part Number Description
1 BHY-5635 9/16-12 X 3-1/2 GRADE 8 BOLT
2 NLT-5612 9/16-12 TOP LOCK NUT
3 RT-2107 WING HINGE PIN, 1-1/2 X 9-5/8
4 BHY-1033 1-8 X 3-1/4 GRADE 8 HEX BOLT
5 NLT-1008 1-8 TOP LOCK NUT
6
RD-4624 WING AXLE CYLINDER ARM
7 HYO-2103 CYLINDER CLEVIS PIN, 1 X 3
8 CP-3620 3/16 X 2 COTTER PIN
9 HYO-2008 RATCHET JACK, 8” STROKE
10 HD-1149 1 X 2-1/2 CLEVIS PIN
11 BHY-5635 9/16-12 X 3-1/2 GRADE 8 BOLT
12 NLT-5612 9/16-12 TOP LOCK NUT
13 RD-5061 WING AXLE PIVOT PIN
Item Part Number Description
14 RD-4888 WING AXLE ASSEMBLY, DUAL (all models)
15 WDL-2505 SPINDLE, 1-3/4 X 9-1/2
16 HD-1371 6-HOLE HUB ASSEMBLY
17 11L-15 8T TIRE ONLY, 11L – 15, 8 PLY
18 HD-1368 RIM, 15 X 8, 6-BOLT, 2900 LB
19
RD-4988
RD-4989
RD-4990
RD-4991
RD-4892
RD-4893
RD-4993
RD-4994
WING FRAME, LEFT (4120)
WING FRAME, RIGHT (4120)
WING FRAME, LEFT (4125)
WING FRAME, RIGHT (4125)
WING FRAME, LEFT (4130)
WING FRAME, RIGHT (4130)
WING FRAME, LEFT (4135)
WING FRAME, RIGHT (4135)
20 WB-5010 WHEEL BOLTS, 1/2-20 X 1-3/4
21 RD-4889 BUSHING
22 RD-5062 ROLL PIN, 1/2 X 2-1/2
