McFarlane RD-4125 - Wing Frame, Outside for RD-4145

Reel Disk from McFarlane Mfg. 60 800-627-8569

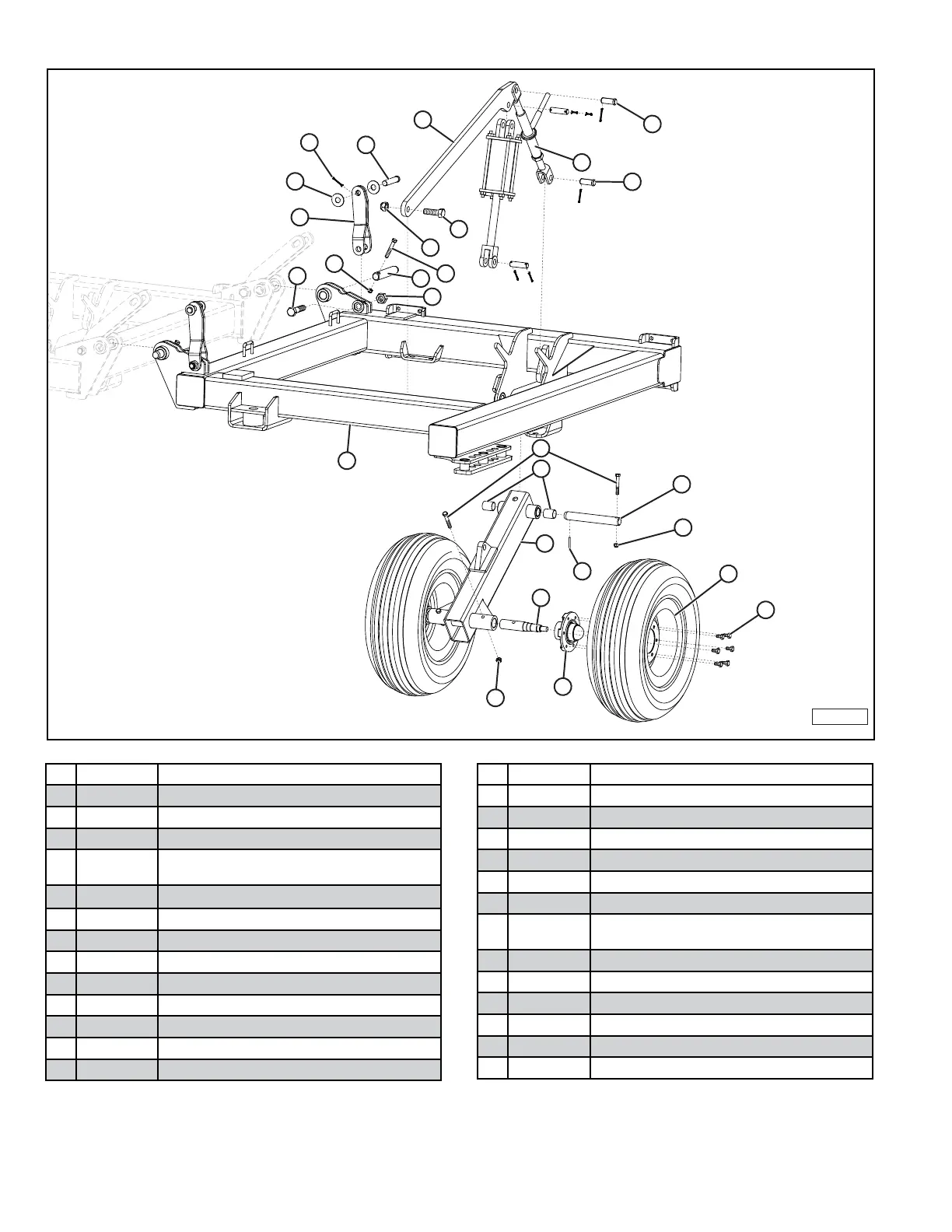

Wing Frame, Outside for RD-4145
6
4
22
23
24
5
1
2
11
9
19
21
8
3
15
16
25
18
12
20
17
26
10
13
12
8
12
MFM-00100
Item Part Number Description
1 BHY-5635 9/16-12 X 3-1/2 GRADE 8 BOLT
2 NLT-5612 9/16-12 TOP LOCK NUT
3 SPR-2712 HINGE PIN, 1-1/2 X 8-1/4
4
RD-4425
RD-4426
WING FOLD ARM, LEFT
WING FOLD ARM, RIGHT
5
NLT-1008 1-8 TOP LOCK NUT
6 BHY-1045 1- 8 X 4-1/2 GRADE 8 HEX BOLT
7 RD-4426 WING FOLD ARM, RIGHT
8 HD-1149 CLEVIS PIN, 1 x 2-1/2
9 RD-4624 WING AXLE CYLINDER ARM
10 HYO-2008 RATCHET JACK, 8” STROKE
11 NLT-1008 1-8 TOP LOCK NUT
12 NLT-5612 9/16-12 TOP LOCK NUT
13 BHY-5635 9/16-12 X 3-1/2 GRADE 8 BOLT
Item Part Number Description
14 NLT-5612 9/16-12 TOP LOCK NUT
15 RD-5061 WING AXLE PIVOT PIN
16 RD-4888 WING AXLE ASSEMBLY, DUAL
17 WDL-2505 WING AXLE SPINDLE
18 HD-1371 6-HOLE HUB ASSEMBLY
19 HD-1368 RIM, 15 X 8, 6 BOLT, 2900 LB.
20
RD-4998
RD-4999
WING FRAME ASSEMBLY, LEFT OUTSIDE
WING FRAME ASSEMBLY, RIGHT OUTSIDE
21 WB-5010 WHEEL BOLTS, 1/2-20 X 1-3/4
22 CL-1005 CLEVIS PIN
23 CP-3620 COTTER PIN
24 FW-0100 WASHER
25 RD-4889 BUSHING
26 RD-5062 ROLL PIN, 1/2 X 2-1/2
