McFarlane RD-4125 - Page 54

Reel Disk from McFarlane Mfg. 54 800-627-8569

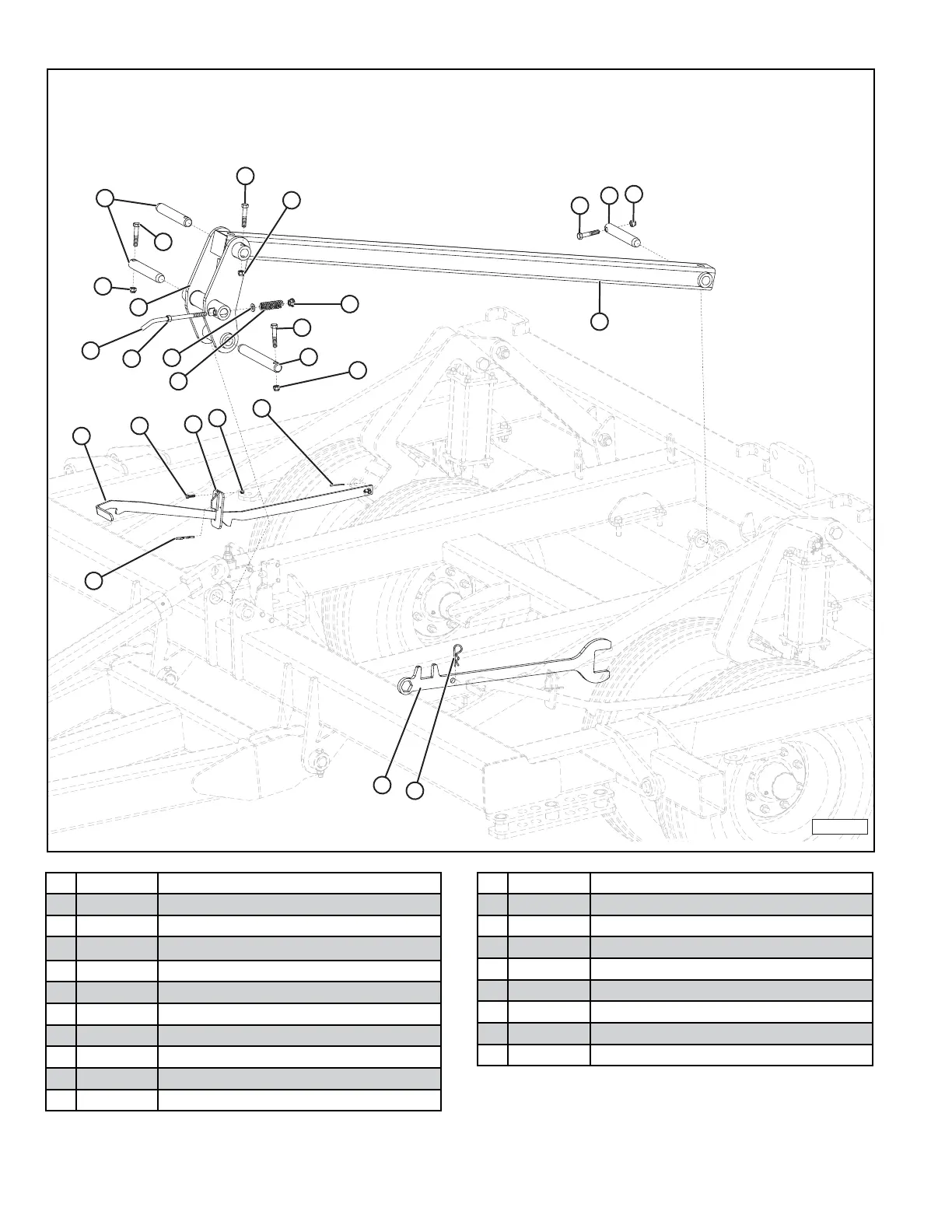

Level Lift and Cylinder Lock for RD-4100 Series
8
4
1
2
3
12
5
13
12
11
7
14
15
16
17
18
11
10
10
10
8
9
11
11
10
6
MFM-00082
Item Part Number Description
1 BH-2510 1/4 – 20 X 1 GRADE 5 HEX BOLT
2 HYS-1104 CYLINDER LOCK HANDLE LOCK
3
NLT-2520 1/4 - 20 TOP LOCK NUT
4 HYS-1103 CYLINDER LOCK HANDLE
5 CP-1810 COTTER PIN, 1/8 X 1
6 RT-3109 LEVEL LIFT REAR TUBE
7 RD-4912 LEVEL LIFT PIVOT PLATE
8 RT-2124 LEVEL LIFT TUBE PIN, 1-1/4 X 7-1/2
9 RT-3107 PIVOT PLATE PIN, 1-1/4 X 9-1/2
10 BH-5028 1/2-13X 2-3/4 GRADE 5 HEX BOLT
Item Part Number Description
11 NLT-5013 1/2-13 TOP LOCK NUT
12 PB-0009 BRIDGE PIN #9
13 RT-2115 TURNBUCKLE WRENCH
14 RD-4914 HYDRAULIC STOP CRANK
15 NH-5020 1/2-20 NUT
16 RD-5060 LEVELER SPRING BASE
17 RD-4355 LEVELER SPRING
18 RD-5059 LEVELER SPRING END
