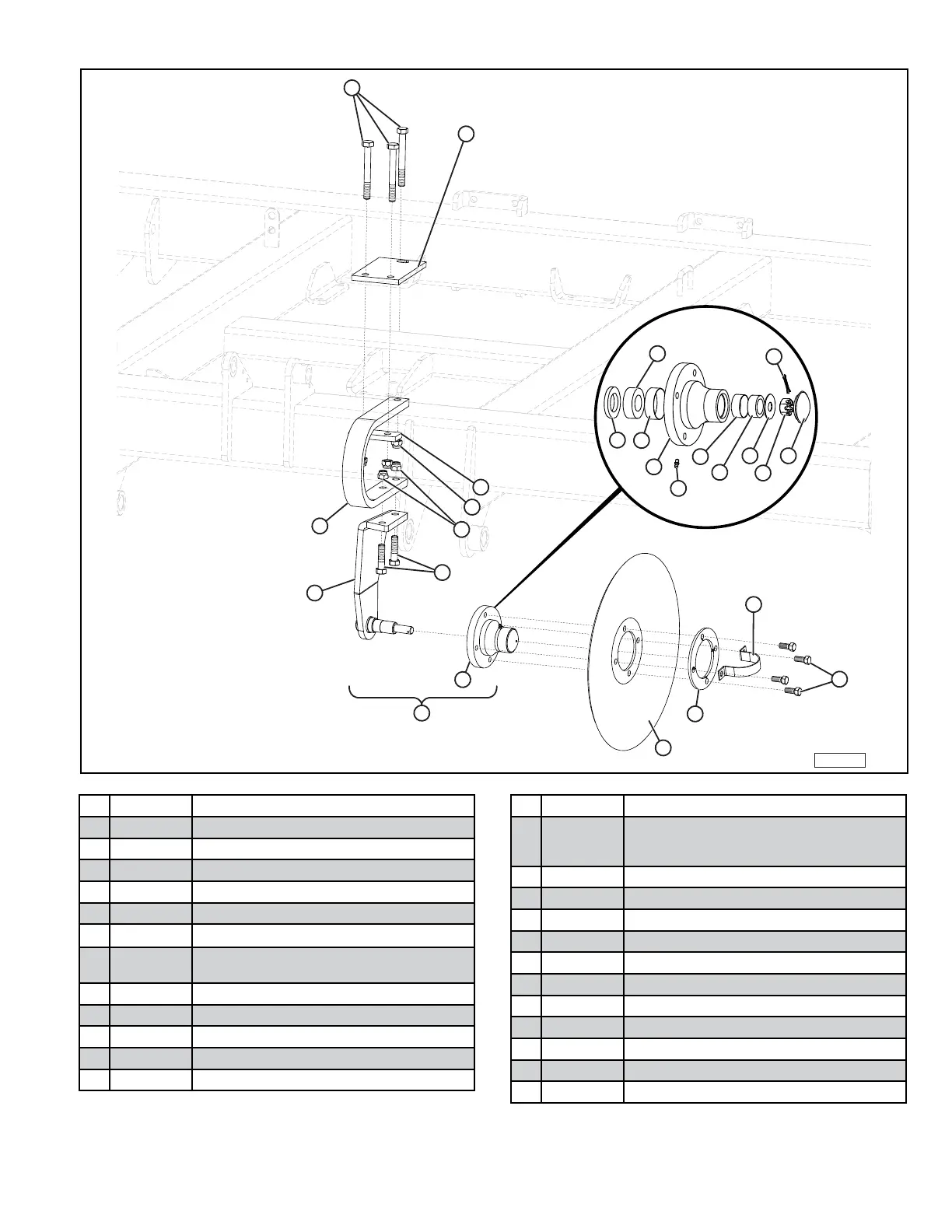

McFarlane RD-4125 - Page 65

800-627-8569 65 Reel Disk from McFarlane Mfg.
Center Covering Disk For RD-4100 Series
14
15
16
17
18
19
20
21
22
23
24
1
2
5
7
8
9
10
11
12
6
3
4
4
13
MFM-00094
Item Part Number Description
1 BH-6355 5/8-11 X 5-1/2 GRADE 5 HEX BOLT
2 RD-4464 SPRING CLAMP PLATE
3 RD-4432 SPRING CLAMP PLATE
4 NLT-6311 5/8-11 TOP LOCK NUT
5 QT-1027 CENTER DISK SPRING
6 BH-6325 5/8-11 X 2-1/2 GRADE 5 HEX BOLT
7
RD-4902
RD-4901
LEVELER DISK MOUNT ASSY RT
LEVELER DISK MOUNT ASSY LT
8 RD-5092 HUB RETAINER
9 HD-1170 4-BOLT HUB ASSEMBLY
10 QT-1025 BLADE, CONCAVE, 4-BOLT, 20”
11 QT-1026 CENTER DISK HUB PLATE
12 BHF-5013 WHEEL STUD, 1-1/4 GD 8
Item Part Number Description
13 RD-5095
RD-5096
LEVELER DISK ASSY W/HUB LT
LEVELER DISK ASSY W/HUB RT
(includes items 7 and 9)
14 HD-1160 GREASE SEAL
15 HD-1162 INNER BEARING
16 HD-1171 INNER RACE
17 HD-1161 HUB WITH RACES, 4 HOLE
18 GZ-2528 ZERK, GREASE
19 HD-1172 OUTER RACE
20 HD-1163 OUTER BEARING
21 HD-1164 SPINDLE FLAT WASHER
22 HD-1165 SPINDLE CASTLE NUT
23 HD-1167 DUST CAP
24 CP-5312 PIN, COTTER .150 x 1-1/4
* Items 14 - 24 are part of RD-5092 Hub Retainer Assembly, Item 9.
