800-627-8569 89 Reel Disk from McFarlane Mfg.

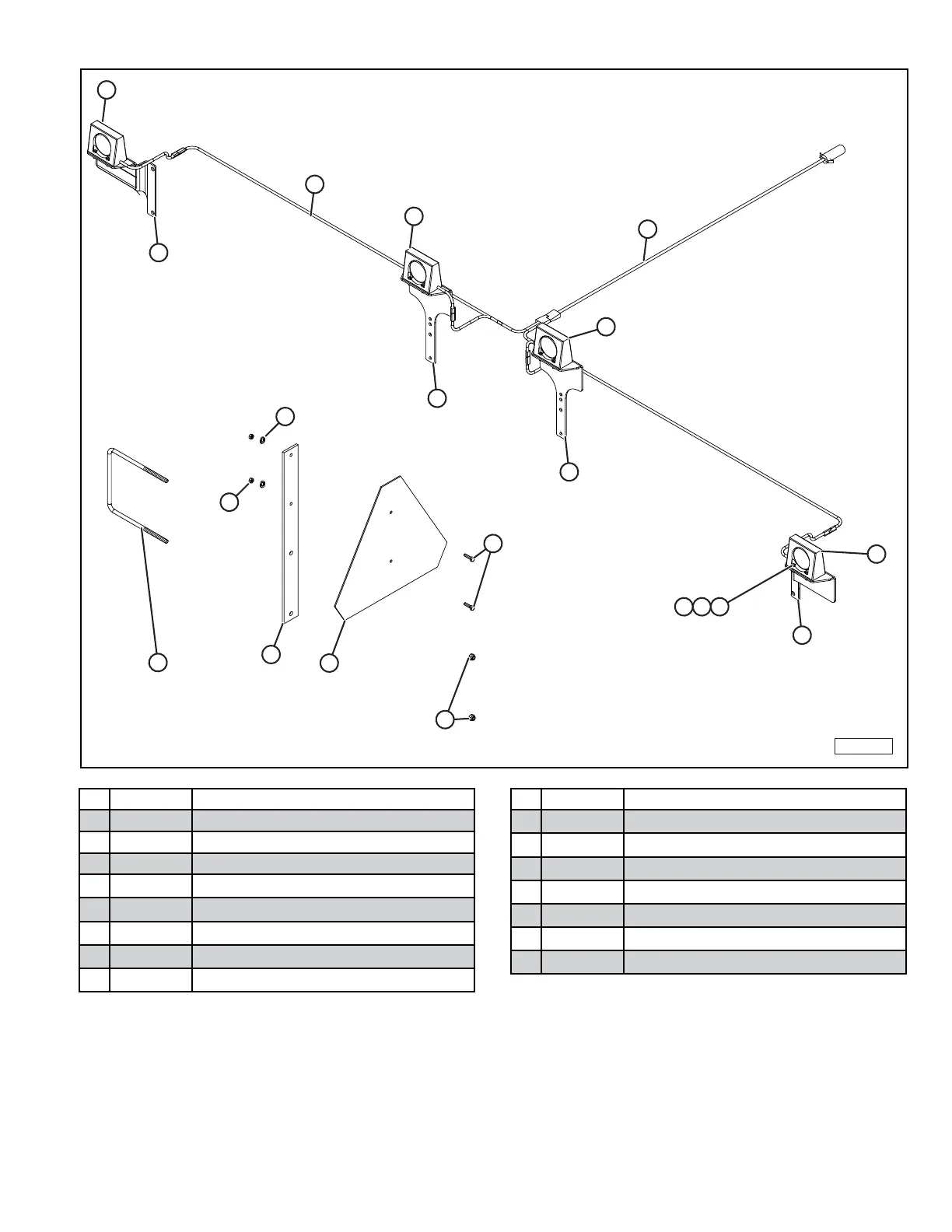

Lighting Diagram for RD-4100 Series
7
2
3
5
4
4
6
111215
3
1
7
13
8
14
9
10
11
12
MFM-00089
Item Part Number Description
1 LB-1320 LIGHT HARNESS, STRAIGHT , 20’
2 LB-1620 LIGHT HARNESS, WISHBONE
3 LB-1107 LIGHT, RED
4 RD-5056 LIGHT MOUNT, SYMMETRICAL
5 RD-5057 LIGHT MOUNT, SINGLE OUTER LT
6 RD-5058 LIGHT MOUNT, SINGLE OUTER RT
7 LB-1106 LIGHT AMBER
8 LB-1203 SMV MOUNT BRACKET
Item Part Number Description
9 MM-1300 SMV SIGN
10 BH-2510 1/4-20 x 1 BOLT
11 LW-0025 1/4 LOCK WASHER
12 NH-2520 1/4-20 NUT
13 BU-1278 1/2-13 x 7 x 8 U-BOLT
14 NLT-5013 1/2-13 NUT, TOP LOCK
15 BH-2513 1/4-20 x 1-1/4 BOLT
