Reel Disk from McFarlane Mfg. 92 800-627-8569

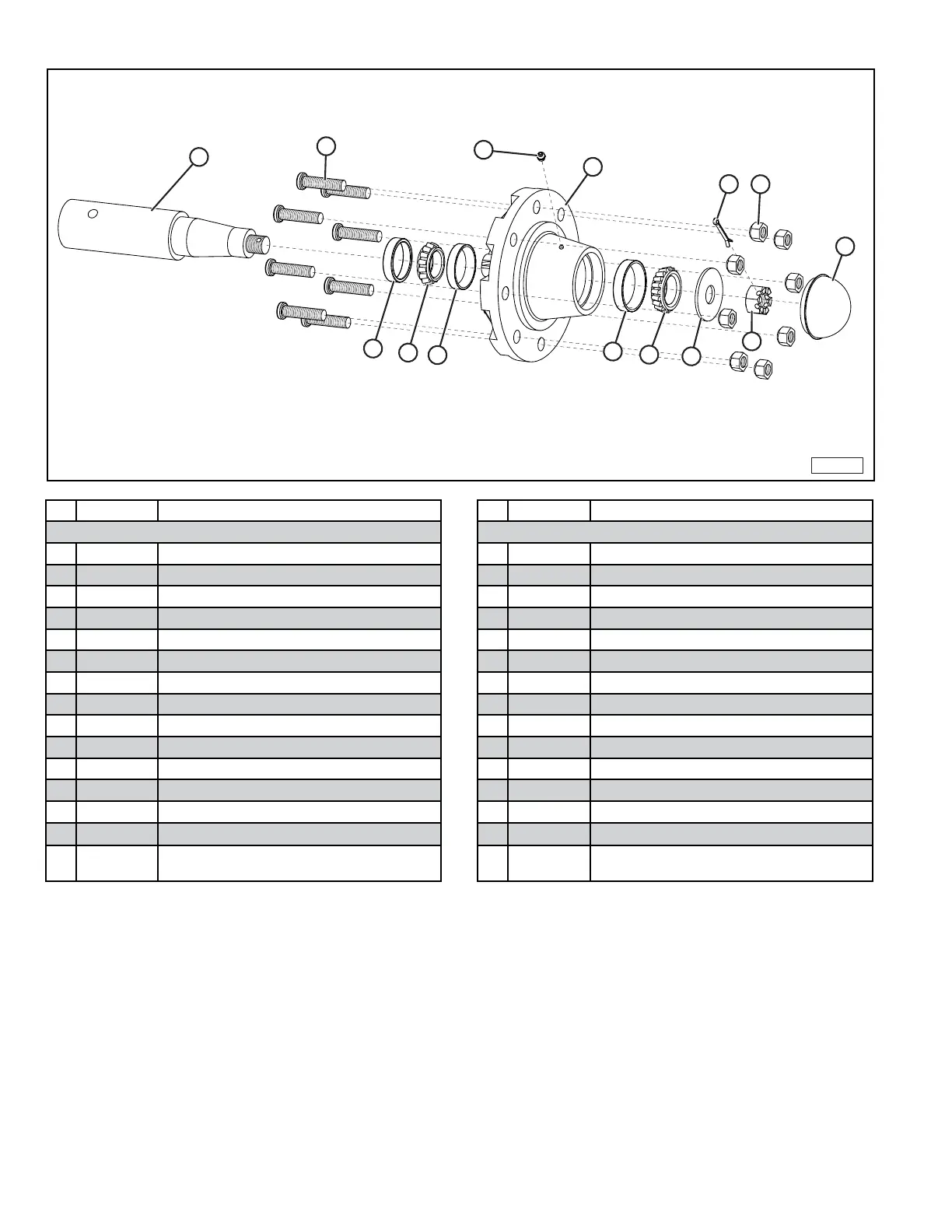

Hub Components for RT-3181/RD-4580
MFM-00105
7
9
1
8
2
6
4
3
13
11
14
10
12
5
Item Part Number Description
8-BOLT HUB, 6000 LB (12.5L HWY – 15 x 10 RIM)
1 RT-3180 SPINDLE, 2-3/4 X 12-1/2
2 RT-3193 WHEEL STUD 5/8-18 X 2-1/2
3 RT-3182 GREASE SEAL, 8 BOLT HD HUB
4 RT-3183 INNER BEARING
5 RT-3191 INNER RACE
6 GZ-0601 GREASE ZERK
7 RT-3184 HUB WITH RACES, 8 HOLE HUB
8 RT-3192 OUTER RACE
9 RT-3186 OUTER BEARING
10 RT-3190 SPINDLE FLAT WASHER, 1 5/16
11 CP-7320 COTTER PIN (0.207 X 2)
12 WN-0063 WHEEL NUTS 5/8
13 RT-3187 SPINDLE HEX CASTLE NUT, 1-14
14 RT-3188 DUST CAP
— RT-3181 8-BOLT HUB ASSEMBLY, 6000 LB (Includes
items 3,4,7,9,14)
Item Part Number Description
8-BOLT HUB, 7500 LB (12.5L-16 HWY - 16.5 x 9.75 RIM)
1 RD-4416 SPINDLE, 3 X 12-1/2
2 RT-3193 WHEEL STUD 5/8-18 X 2-1/2
3 RD-4582 GREASE SEAL, 8 BOLT 7500 LB HUB
4 RD-4583 INNER BEARING
5 RD-4584 INNER RACE
6 GZ-0601 GREASE ZERK
7 RD-4581 HUB WITH RACES, 8 BOLT 7500 LB HUB
8 RT-3192 OUTER RACE
9 RT-3186 OUTER BEARING
10 RT-3190 SPINDLE FLAT WASHER, 1 5/16
11 CP-7320 COTTER PIN (0.207 X 2)
12 WN-0063 WHEEL NUTS 5/8
13 RT-3187 SPINDLE HEX CASTLE NUT, 1-14
14 RT-3188 DUST CAP
— RD-4580 8-BOLT HUB ASSEMBLY, 7500 LB (Includes
items 3,4,7,9,14)
