McHale 995 L+T Square Bale Wrapper
61
11.6 Gearbox cross shaft roll pin replacement
As a secondary overload protection device, the gearbox cross shaft is protected by roll
pins which will shear, when overloaded.
If this occurs, they may be replaced as follows:
1. Remove the 6 x setscrews holding on the cover of the gearbox. Remove the
cover and gasket.
2. Remove all broken parts of the roll pins
3. Ensure the hole in the table cross shaft and the hole in gearbox cross shaft line
up correctly
4. Fit new roll pins (CFA00006 & CFA00009). Do not fit anything other than these!
5. Replace the gearbox cover ensuring the gasket is serviceable. If not, replace
the gasket with a new part (CSE00006).
6. Replace the 6 x setscrews

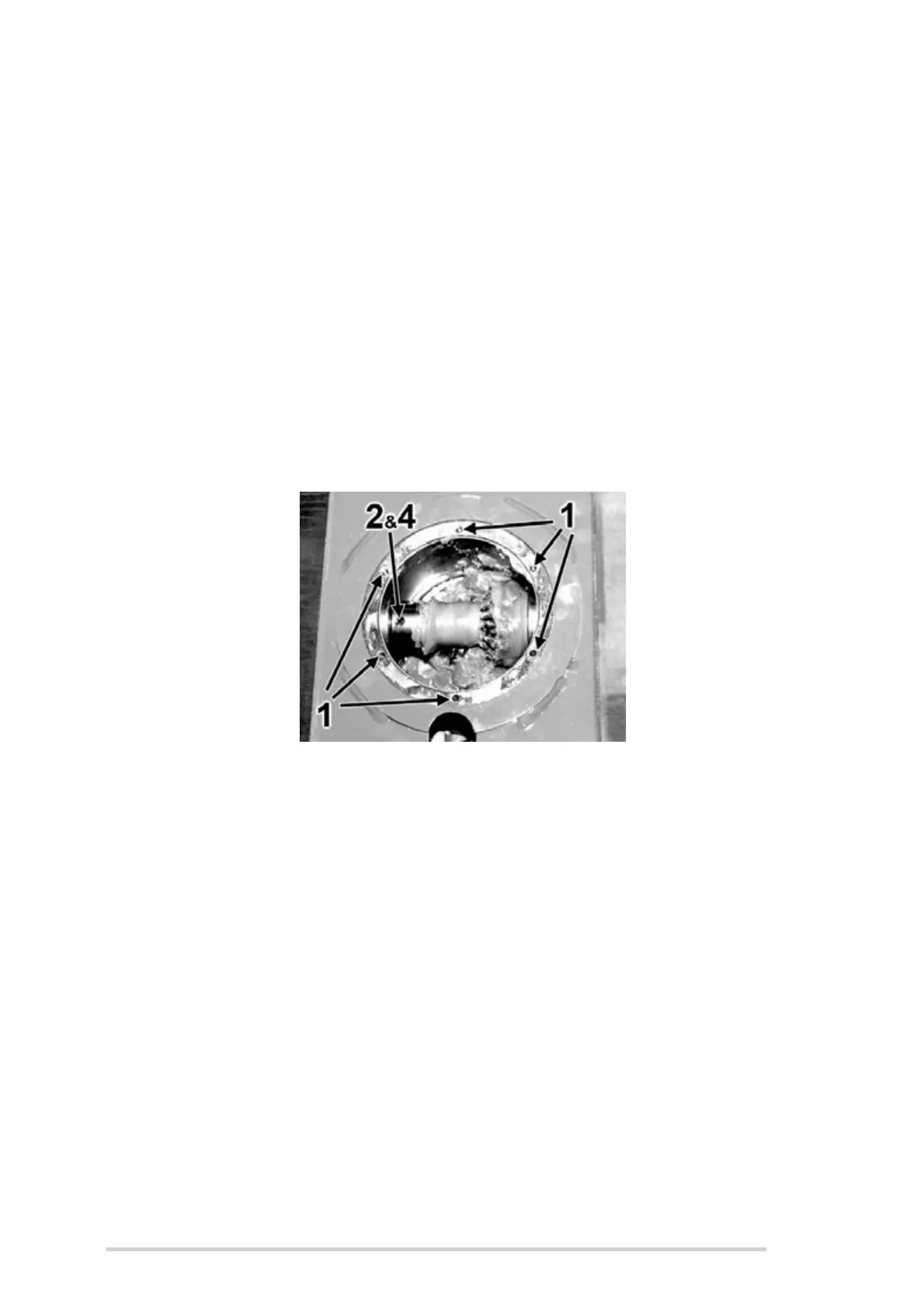

Figure 11.i - Gearbox cross shaft roll pin replacement
11.7 Cut & hold adjustment
The cut & hold may be adjusted both horizontally and vertically to allow for varying
conditions and bales. Adjust as follows:
11.7.1 Horizontal adjustment
1. Loosen the 4 x M16 nyloc nuts holding on the “U” bolts. Do not remove them!
2. Slide the cut & hold to a new position. The plastic film should fall centrally into
the cut & hold. Different bale lengths will affect this.
3. Tighten the 4 x nyloc nuts
