McHale 995 L+T Square Bale Wrapper
53
9.2 Loading plastic film
1. Push back the handle until the dispenser latches open.
2. When removing an old roll, push upwards to latch the top roll holder in the “up”
position. Then remove the old roll core and dispose of it responsibly.
3. Sit the new roll onto the bottom roll holder and align it with the top roll holder.
4. While still the holding roll, pull the cable to release the top roll holder. The roll
of plastic film is now held in position.
5. Thread the film through the dispenser rollers, as per the threading diagram
(Figure 9.c)
6. Tie the end of the plastic film to the bale on the table. Never attempt to clamp
plastic film in the cut & hold mechanism.
7. Close the dispenser by releasing the latch. The roll should now rest against
one of the aluminium rollers.
9.3 Wrapping at the stack with remote control
The following is the recommended method for working the 995 wrapper as a static
machine at the stack, using a remote control. It assumes the bales are well shaped for
wrapping. However since it is impossible to allow for all differing conditions and terrain
it may be necessary for the operator to vary this.

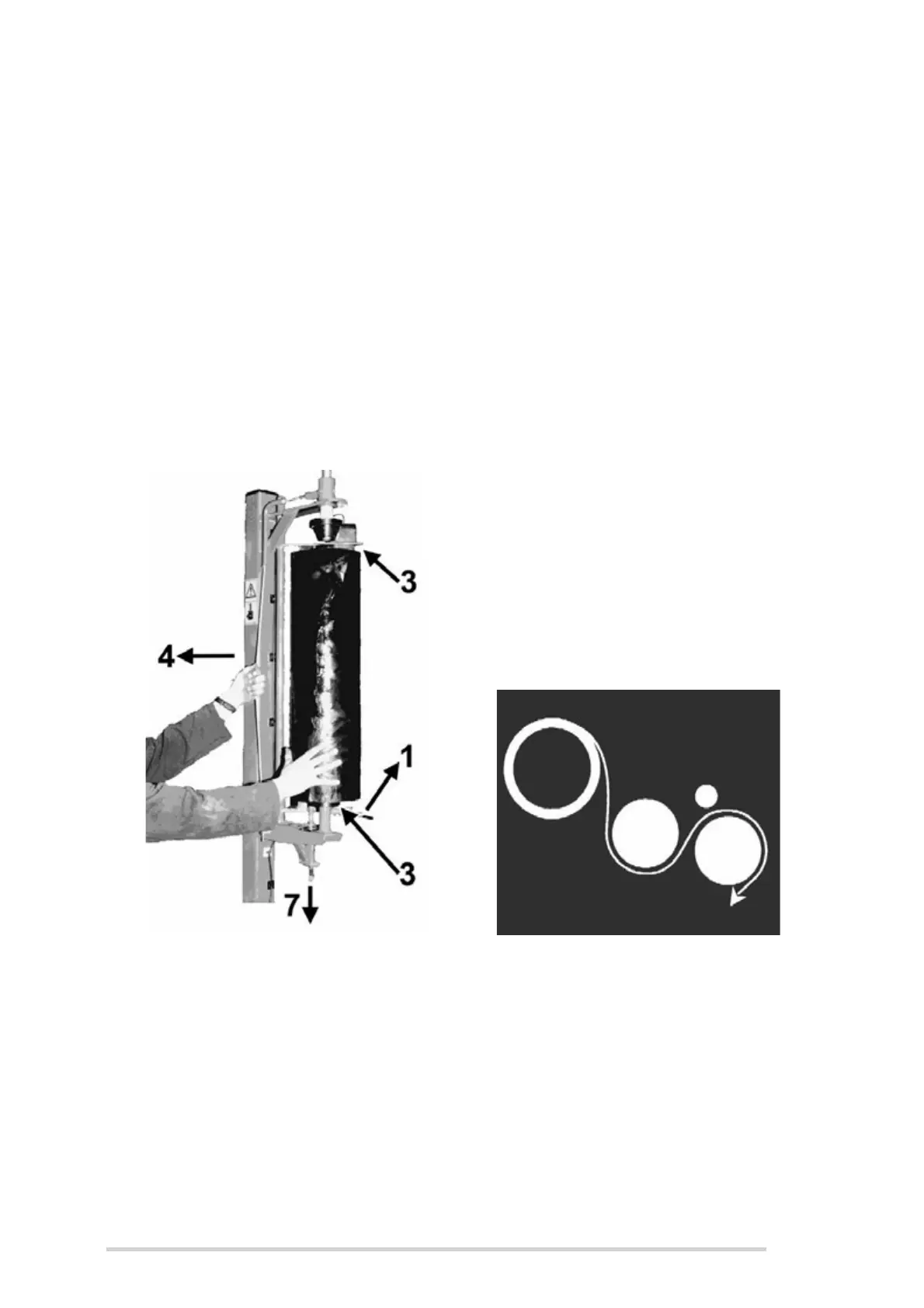

Figure 9.b - Loading plastic film Figure 9.c - Plastic film threading diagram
