McHale F5400 Baler
55
7.3 Unblock floor operation
The drop floor is operated by pulling the cord that is attached to the baler hydraulics.
Pulling the cord and activating the pick-up spool lever downwards, will lower the floor.
Pulling the cord and activating the pick-up spool lever upwards, will raise the floor back
up into the working position. Releasing the cord returns the diverter valve to neutral,
allowing normal activation of the pick-up reel.

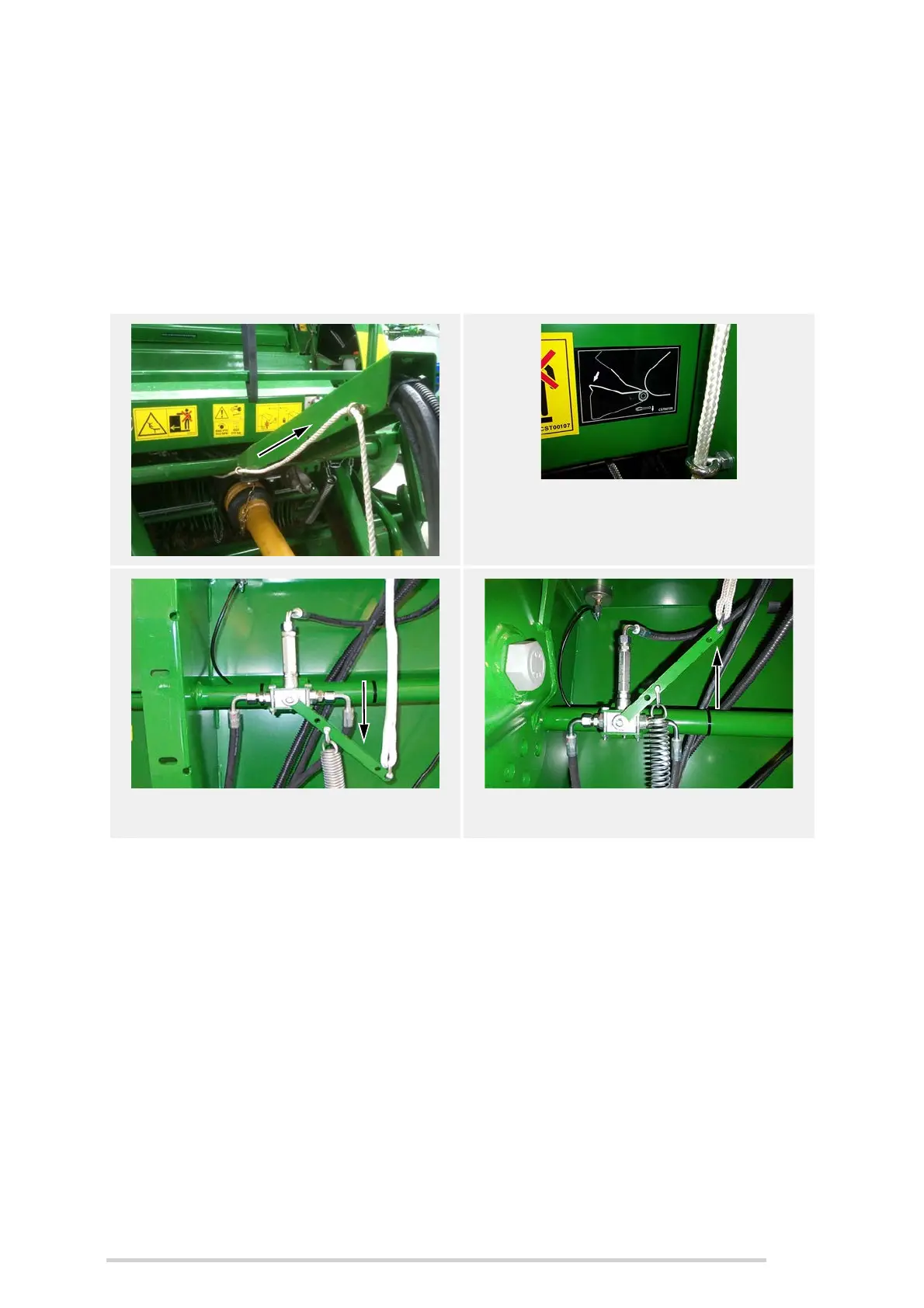

To activate the drop floor, pull the cord
towards the tractor, whilst operating the
pick-up spool-valve lever
Cord slack, with lever set at neutral to
operate the pick-up reel
Cord and lever pulled which allows
activation of the drop floor
