The closest value of H can be selected from table above to determine the most suitable
bolt hole position for B, depending on whether low or high drawbar set-up. Once
adjusted, ensure safety bolt is re-installed and all bolts tightened securely.
6.12 PTO shaft adjustment & maintenance
The length of the PTO shaft is suitable for all known tractor conditions. However, before
the machine is operated for the first time with a new tractor combination, it must be
ensured that there is a minimum sliding clearance of 200 mm left during all angles
between the tractor and the machine. In a case where there is not sufficient sliding
clearance the shaft length must be adjusted according to the PTO shaft manufacturer’s
recommendations that are either attached to the PTO shaft or included with this manual
or both. Maximum 80° angle of movement should never be exceeded, otherwise
permanent damage will result.

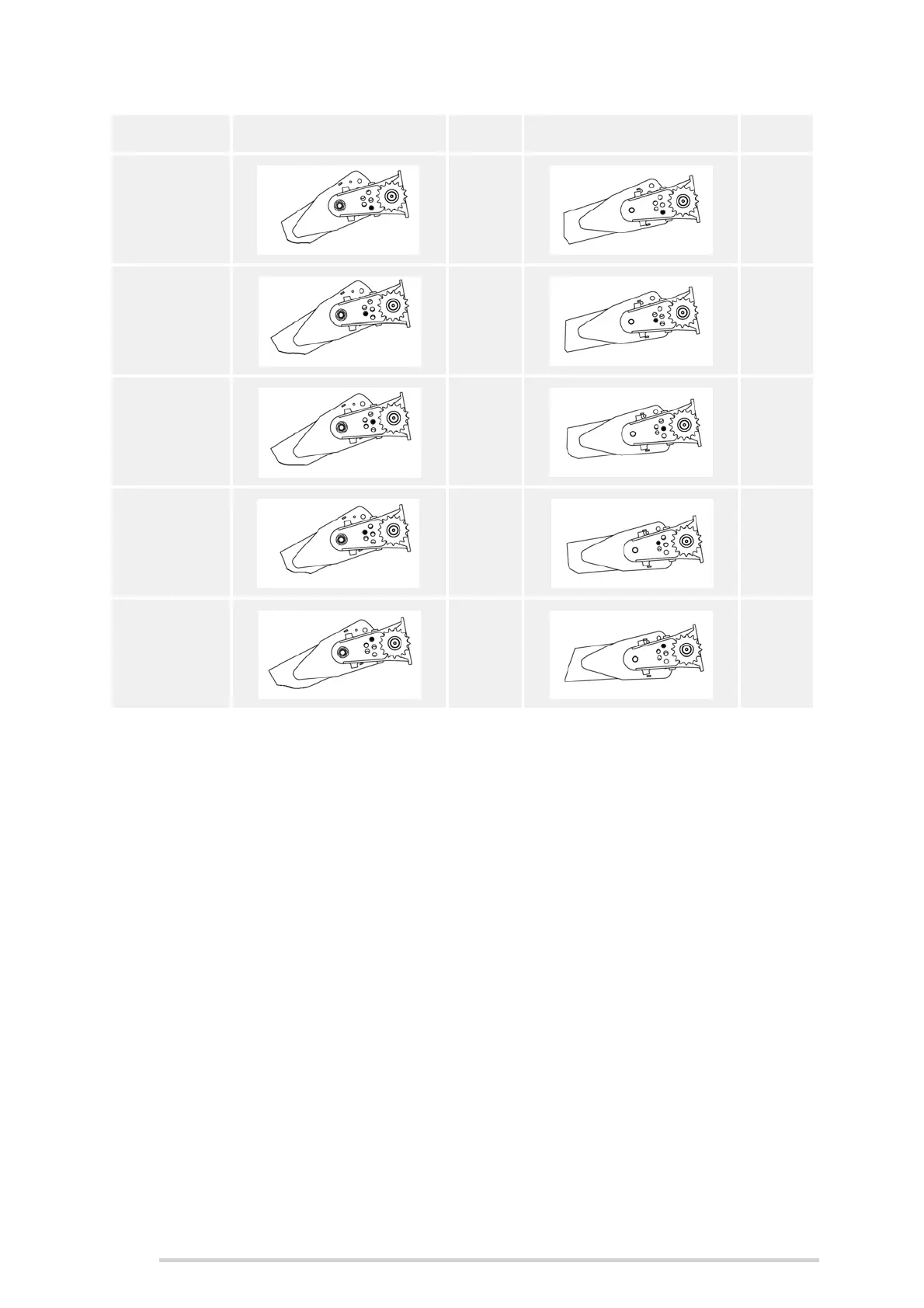

Position Low drawbar setting H High drawbar setting H
B1 410 800
B2 450 880
B3 480 990
B4 520 1030
B5 555 1070
