Installation
Installation
The C52 can be placed upright on a table or shelf,
standing on its four feet. It also can be custom in-
stalled in a piece of furniture or cabinet of your
choice. The four feet may be removed from the bottom
of the C52 when it is custom installed as outlined be-
low. The four feet together with the mounting screws
should be retained for possible future use if the C52
is removed from the custom installation and used free
standing. The required panel cutout, ventilation cutout
and unit dimensions are shown.
Always provide adequate ventilation for your C52.
Cool operation ensures the longest possible operating
life for any electronic instrument. Do not install the
C52 directly above a heat generating component such
as a high powered amplifier. If all the components are
installed in a single cabinet, a quiet running ventila-
tion fan can be a definite asset in maintaining all the
system components at the coolest possible operating
temperature.
A custom cabinet installation should provide the
following minimum spacing dimensions for cool
operation.
Allow at least 2 inches (5.1cm) above the top, 2
inches (5.1cm) below the bottom and 1 inch (2.5cm)
on each side of the Preamplifier, so that airflow is not
obstructed. Allow 20 inches (50.8cm) depth behind the
front panel. Allow 1-7/16 inch (3.7cm) in front of the
mounting panel for knob clearance. Be sure to cut out
a ventilation hole in the mounting shelf according to
the dimensions in the drawing.

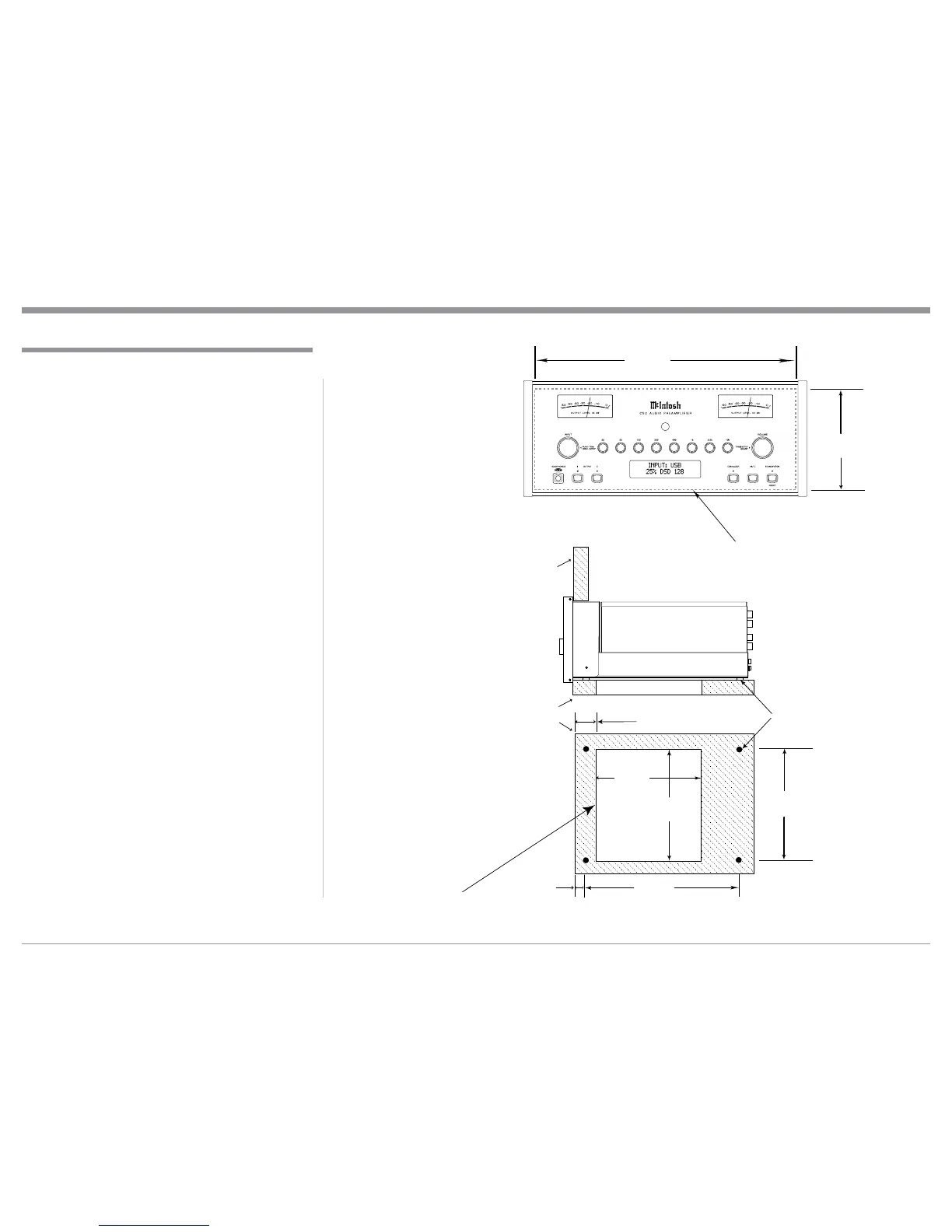

6-5/8"
16.84cm
17-3/16"
43.66cm
Cutout Opening for Custom Mounting
C52 Front Panel
Custom Cabinet Cutout
Cutout
Opening
for
Ventilation
Cutout Opening for Ventilation
Support
Shelf
Chassis
Spacers
C52 Side View
in Custom Cabinet
12-5/16"
31.27cm
Cabinet
Front
Panel
Note: Center the cutout Horizontally
on the unit. For purposes of
clarity, the above illustration
is not drawn to scale.
C52 Bottom View
in Custom Cabinet
15"
38.10cm
9-1/8"
23.18cm
2-1/4"
5.72cm
15"
38.10cm
1-1/16"
2.70cm
