McIntosh MC601 User Manual

11
How to Connect for Bi-Amp
Note: The illustration in figure 6 is connections for
8Ω (ohms) Loudspeakers.
If the Loudspeaker’s impedance is in-between
the available connections, use the nearest lower
impedance connection. Refer to “General Informa-
tion” Note 4 on page 3 for additional information.
WARNING: Loudspeaker terminals are hazard-
ous live and present a risk of electric
shock. For additional instruction on
making Loudspeaker Connections con-
tact your McIntosh Dealer or McIn-
tosh Technical Support.
13. Attach the Terminal Connections Cover to the
MC601 Rear Panel with the previously removed
Screws. Refer to figure 6.
14. Connect the MC601 power cord to an active AC
outlet.
(ohms) connection to match the impedance of the
Loudspeaker, being careful to observe the correct
polarities.
Note: The illustration in figure 5 is connections for
8Ω (ohms) Loudspeakers.
If the Loudspeaker’s impedance is in-between the
available connections, use the nearest lower imped-
ance connection. Refer to “General Information” Note
4 on page 3 for additional information.
WARNING: Loudspeaker terminals are hazardous
live and present a risk of electric shock.
For additional instruction on making
Loudspeaker Connections contact your
McIntosh Dealer or McIntosh Techni-
cal Support.
9. Attach the Terminal Connections Cover to the
MC601 Rear Panel with the previously removed
Screws. Refer to figure 5.
10. Connect the MC601 power cord to an active AC
outlet.
Spade Lug or Wire Connections:
11. Locate the Terminal Connections Cover from the
inside of the MC601 shipping carton. Insert the
just prepared Loudspeaker hookup cables thru the
cover openings. Refer to figure 6.
12. Connect the Loudspeaker hookup cables to the
MC601 Negative Output Terminal and Positive
Output Terminal indentified as 2Ω (ohms), 4Ω
(ohms) or 8Ω (ohms) connection to match the
impedance of the Loudspeaker, being careful to
observe the correct polarities. Insert the spade
lug connector or prepared section of the cable end
into the terminal side access hole, and tighten the
terminal cap until the cable is firmly clamped into
the terminals so the lugs or wire cannot slip out.
Refer to figures 7 and 8.
Banana Plugs are for use in the United States and
Canada only:
5. Locate the Terminal Connections Cover from the
inside of the MC601 shipping carton. Insert the
just prepared Loudspeaker hookup cables thru the
cover openings. Refer to figure 5.
6. Attach the previously prepared bare
wire cable ends into the banana plugs
and secure the connections. Refer to
figure F.
7. Rotate the top of the Output Terminal
Post clockwise until it is nger tight.
Refer to gure G. Then using the
McIntosh Wrench, rotate the top of
the Output Terminal one quarter of
a turn (90° ). Do not over tighten.
Refer to gure E.
8. Referring to figure H,
connect the Loudspeaker
hookup cables with ba-
nana plugs into the hole
at the top of the MC601
Negative and Positive Output Terminals. The termi-
nals are indentified as 2Ω (ohms), 4Ω (ohms) or 8Ω

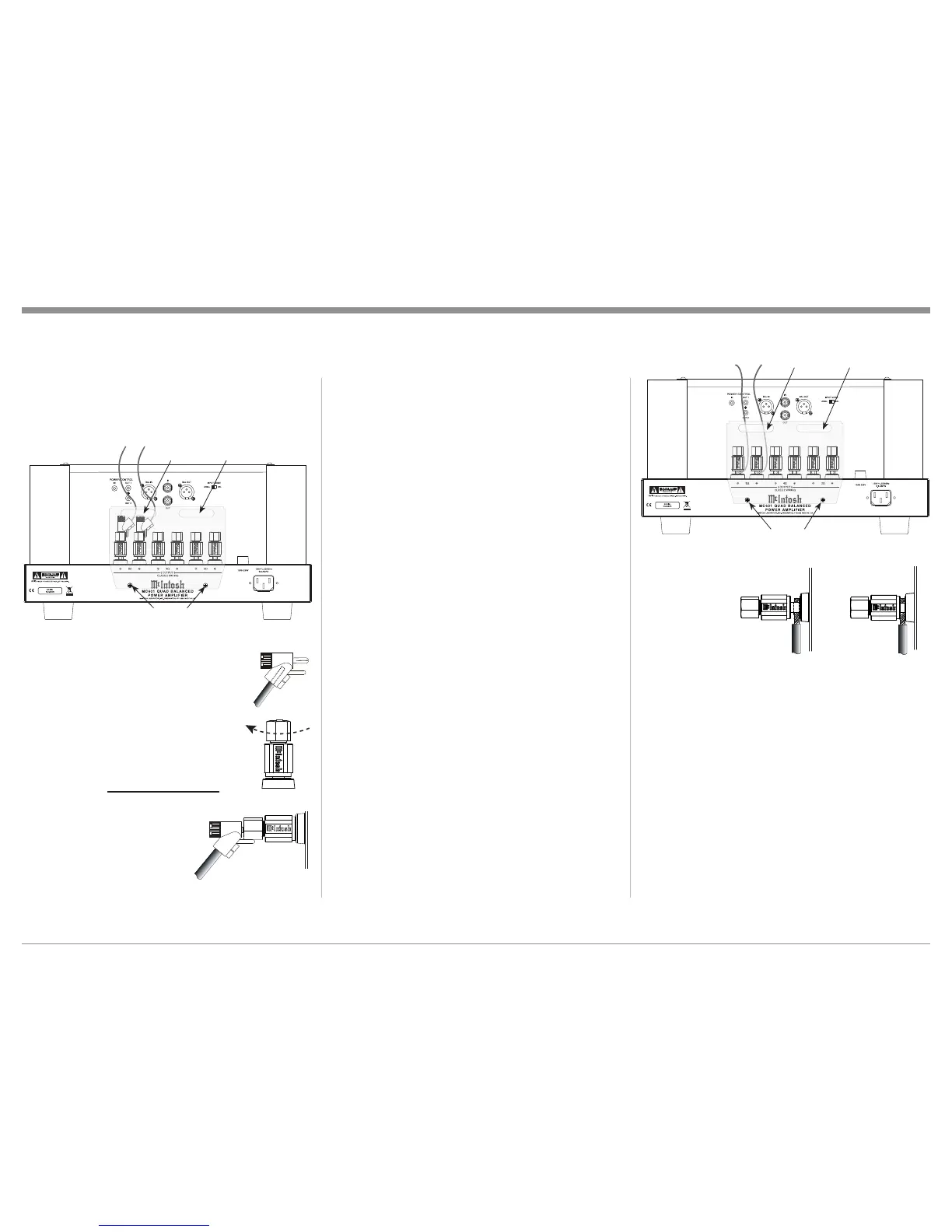

Figure 7
Figure 8
Figure F
Figure H
Figure 5 (Inside USA and Canada)
Cover Openings
Cover Screws
Figure F
Figure H
Figure 6 (Outside USA and Canada)
Cover Openings
Cover Screws
Figure G

McIntosh MC601 Specifications

General

Damping factor	40
Amplifier class	-
Frequency range	10 - 100000 Hz
Output impedance	8 Ω
Audio output channels	1.0 channels
Peak power per channel	600 W
Signal-to-Noise Ratio (SNR)	124 dB
Total Harmonic Distortion (THD)	0.005 %
XLR in	Yes
XLR out	1
Speakers connectivity type	Binding post
Purpose	Performance/stage
Product color	Aluminium, Black
Volume control	Rotary
Connectivity technology	Wired

Weight and Dimensions

Depth	558.8 mm
Width	444.5 mm
Height	239.7 mm
Weight	42180 g
