7
Caution: The Loudspeaker Negative Connections are above chassis ground. Do not combine any connections together, ground them or connect with another MC601.
Connect the MC601 power
cord to a live AC outlet. Refer
to the rear panel to determine
the correct voltage
POWER CONTROL IN
receives turn On/Off
signals from a McIntosh
component
UNBALanced INput
for an audio cable
from a Preamplifier or
A/V Control Center
audio output
INPUT MODE switch
selects between Unbal-
anced or Balanced Input
BALanced INput for
audio cables from a
Preamplifier or A/V
Control Center audio
output
BALanced OUTput for
an audio cable to the next
Power Amplifier Input
OUTPUT Connections for
a 8 ohm Loudspeaker

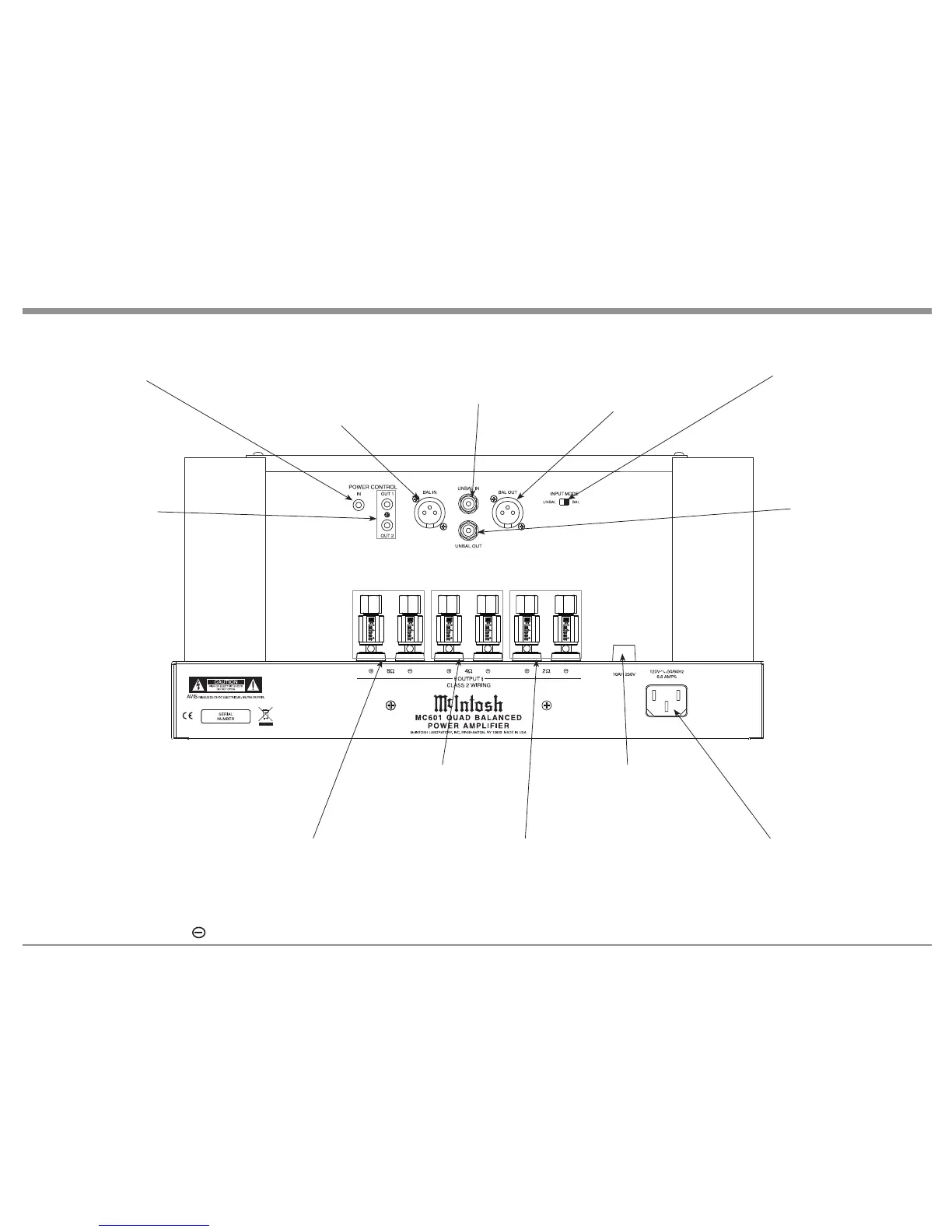

Rear Panel Connections and Switch
Fuse holder, refer to information
on the rear panel of your MC601
to determine the correct fuse
size and rating
OUTPUT Connections for
a 4 ohm Loudspeaker
OUTPUT Connections for
a 2 ohm Loudspeaker
UNBALanced OUTput
for an audio cable to the
next Power Amplifier
Input
POWER CONTROL OUT
1 and 2 send turn On/Off
signals to the next McIn-
tosh Component
To Next Page
