Special installation:

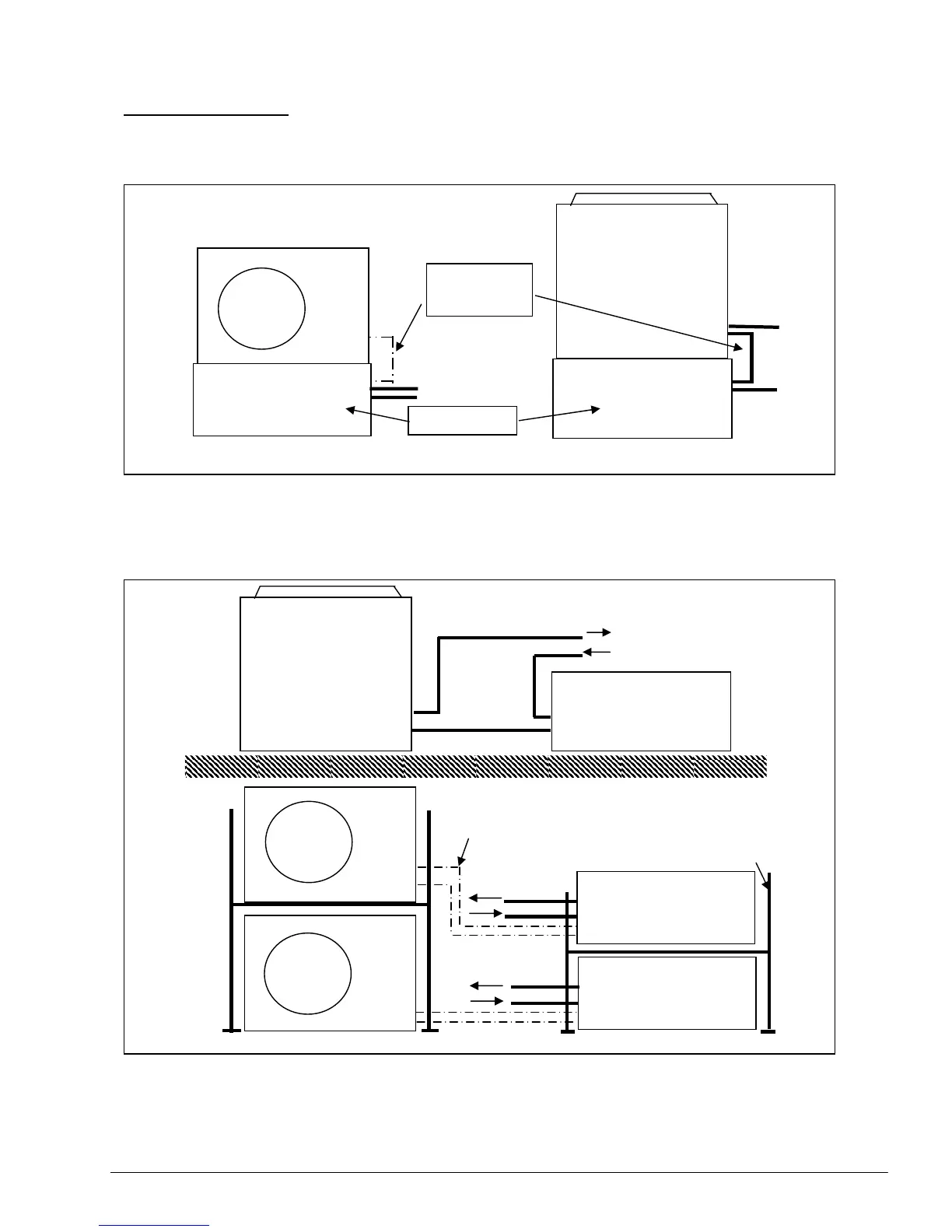

The A and B series mini chiller units have been designed with the refrigerant circuit located in the
top compartment and the hydraulic kit in the bottom compartment:
A-series B-series
Hydraulic kit
Piping
connection
Refri
g
erant
Water
B-series
A
-series
In some special installations whereby the available space (especially the height) is not
sufficient to install the chiller, it is possible to to detach these two compartments and install
them side by side. This is especially useful when there are multiple units which are stacked
together with a steel bracket.
Bracket
Hydraulic kit
Water
p
i
p
es
Refrigerant pipe
connection
Hydraulic kit
Water pipes
Section 1 Page 6
