Drive Torque (Speed Control)

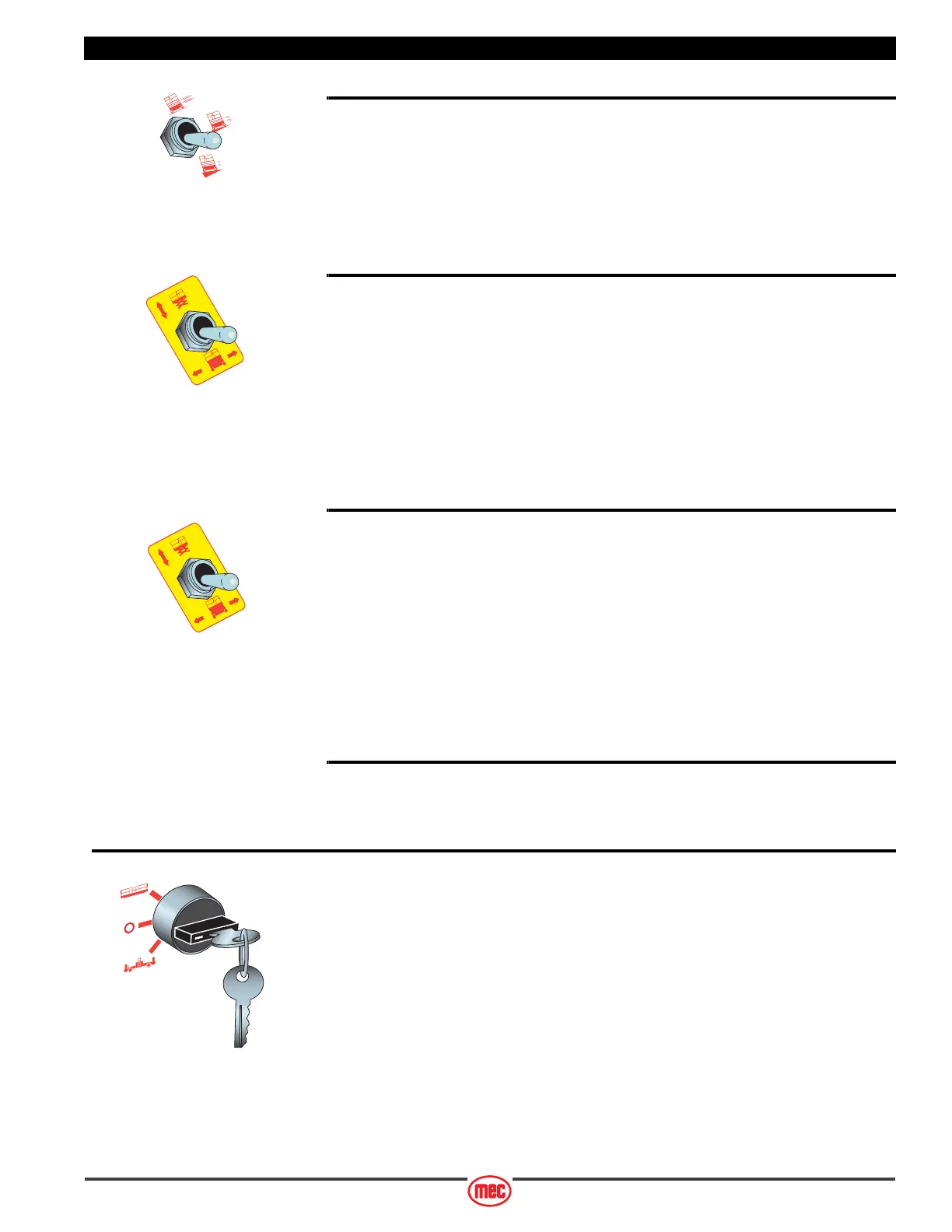

Drive speed is selectable until the platform is elevated above 10 Feet (3 m). When the platform
is elevated the machine defaults to creep speed and the switch is locked-out (non functioning).
• HIGH SPEED: allows higher drive speeds for travel across flat ground.
• MID-SPEED/MID-TORQUE: use for moderate slopes.
• HIGH TORQUE: use to drive up or down a steep slope or for careful positioning of
the machine.
Drive Forward
• Place the MODE SELECT switch in the DRIVE position.
• Squeeze the enable bar and move the control lever away from you.
Test Operation
• Drive speed is proportional and is dependent on the position of the control
lever.
• Releasing the enable bar or returning the control lever to the center position
will stop drive.
• Pressing the EMERGENCY STOP switch will stop drive.
Drive Reverse
• Place the MODE SELECT switch in the DRIVE position.
• Squeeze the enable bar and move the control lever toward you.
Test Operation
• Drive speed is proportional and is dependent on the position of the control
lever.
• Releasing the enable bar or returning the control lever to the center position
will stop drive.
• Pressing the EMERGENCY STOP switch will stop drive.
Brake
• For parking, the brake is automatically applied when the control lever is positioned in
the neutral (center) position.
Shutdown Procedure
• When finished with the machine, place the platform in the stowed position.
• Park the machine on a level surface.
• Turn the Selector Key Switch to the OFF position and remove the key to
prevent unauthorized use.
• Carefully exit the platform using a constant three (3) point dismount/grip.
• Always put the switch in OFF position when leaving the machine at the end
of the work day.
