Mec 4069 RT - Fold down Platform Railings

Page 26 93075
April 2014 4069 RT
4069 RT Operating Instructions & Function Tests

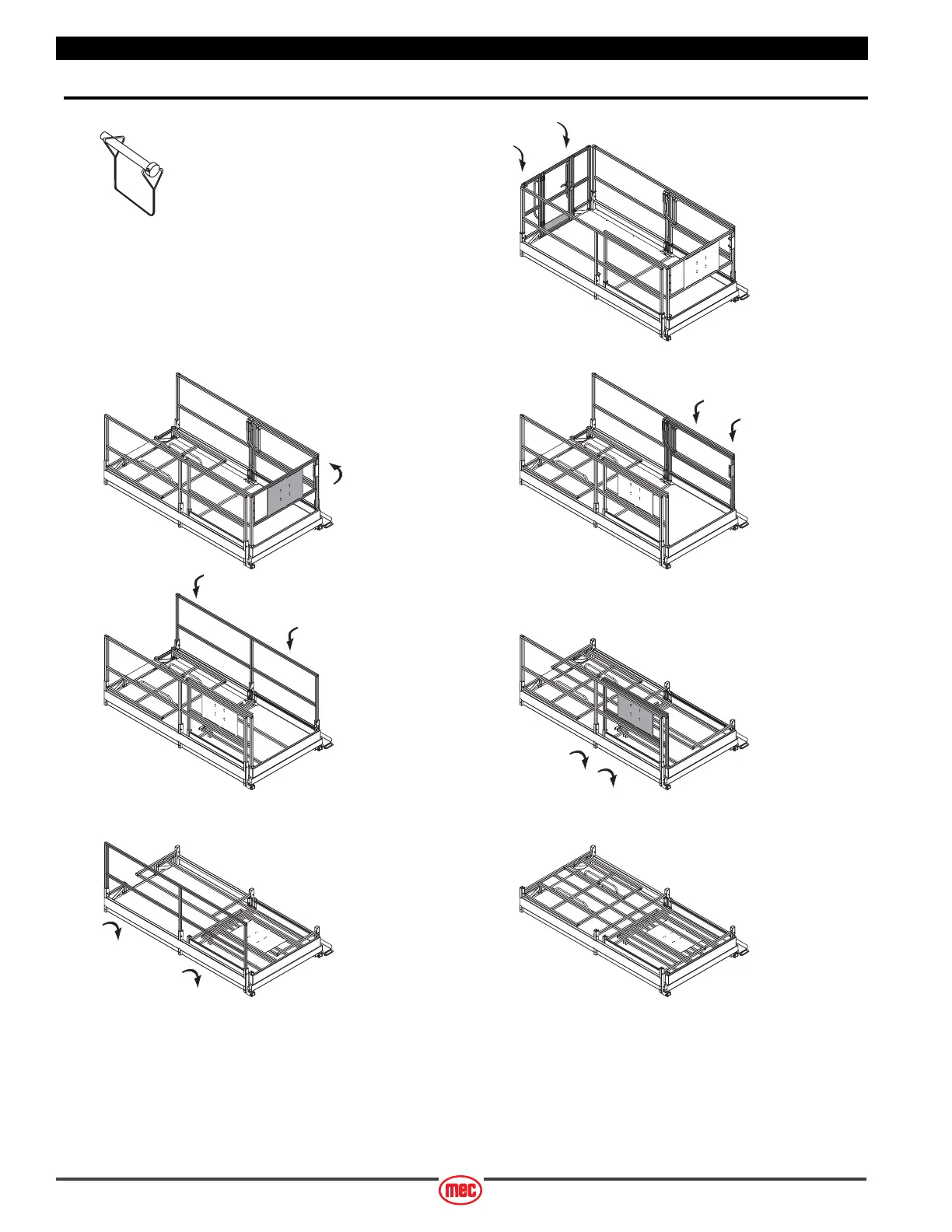

Fold Down Platform Railings
ART_4288
1
2
3
5
4
6
Spring Pin
18 places. Remove as needed
to perform the following steps.
Fold down the
Personnel Entry Gate
and Main Deck
rear rails.
Swing open the front
Extension Deck Rail.
Fold down the left-side
Extension Deck rail.
Fold down the right-side
Extension Deck rail.
Fold down the left-side
Main Deck rail.
Fold down the right-side
Main Deck rail.
Rail Fold-down
is complete
To return the machine to normal operation mode:
• Lift all rails into their upright position, then secure them with spring pins
• Check that the Personnel Entry Gate functions properly
• Position the platform control box on the front right rail of the machine.
DO NOT use the machine until all closures and guard rails are in position and properly secured.
