Page 22 93075
April 2014 4069 RT
4069 RT Operating Instructions & Function Tests

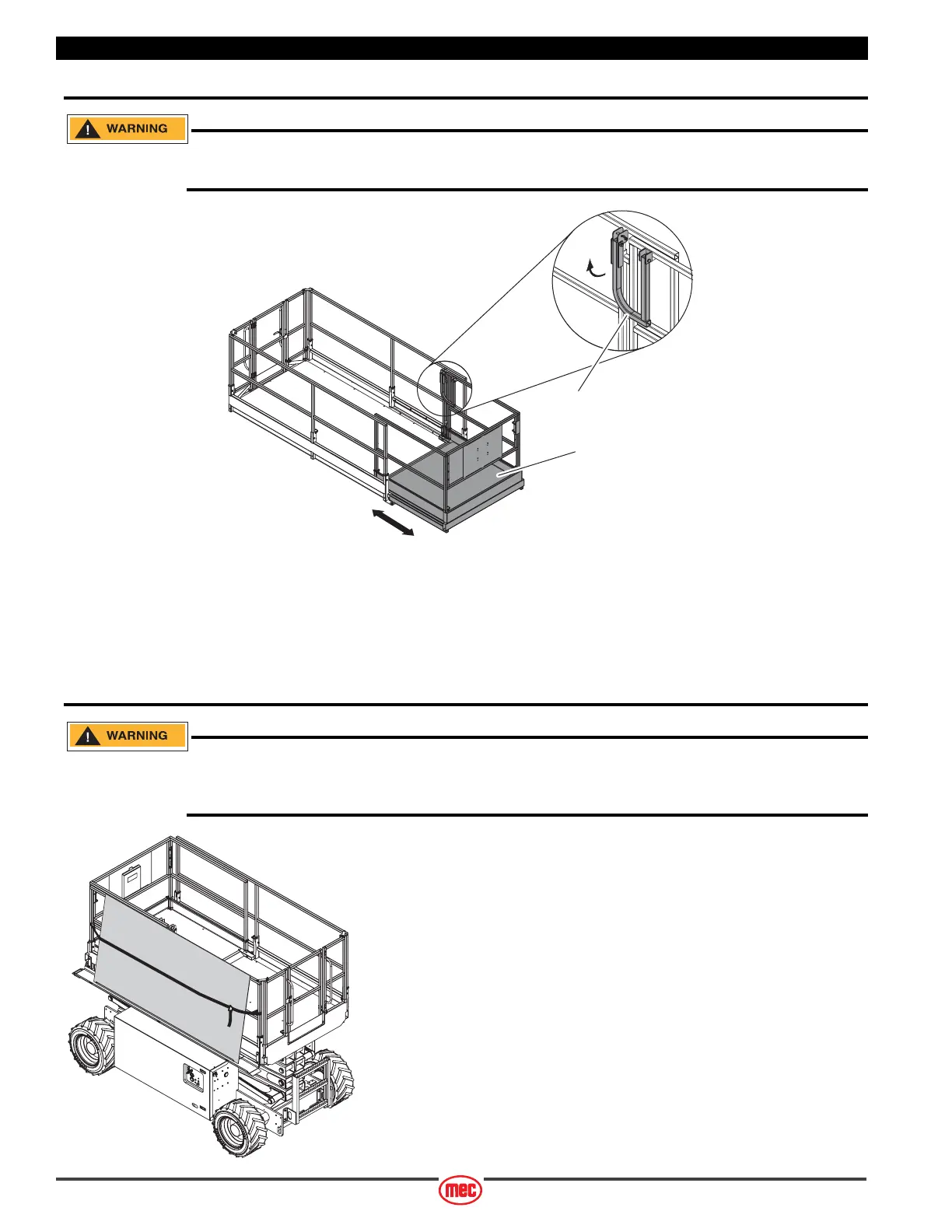

Deck Extension
CHECK FOR CLEARANCE UNDER DECK AREA BEFORE LOWERING PLATFORM IF THE ROLL-OUT DECK IS
EXTENDED.
• Swing up the handle at the rear of the extension deck to raise the spring-loaded pin
from the locked position.
• With handle raised, push or pull the deck to the desired extended length and release
the handle for the spring-loaded pin to lock into position.
• Extensions can be achieved in intervals of 1 inches (2.5 cm) throughout the entire
length of the roll-out extension deck.
Sheet Materials Rack
DO NOT exceed the Sheet Materials Rack capacity of 300 lbs (136 kg).
DO NOT allow any personnel to stand below the machine when the Sheet Materials Rack is in use.
Fasten the material securely with straps or optional material clamps until use.
This machine is equipped with a Sheet Materials Rack. Up to 300 lbs (136 kg)
of sheet material may be secured outside the platform to this rack. Maximum
size of material on the Sheet Material Rack is 4' x 12' (1.2m x 3.6 m) for outdoor
wind loading. All material should be centered on the Sheet Materials Rack.
Fasten the sheets to the platform with straps or optional material clamps until
ready to use. Attach the straps to the guardrail of the main platform only.
DO NOT fasten the straps to the deck extension guardrail.
Use caution when driving the machine or elevating the platform when the Sheet
Material Rack is loaded.
ART_4277
Deck
Extension
Deck Extension
Handle
ART_4278
