4069 RT Transport and Lifting Instructions
Lifting and Tie Down Instructions

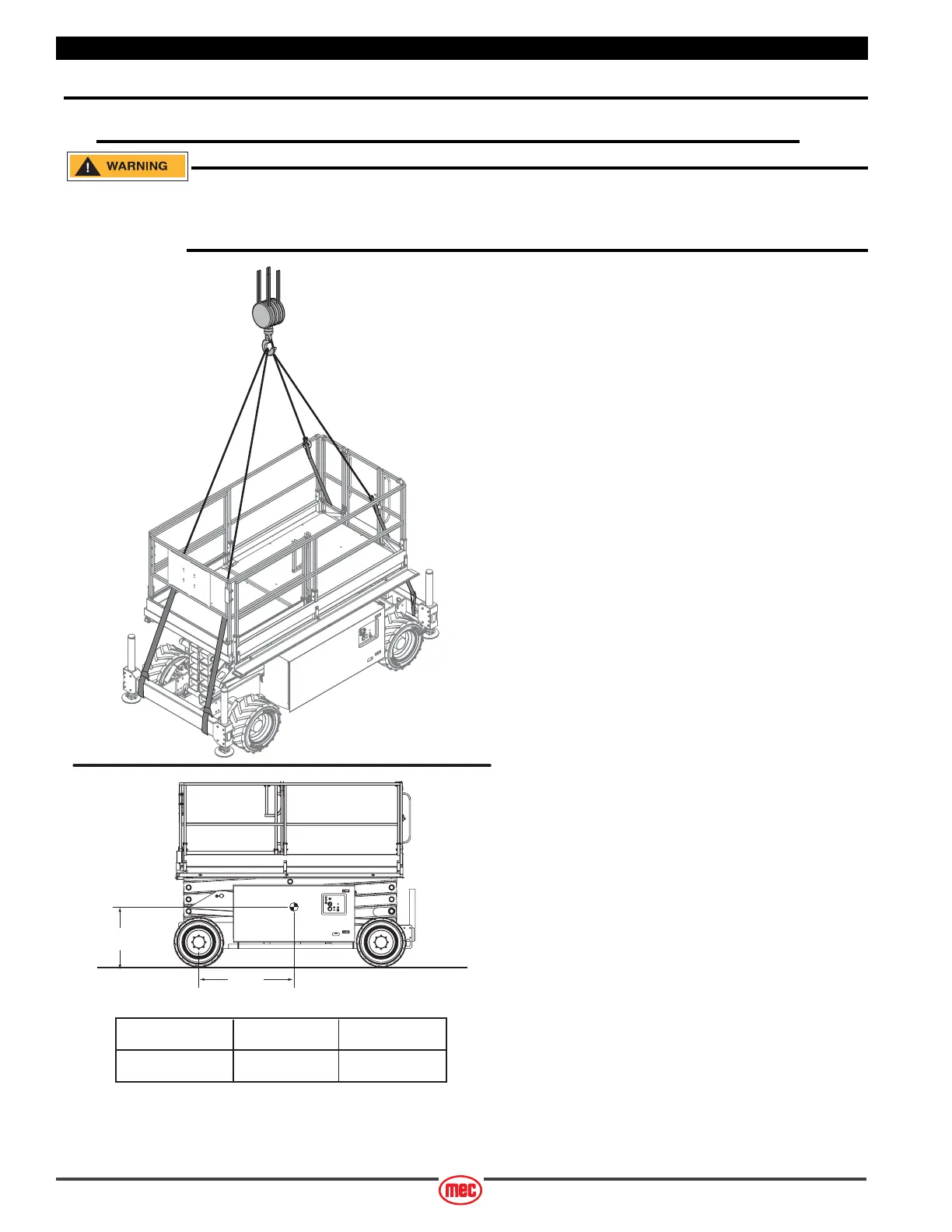

Lifting Instructions
Only qualified riggers should rig and lift the machine.
Ensure that the crane, loading surfaces, spreader bars, cables, chains and straps are of sufficient
capacity to withstand the machine weight. See the serial plate for the machine weight.
Fully lower the platform. Be sure the deck extension is
retracted and the module doors are closed and secure.
Remove all loose items from the machine.
Determine the center of gravity of the machine.
Attach rigging to the designated lift points only.
For machines NOT equipped with outriggers, use two
lengthwise spreader bars set to 128” length. Attach
rigging to the lift/tie-down points on the chassis. Route
the rigging to avoid damage to the guardrails.
Use only slings for outrigger-equipped machines.
Attach the slings to the outrigger weldments as close to
the outriggers as possible. Route the rigging as shown to
avoid damage to the guardrails.
ART_4286
X Axis
Y Axis
Center of Gravity X Axis Y Axis
4069 49.5” (126 cm) 25.5” (65 cm)
Adjust rigging to prevent damage to
the machine and to keep the machine level.
