Page 12 1330SE - Operator’s Manual
June 2023Section 5 - Controls & Components

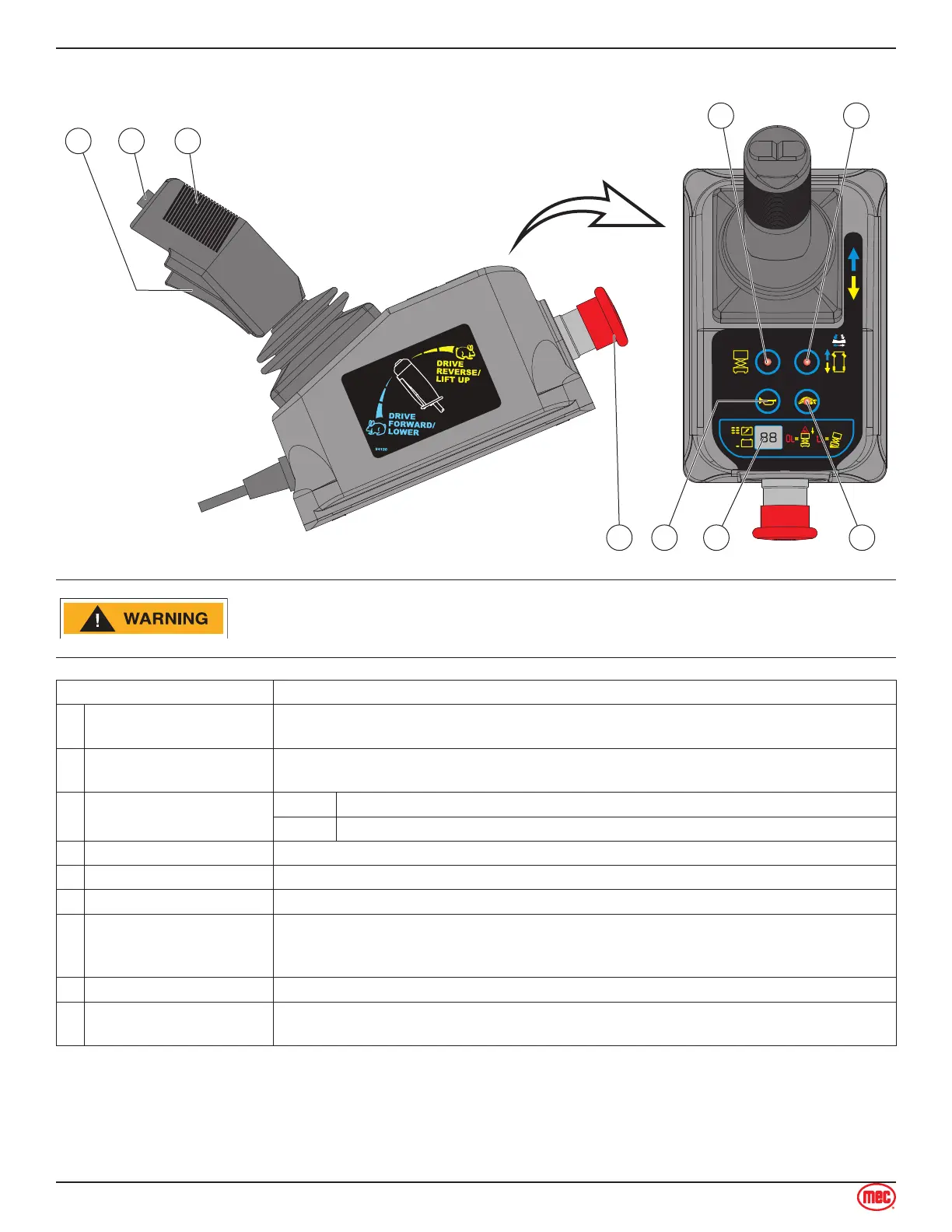

Upper Controls
ART_5011
1 2 3
5 6
7849
ALWAYS be aware of the machine’s position and of your surroundings
before activating any control function.
Control Description
1 Function Enable Switch
Squeeze the Function Enable Switch to enable LIFT & DRIVE & STEER functions
from Control Handle.
2 Steer Switch
Using your thumb press the thumb rocker switch in either direction to activate
STEER Left or Right function.
3 Control Handle
DRIVE Proportionally controls Forward and Reverse travel.
LIFT Proportionally controls Lift and Lower functions.
4 Horn Button Press to sound warning horn.
5 Lift Select Press this button to select the LIFT function.
6 Drive Select Press this button to select the DRIVE function.
7 Drive Speed Select
Press this button to activate the slow or fast drive function.
Light ON indicates Low Speed Drive is selected.
Light OFF indicates High Speed Drive is selected.
8 LED Display Indicates the state of battery charge and displays diagnostic codes when necessary.
9 Emergency Stop Switch
Press the EMERGENCY STOP switch at any time to stop all machine functions.
Turn the button clockwise to the on position to operate the machine.
